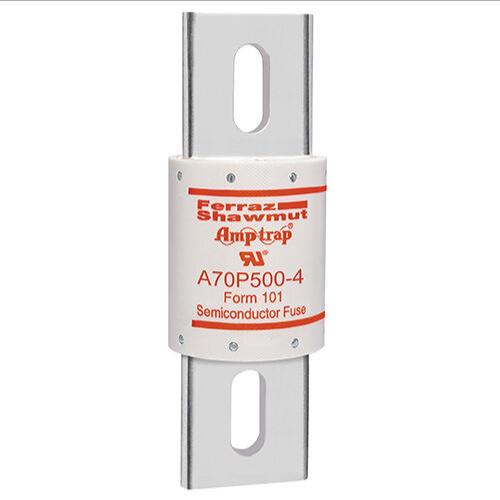

MERSEN FERRAZ A70P500-4 Semiconductor, High Speed, 700V, 500A, aR Class
Item: CH4VUG
Model: A70P500-4
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Max I.r./breaking Capacity I1 | 65 kA |
|---|---|
| Ac Voltage | 700V AC |
| Ac/dc | AC/DC |
| Amps | 500A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Diameter | 60.5 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
|---|---|
| Length | 180.1 mm |
| Mounting | Bolted |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 700V |
| Rated Voltage Dc Ul | 650V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Product Details
Semiconductor Fuse
Shipping Information
| height | 6.05 |
|---|---|
| length | 22.22 |
| width | 6.35 |
| country of origin | MX |
|---|---|
| weight | 0.589500 |
