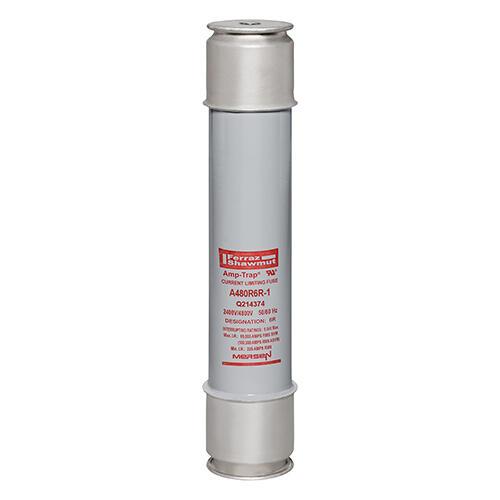

MERSEN FERRAZ A480R6R-1 Fuse, Medium Voltage, 4800V, R Rated

Item: CH4UNV
Model: A480R6R-1
13 In Stock

Ships within 2 days via

£1761.14
5.00% off
£1673.09/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Max I.r./breaking Capacity I1 65 kA
Ac Voltage 4800V AC
Ac/dc AC
Amps 170A
Body Material Epoxy
Body Style Cylindrical
Body/insulating Material Epoxy
Class R-Rated
Connection/terminal Material Copper
Connection/terminal Type Ferrule
Dc Voltage Rating Not Rated
Design Details 6R
Diameter 76.2 mm
Element Single
Equivalent Brand And Series Bussmann Jcl, Mersen A480R
Equivalent Series A480R, Jcl
Finish Silver Plated
Fits Fuse Block Style Nonrejection
Frequency 50/60 Hz
Fuse Size 15 7/8" x 3"
Height 76.2 mm
Indication System Yes
Indication System Type Visual Indicator
Interrupt Rating 50 kA (Sym.) @ 4800V AC
Length 403.4 mm
Mounting Clip
Product Group Medium Voltage IEEE Fuses
Rated Voltage Ac Ul 4800V
Rohs Compliant Yes
Series A480R Series
Speed Time Delay
Speed Characteristic R Rated
Visual Indication Indicating
Width 76.2 mm
standard ANSI C37.46-2000, UL RECOGNIZED, UR

Product Details

Medium Voltage Fuse

Shipping Information

height 10.16
length 45.08
width 10.16
country of origin MX
weight 4.951800
