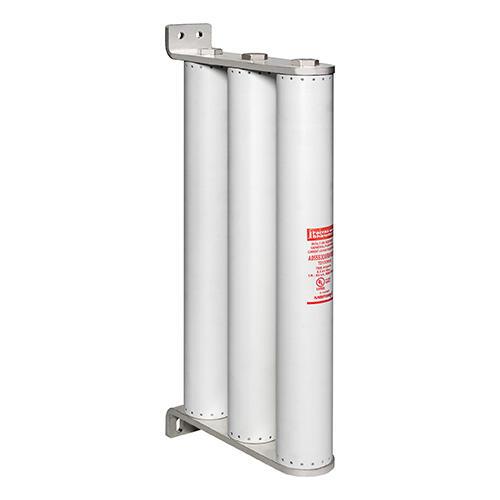

MERSEN FERRAZ A055B3D0R0-900E Fuse, Medium Voltage, 5500V, 900A, E Rated, Bolt On Mount Striker | CH4TFL

MERSEN FERRAZ A055B3D0R0-900E Fuse, Medium Voltage, 5500V, 900A, E Rated, Bolt On Mount Striker

Item: CH4TFL

Model: A055B3D0R0-900E

In Stock

Get it by Friday, Apr 17

£10771.2/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Ac Max I.r./breaking Capacity I1	63 kA
Ac Voltage	5500V AC
Ac/dc	AC
Amps	900A
Body Material	Polytube
Body/insulating Material	Polytube
Connection/terminal Material	Copper
Connection/terminal Type	Bolted
Finish	Silver Plated
Frequency	50/60 Hz

Height	295.1 mm
Indication System	Yes
Indication System Type	Visual Indicator
Length	637.8 mm
Mounting	Bolted
Product Datasheet	mersen-ferraz-9f62kcb500.pdf
Product Group	Medium Voltage IEEE Fuses
Rated Voltage Ac Ul	5500V
Speed Characteristic	E Rated
Width	76.2 mm

Product Details

Shipping Information

Height	7.62
Length	67.31

Width	31.75
Weight	19.800000

Related Products

A

B

Style	Model	Amps	Body Material	Ac Voltage	Height	Dc Voltage Rating	Visual Indication	Body Style	Mounting	Price (ex. VAT)	Cart
A	9F62KCB500	500A	Epoxy	5500V AC	346.7 mm	-	-	-	Bolted	10,528.67
A	9F62KCB600	600A	Epoxy	5500V AC	346.7 mm	-	-	-	Bolted	10,528.67
A	9F62KCB700	700A	Epoxy	5500V AC	346.7 mm	-	-	-	Bolted	12,013.33
A	9F62KCB800	800A	Epoxy	5500V AC	346.7 mm	-	-	-	Bolted	12,013.33
A	9F62KCB900	900A	Epoxy	5500V AC	346.7 mm	-	-	-	Bolted	12,614.00
A	A050B4D0R0-1200E	1200A	Polytube	5000V AC	193.8 mm	-	-	-	Bolted	13,277.00
B	A055B1DAR0-100E	100A	GMG	5500V AC	-	-	-	-	Bolted	1,569.67
