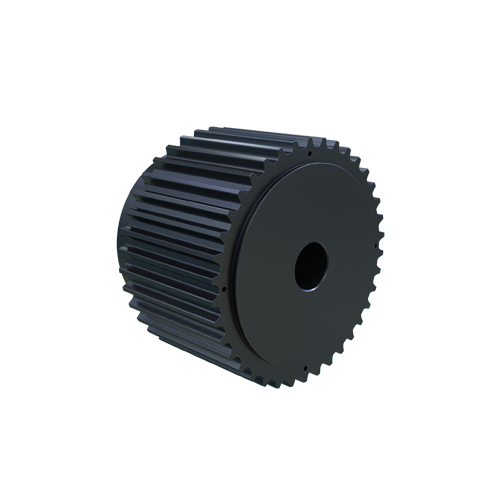

MARTIN SPROCKET W3814M90-MPB Sprocket, Reborable, 3.543 Inch Belt Width, 38 Teeth, 6.667 Inch Pitch Dia., Steel
Item: AX4CVZ
Model: W3814M90-MPB
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£1091.93/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/4" to 3 1/4" |
|---|---|
| Bore Type | Minimum Plain |
| Face Width | 4.055" |
| Flange Dia. | 7.156" |
| Hub Diameter | 5.172" |
| Hub Projection | 1" |
| Length | 5.055" |
| Material | Steel |
| No. Of Grooves | 38 |
|---|---|
| No. Of Teeth | 38 |
| O.d. | 6.5615" |
| Pitch | 0.55118" |
| Pitch Dia. | 6.667" |
| Suitable For Use With | Hawk PD, Panter, QT Power Chain Belts |
| Type | Solid Type MPBF-1 |
Product Details
Sprocket
Shipping Information
| country of origin | US |
|---|
| weight | 15.975000 |
|---|
Related Products
| Style | Model | Pitch Dia. | Bore Type | Face Width | Pitch | Type | Bushing Type | Flange Dia. | Hub Projection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | W3014M20-SK | - | High hp Bushed | 1.22" | 14 mm | Solid Type DF-1 | SK | 6.13" | - | 357.15 | |
| B | W3014M42-SK | - | QD Bushed | 2.087" | 14 mm | Solid Type DF-1 | SK | 6.13" | - | 448.78 | |
| B | W4014M42-SF | - | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | SF | - | - | 650.35 | |
| C | W4814M42-E | - | High hp Bushed | 2.087" | 14 mm | Solid Type DF-1 | E | 8.937" | - | 683.27 | |
| B | W6014M42-E | 10.527" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | E | 11.06" | - | 942.14 | |
| B | W4414M42-E | 7 18/25" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | E | 8.22" | - | 659.50 | |
| D | W6014M65-F | 10.527" | QD Bushed | 3.032" | 0.55118" | Solid Type CF-1 | F | 11.06" | - | 1,201.29 |
