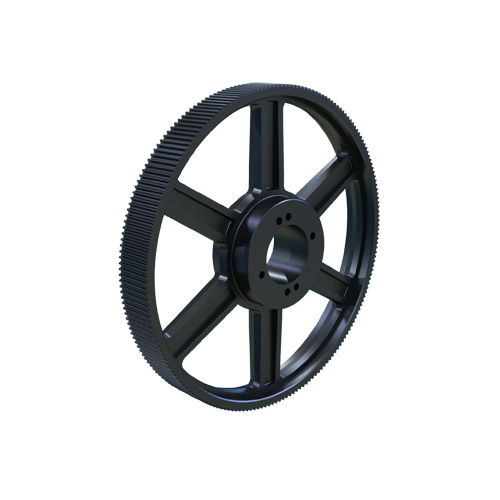

MARTIN SPROCKET W19214M90-M Sprocket, M Bushing, 5.5 Inch Max Bore, 192 Teeth, 33.686 Inch Pitch Dia., Cast Iron
Item: AM7KRB
Model: W19214M90-M
In Stock
Get it by Wednesday, Apr 15
£5374.03/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 15/16" to 5 1/2" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | M |
| Face Width | 4.055" |
| Length | 6 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 192 |
| No. Of Teeth | 192 |
|---|---|
| O.d. | 33.567" |
| Pitch | 0.55118" |
| Pitch Dia. | 33.686" |
| Suitable For Use With | Hawk PD, Panter, QT Power Chain Belts |
| Type | Arms Type C-3 |
Product Details
Sprocket
Shipping Information
| country of origin | US |
|---|
| weight | 120.784500 |
|---|
Related Products
| Style | Model | Pitch Dia. | Bore Type | Face Width | Pitch | Type | Bushing Type | Flange Dia. | Hub Projection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | W3014M20-SK | - | High hp Bushed | 1.22" | 14 mm | Solid Type DF-1 | SK | 6.13" | - | 303.58 | |
| B | W3014M42-SK | - | QD Bushed | 2.087" | 14 mm | Solid Type DF-1 | SK | 6.13" | - | 381.46 | |
| B | W4014M42-SF | - | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | SF | - | - | 552.80 | |
| C | W4814M42-E | - | High hp Bushed | 2.087" | 14 mm | Solid Type DF-1 | E | 8.937" | - | 580.78 | |
| B | W6014M42-E | 10.527" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | E | 11.06" | - | 800.82 | |
| B | W4414M42-E | 7 18/25" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | E | 8.22" | - | 560.58 | |
| D | W6014M65-F | 10.527" | QD Bushed | 3.032" | 0.55118" | Solid Type CF-1 | F | 11.06" | - | 1,021.10 |
