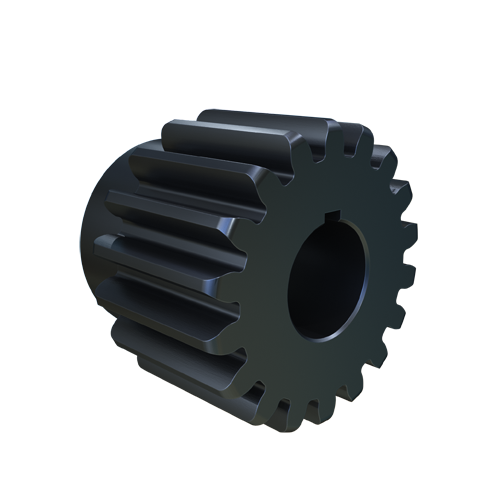

MARTIN SPROCKET TS618BS 1 1/4 Spur Gear, 6 DP, 20 Deg., 3 Inch Pitch Dia., 1.5 Inch Bore, Bored Size, Steel
Item: AZ4ZCQ
Model: TS618BS 1 1/4
29 In Stock
Ships within 2 days via
£322.19/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/4" |
|---|---|
| Diametral Pitch | 6 |
| Face Width | 2" |
| Hub Diameter | 2 1/2" |
| Hub Projection | 7/8" |
| Hub Type | B |
| Keyway Size | 1/4" x 1/8" |
| Length | 2 7/8" |
| Material | Steel |
|---|---|
| No. Of Teeth | 18 |
| Number Of Teeth | 18 |
| Outside Dia. | 3.333" |
| Outside Diameter | 3.333" |
| Pitch Diameter | 3" |
| Pressure Angle | 20° |
| Type | Bored to Size External Tooth |
Product Details
Spur Gear
Shipping Information
| height | 7.32 |
|---|---|
| length | 8.46 |
| width | 8.46 |
| country of origin | US |
|---|---|
| weight | 1.840500 |
Related Products
| Style | Model | Pressure Angle | Face Width | Outside Dia. | Number Of Teeth | Pitch Dia. | Material | Type | Diametral Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S614BS 1 | 14.5° | 1 1/2" | 2.667" | 14 | 2.333" | Steel | Bored to Size External Tooth | 6 | 195.78 | |
| B | S615BS 1 1/4 | 14.5° | 1 1/2" | 2.833" | 15 | 2 1/2" | Cast Iron | Bored to Size External Tooth | 6 | 219.88 | |
| C | S616BS 1 1/8 | 14.5° | 1 1/2" | 3" | 16 | 2.667" | Cast Iron | Bored to Size External Tooth | 6 | 244.57 | |
| D | S611BS 1 | 14.5° | 1 1/2" | 2.333" | - | 2" | Steel | Bored to Size External Tooth | 6 | 172.10 | |
| E | S612BS 1 | 14.5° | 1 1/2" | 2.333" | 12 | 2" | Steel | Bored to Size External Tooth | 6 | 172.10 | |
| F | S615BS 1 | 14.5° | 1 1/2" | 2.833" | 15 | 2 1/2" | Steel | Bored to Size External Tooth | 6 | 219.88 | |
| C | S615BS 1 1/8 | 14.5° | 1 1/2" | 2.833" | 15 | 2 1/2" | Cast Iron | Bored to Size External Tooth | 6 | 219.88 |
