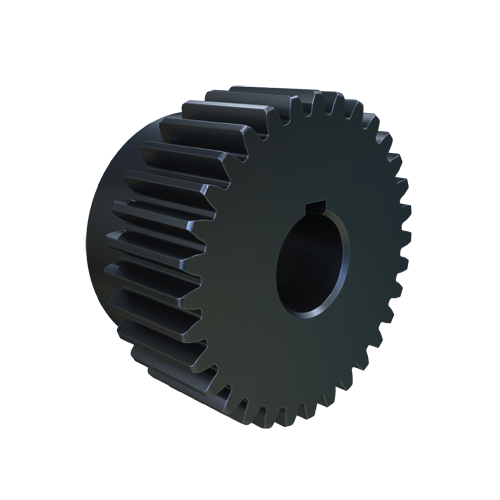

MARTIN SPROCKET TS1632BS 5/8 Spur Gear, 20 Deg., 0.625 Inch Bore, 2 Inch Pitch Dia., Bore To Size, Steel
Item: AL4NCF
Model: TS1632BS 5/8
11 In Stock
Ships within 2 days via
£146.38/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bore Diameter | 5/8" |
|---|---|
| Diametral Pitch | 16 |
| Face Width | 3/4" |
| Hub Diameter | 1 3/4" |
| Hub Projection | 1/2" |
| Hub Type | B |
| Keyway Size | 3/16" x 3/32" |
| Length | 1 1/4" |
| Material | Steel |
|---|---|
| No. Of Teeth | 32 |
| Number Of Teeth | 32 |
| Outside Dia. | 2 1/8" |
| Outside Diameter | 2 1/8" |
| Pitch Diameter | 2" |
| Pressure Angle | 20° |
| Type | Bored to Size External Tooth |
Product Details
Shipping Information
| Height | 3.18 |
|---|---|
| Length | 5.41 |
| Width | 5.41 |
| Country Of Origin | US |
|---|---|
| Weight | 0.396000 |
