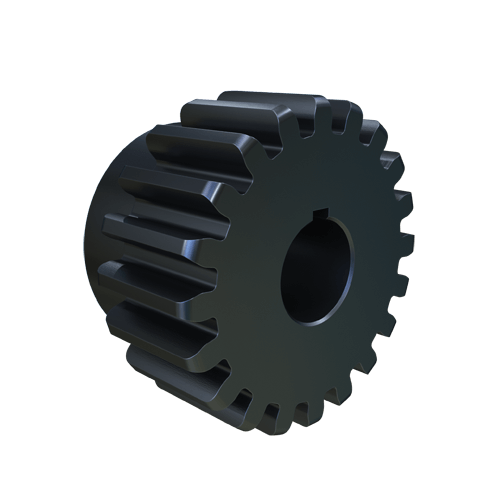

MARTIN SPROCKET S620BS 1 1/8 Spur Gear, 6 DP, 3.333 Inch Pitch Dia., 1.125 Inch Bore, Bore To Size, Steel
Item: AL4MZV
Model: S620BS 1 1/8
16 In Stock
Ships within 2 days via
£352.79/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/8" |
|---|---|
| Bore Type | Bored To Size |
| Diametral Pitch | 6 |
| Face Width | 1 1/2" |
| Finished Bore Size | 1 1/8" |
| Hub Diameter | 2.844" |
| Hub Outside Dia. | 2.844" |
| Hub Projection | 7/8" |
| Hub Type | B |
| Keyway Size | 1/4 x 1/8" |
| Length Thru Bore | 2 3/8" |
| Material | Steel |
|---|---|
| Max. Bore Size | 1 1/8" |
| Min. Bore Size | 1 1/8" |
| No. Of Teeth | 20 |
| O.d. | 3.667" |
| Outside Dia. | 3.667" |
| Pitch Dia. | 3.33" , 3.333" |
| Pressure Angle | 14.5° |
| Set Screw Size | 5/16"-18 |
| Type | Bored to Size External Tooth |
Product Details
Spur Gear
Shipping Information
| height | 6.03 |
|---|---|
| length | 9.32 |
| width | 9.32 |
| country of origin | US |
|---|---|
| weight | 2.020500 |
