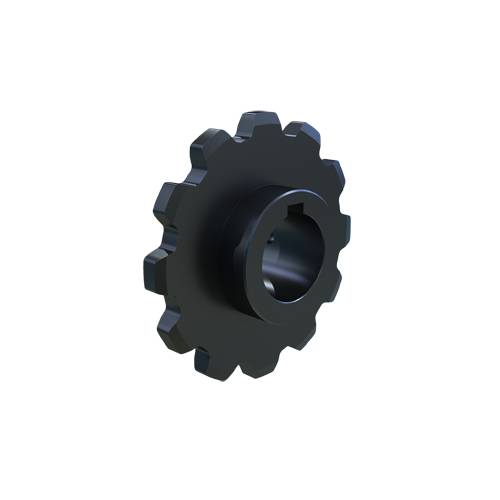

MARTIN SPROCKET 78CS12 3 7/16 Sprocket, Bore To Size, 3.438 Inch Bore Size, 12 Teeth, 10.080 Inch Pitch Dia., Steel
Item: BA7AQA
Model: 78CS12 3 7/16
In Stock
Get it by Thursday, Apr 16
£699.17/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 3 7/16" |
|---|---|
| Chain Size | #78 |
| Hub Diameter | 5 1/4" |
| Keyway Size | 7/8" x 7/16" |
| Length Through Bore | 3 7/8" |
| Material | Steel |
| No. Of Teeth | 12 |
| Number Of Teeth | 12 |
|---|---|
| Outside Diameter | 10 3/4" |
| Pitch | 2.609" |
| Pitch Dia. | 10 2/25" |
| Screw Size | 3/4"-10 x 3/4" |
| Type | Type C Bored to Size |
Product Details
Shipping Information
| country of origin | US |
|---|
| weight | 12.226500 |
|---|
Related Products
| Style | Model | Pitch Dia. | Number Of Teeth | Length Through Bore | Outside Dia. | Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | 78CS8 2 | 6.83" | - | 3 1/8" | - | 2.609" | 398.85 | |
| B | 78CS12 2 | 10 2/25" | 12 | 3 7/8" | - | 2.609" | 582.64 | |
| C | 78CS11 2 | 9.26" | - | 3 7/8" | - | 2.609" | 551.37 | |
| D | 78CS10 2 3/16 | 8 11/25" | - | 3 7/8" | - | 2.609" | 522.10 | |
| E | 78CS10 3 7/16 | 8 11/25" | - | 3 7/8" | - | 2.609" | 522.10 | |
| F | 78CS14 2 7/16 | 11 18/25" | 14 | 4 1/2" | - | 2.609" | 666.45 | |
| G | 78CS9 2 7/16 | 7.63" | - | 3 7/8" | - | 2.609" | 495.72 |
