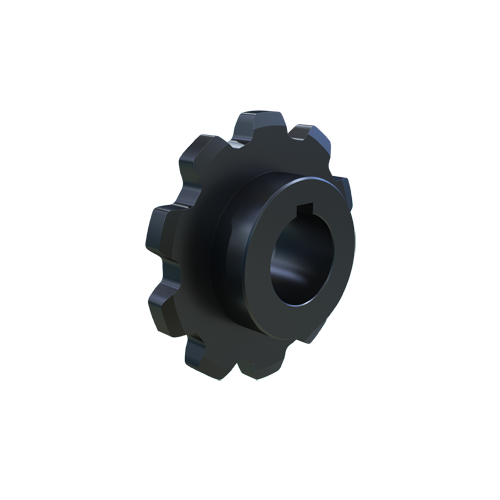

MARTIN SPROCKET 78CS10 2 15/16 Sprocket, Bore To Size, 2.938 Inch Bore Size, 10 Teeth, 8.440 Inch Pitch Dia., Steel
Item: BA3EEL
Model: 78CS10 2 15/16
In Stock
Get it by Thursday, Apr 16
£626.52/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 2 15/16" |
|---|---|
| Chain Size | 78 |
| Hub Diameter | 5 1/4" |
| Keyway Size | 3/4" x 3/8" |
| Length Through Bore | 3 7/8" |
| Material | Steel |
| No. Of Teeth | 10 |
|---|---|
| Outside Diameter | 9.03" |
| Pitch | 2.609" |
| Pitch Dia. | 8 11/25" |
| Screw Size | 5/8"-11 x 5/8" |
| Type | Bored to Size Solid Hub Type C |
Product Details
Shipping Information
| Height | 9.86 |
|---|---|
| Length | 22.94 |
| Width | 22.94 |
| Country Of Origin | US |
|---|---|
| Weight | 10.845000 |
