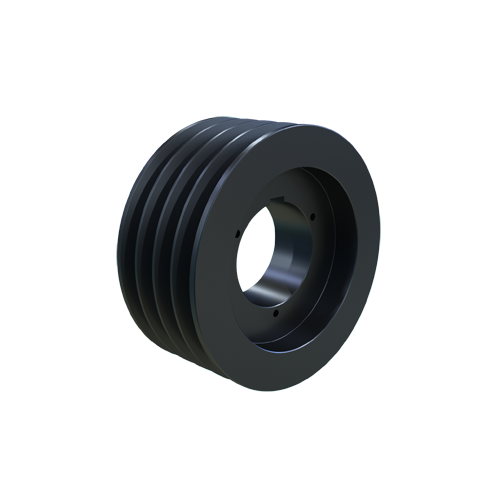

MARTIN SPROCKET 4 C 94 R Sheave, 4.250 Inch Face Width, 9.8 Inch Outside Dia., 9.4 Inch Pitch Dia., Cast Iron
Item: BA4GFT
Model: 4 C 94 R
In Stock
Get it by Friday, Apr 17
£781.58/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Cross Section | C |
|---|---|
| Bushing Size | R1 |
| Bushing Style | Mst |
| Face Width | 4 1/4" |
| Material | Cast Iron |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
|---|---|
| No. Of Grooves | 4 |
| Outside Dia. | 9 4/5" |
| Pitch Dia. | 9 2/5" |
| Sheave Construction | Web |
Product Details
Shipping Information
| Height | 10.8 |
|---|---|
| Length | 24.89 |
| Width | 24.89 |
| Country Of Origin | US |
|---|---|
| Weight | 14.220000 |
Related Products
| Style | Model | Outside Dia. | Pitch Dia. | Type | Face Width | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | 4 C 100 R | 10 2/5" | 10" | - | 4 1/4" | Cast Iron | 676.65 | |
| B | 4 C 102 R | 10 3/5" | 10 1/5" | - | 4 1/4" | Cast Iron | 704.76 | |
| C | 4 C 120 R | 12 2/5" | 12" | - | 4 1/4" | Cast Iron | 834.64 | |
| D | 4 C 130 R | 13 2/5" | 13" | - | 4 1/4" | Cast Iron | 929.64 | |
| E | 4 C 150 R | 15 2/5" | 15" | - | 4 1/4" | Cast Iron | 1,075.31 | |
| D | 4 C 180 R | 18 2/5" | 18" | - | 4 1/4" | Cast Iron | 1,177.36 | |
| D | 4 C 200 R | 20.4" | 20" | - | 4 1/4" | Cast Iron | 1,230.09 |
