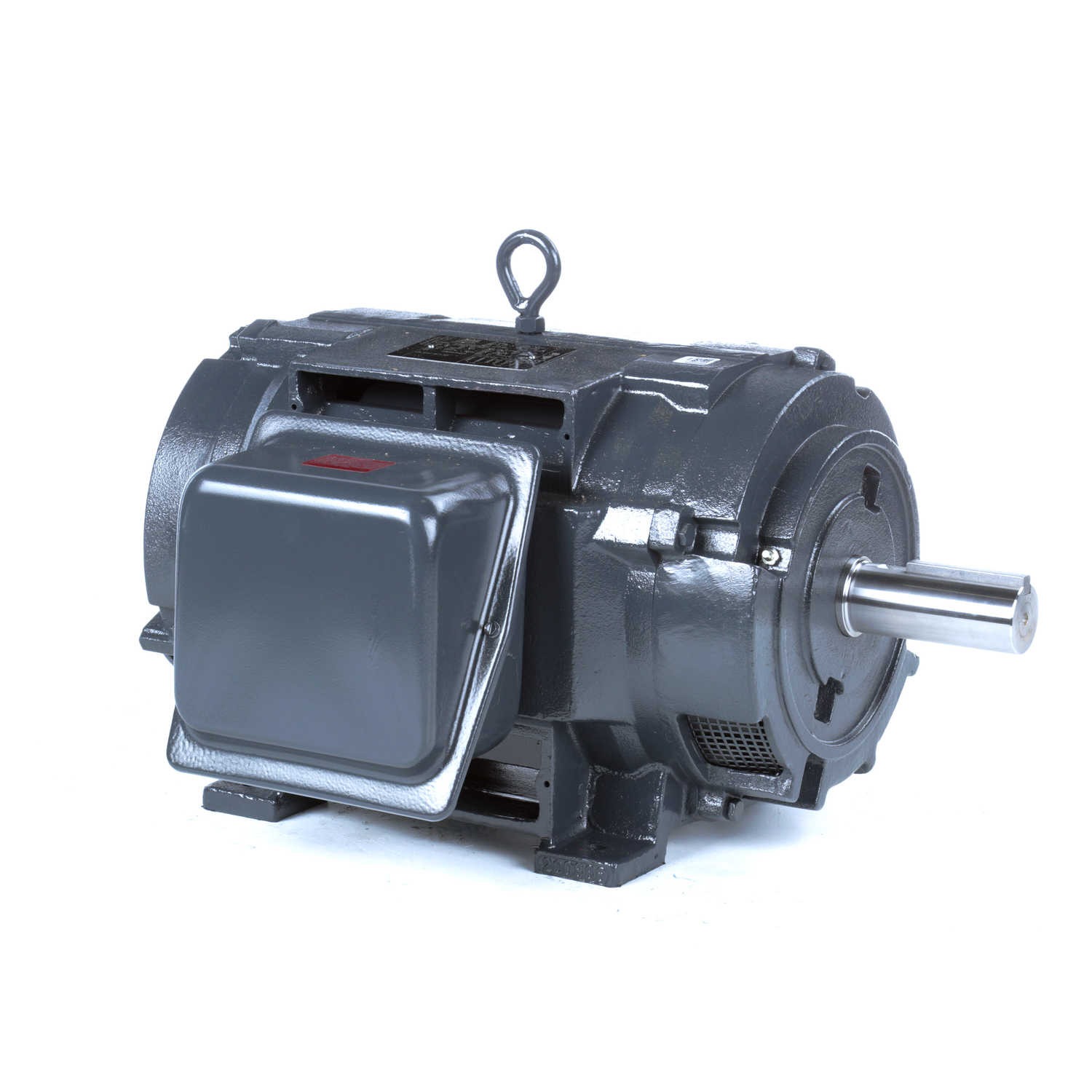

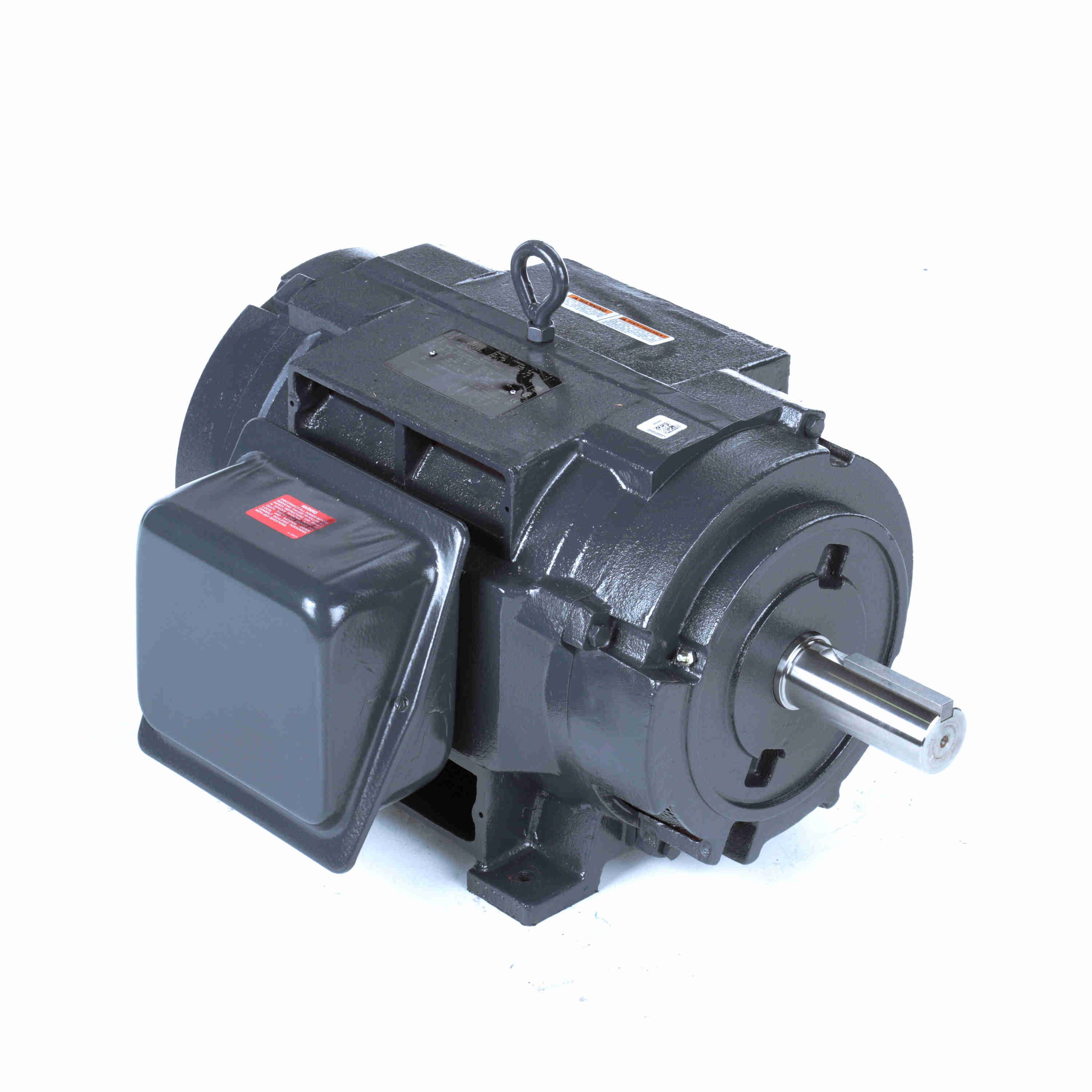

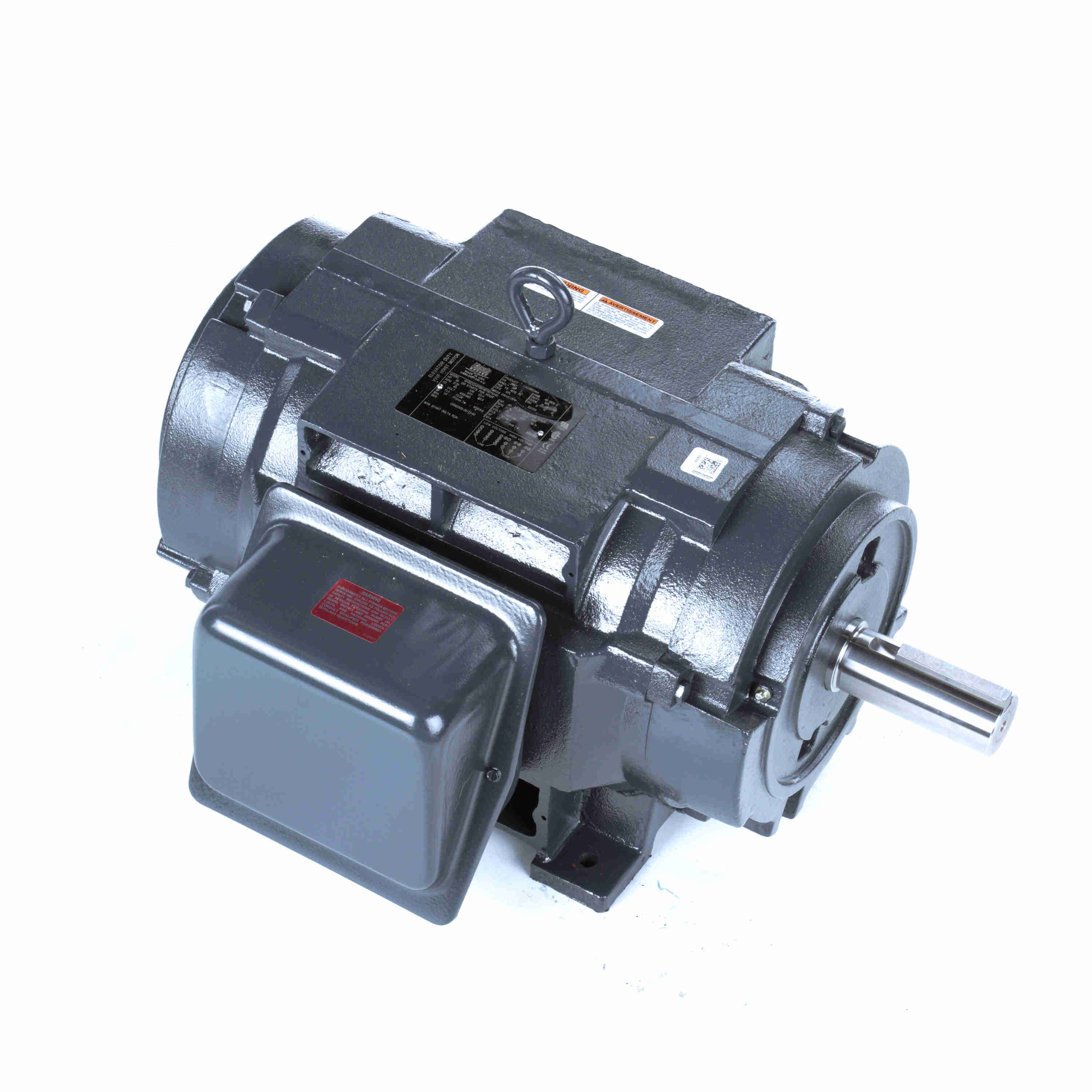

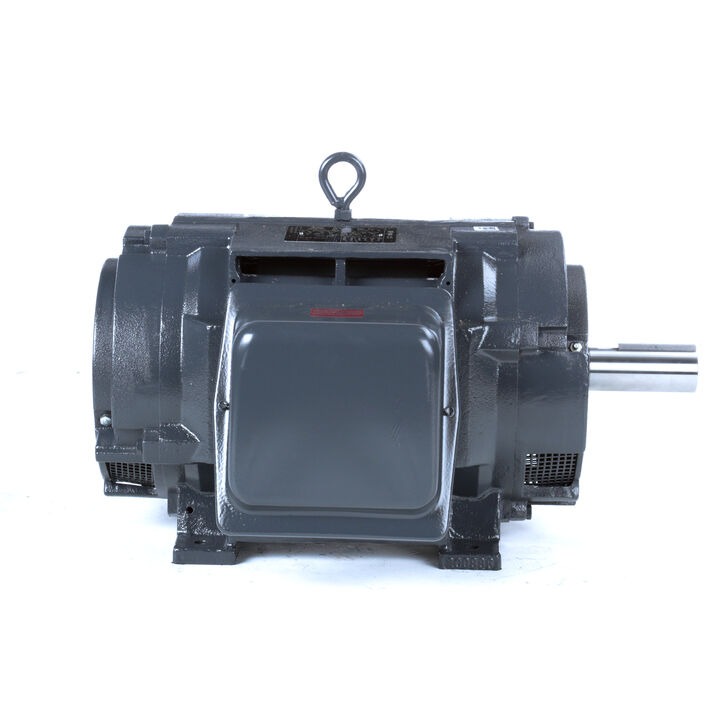

MARATHON MOTORS LM29853 CCD4P30/40T61YEH2 Elevator Duty Motor, 30/40 HP, 3 Ph, 60 Hz, 230/460 and 230/460V, 1800 and 1800 RPM

Item: AJ2WGZ
Model: LM29853
In Stock

Get it by Wednesday, Apr 15

£3587.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Definite Purpose Motor
Ambient Temp. 40°C
Amps 72/36/97/48.5A
Amps Rating 36/72A
Application Type Elevator Motors, Hydraulic Pump Motors
Assembly/box Mounting F1, F2 Capable
Code D
Design Code Inv
Drive End Bearing Size 311
Drive End Bearing Type Ball
Efficiency 92.4%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type ODP
Frame 286T
Frame Length 14 1/4"
Frame Material Cast Iron
Frame Size 286T
Frequency 60 Hz
Full Load Amps 72/36A
Height 16.31"
Hp 30 hp
Insulation Class Class F
Ip Code IP12
Kva Code D
Kw 22.4 kW
Length 24.99"
Material Cast Iron
Motor Enclosure Design Dripproof
Motor Orientation Horizontal
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1800 RPM
Nema Design D
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 210
Opp. Drive End Bearing Type Ball
Output Kw 22.4/30 kW
Packaging B
Phase 3
Power 22.4 kW
Power Factor 84
Resistance Main 0.295 ohms
Rotation Type Reversible
Rpm 1700-1800 RPM
Service Factor 1
Shaft Dia. 1 7/8"
Shaft Length 4.63"
Shaft Type T
Standard Logo CE.png, CSA.png, UL.png
Starting Method Wye Start Delta Run
Thermal Protection No Protection
Torque Rating 89 lbs.-ft.
Type TDS
Variable Torque Speed Range 10
Voltage 230/460V AC
Voltage Rating 230/460V AC
Width 18.15"

Product Details

    • Bearing OPE: 210
    • CC Number: EXEMPT
    • Bearing PE: 311
    • Winding: K2564229
    • GROUP: 2
    • Paint: GRAY - LINCOLN
    • Eff 100%: 92.4 / 91.7

Shipping Information

height 50.62
length 71.12
width 55.88
country of origin US
weight 165.150000
