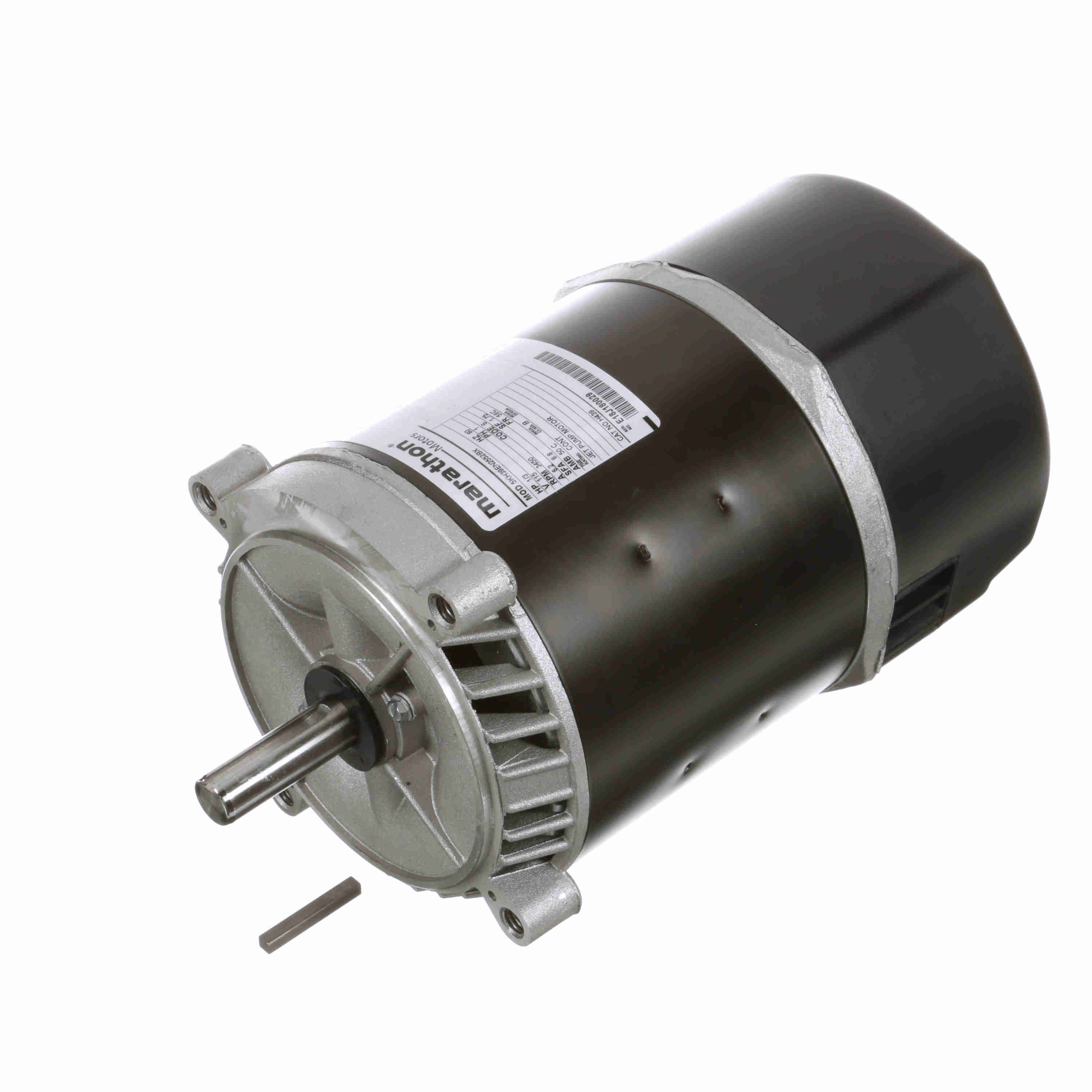

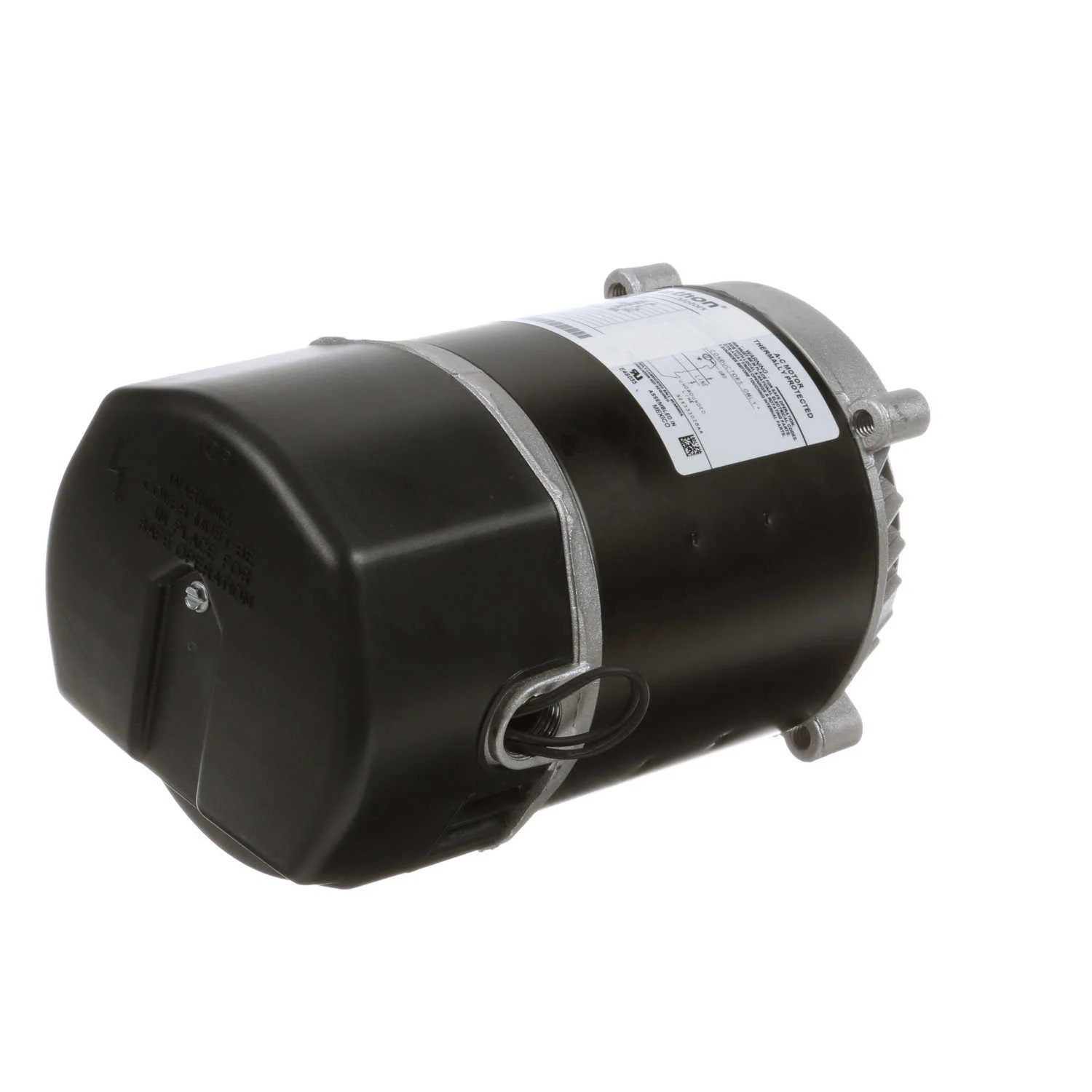

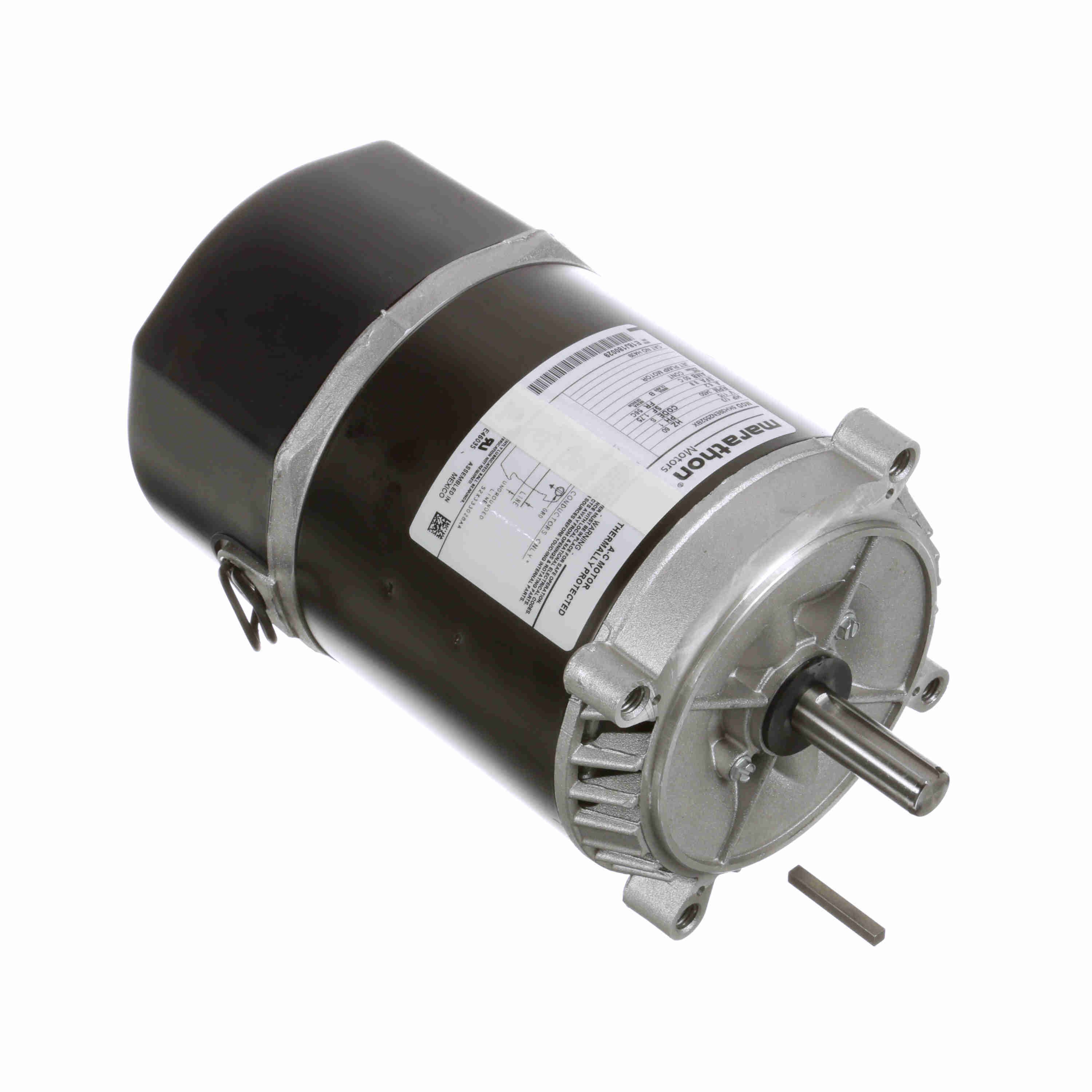

| Item | Jet Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 4 1/2" |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.2A |
| Hazardous Location Class | 2C |
| Hp | 1/3 hp |
| Ins. Class | Class B |
| Lead Length | 4", 6" |
| Length Less Shaft | 9 1/8" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.75 |
|---|---|
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| Nominal Efficiency | 54.5% |
| Number Of Speeds | 1 |
| Orientation | Horizontal, Vertical |
| Overall Length | 11" |
| Phase | 1 |
| Service Factor | 1.75 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Standard Logo | csa.png,ul.png |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Voltage | 115V AC |
| standard | CE MARK, CSA CERTIFIED, UL RECOGNIZED |
| Height | 19.05 |
|---|---|
| Length | 44.93 |
| Width | 19.53 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight | 8.100000 |
