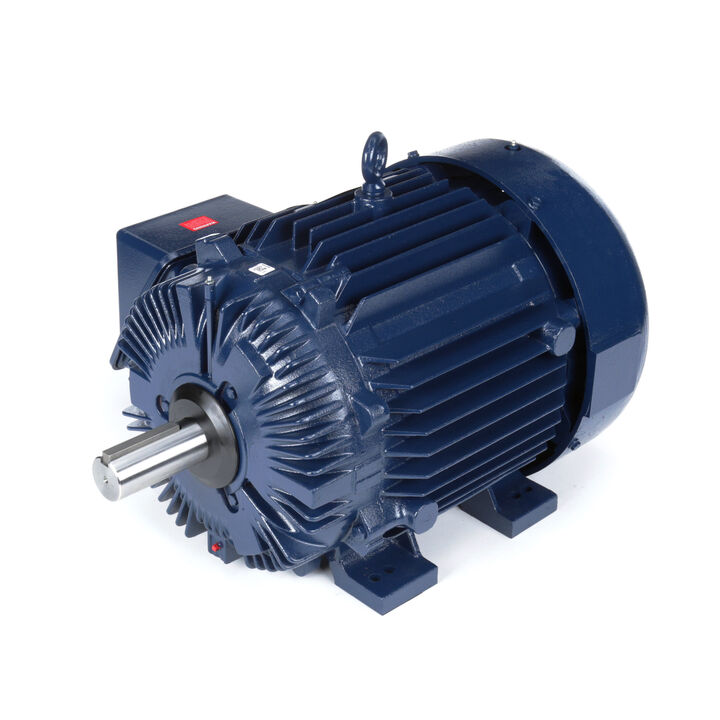

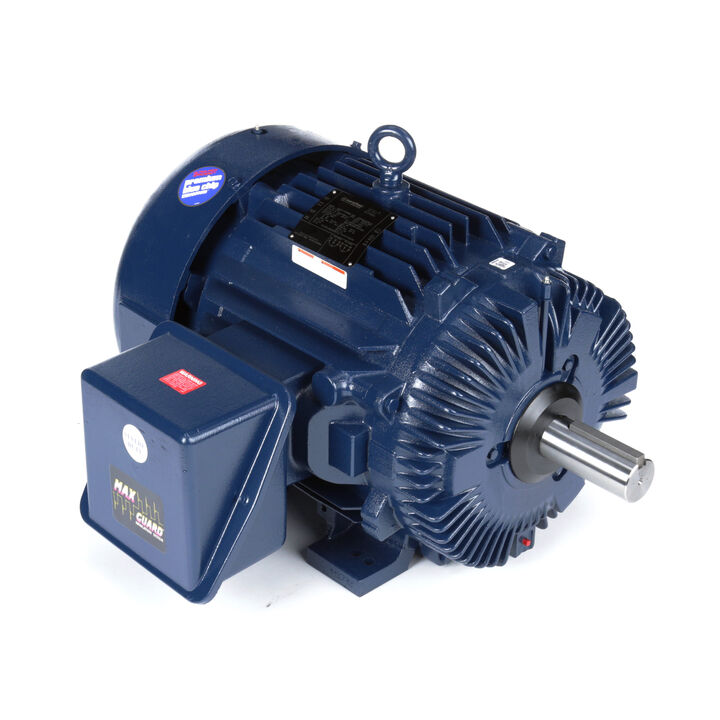

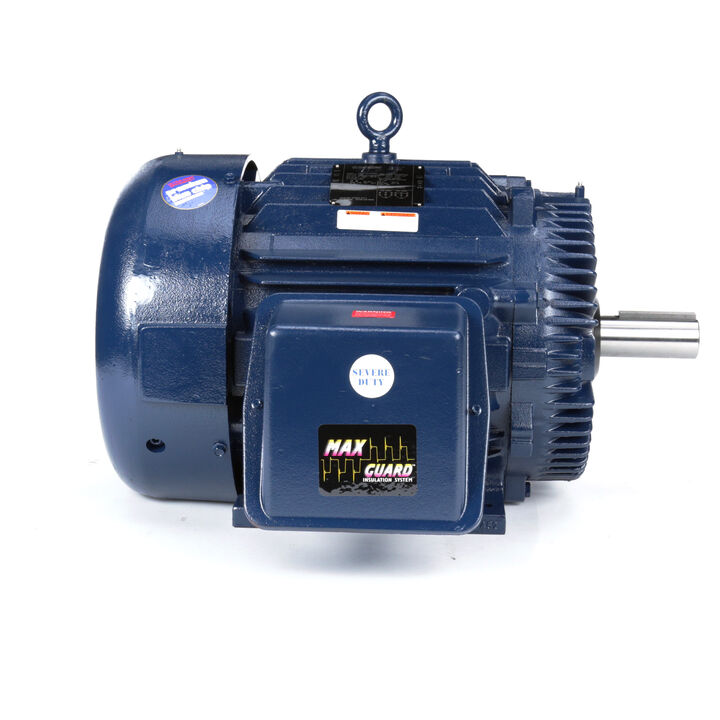

MARATHON MOTORS 365TTFS9230 Y390 / 365TTFS9230AN Multispeed Motor, 60 and 15 HP, 3 Phase, 60 Hz, 460V, 1800 and 1800 RPM

Item: AF6MZJ
Model: 365TTFS9230
In Stock

Get it by Friday, Apr 17

£26811.48/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Base Type Rigid Base
Bearing Type Ball
Bearings Ball
Body Dia. 20"
Cc Number CC003A
Color Blue
Conduit Box Location Exterior
Conduit Box Position F1, F2
Dia. 20"
Diameter 20"
Duty Continuous
Duty Cycle Continuous
Efficiency Group Premium
Enclosure Type Totally Enclosed Fan Cooled
Features Extended Grease Tubes, Forsheda Seals On Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage
Finish Epoxy Coated
Frame 365T
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 74.5/25A
Hp 60 hp, 15 hp
Insulation Class Class F
Length 32 1/2"
Length Less Shaft 25 3/8"
Max. Ambient Temp. 40°C
Motor Application Cooling Tower
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal/Vertical Shaft Up
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Mounting Type Rigid Base
No. Of Speeds 2
Nominal Efficiency 92.4%
Number Of Speeds 2
Output Wattage 45000 W
Overall Length 32 1/2"
Phase 3
Rpm 1780/885 RPM
Service Factor 1.15
Shaft Dia. 2 3/8"
Shaft Length 6 1/8"
Shaft Type Keyed
Standard Logo ul.png, csa.png
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 460V AC
Motor Thermal Protection None
standard CE LISTED, CSA CERTIFIED, UL RECOGNIZED

Product Details

Shipping Information

Height 67.31
Length 96.22
Width 80.98
HS Code 8501528040
Country Of Origin US
Weight 450.000000
