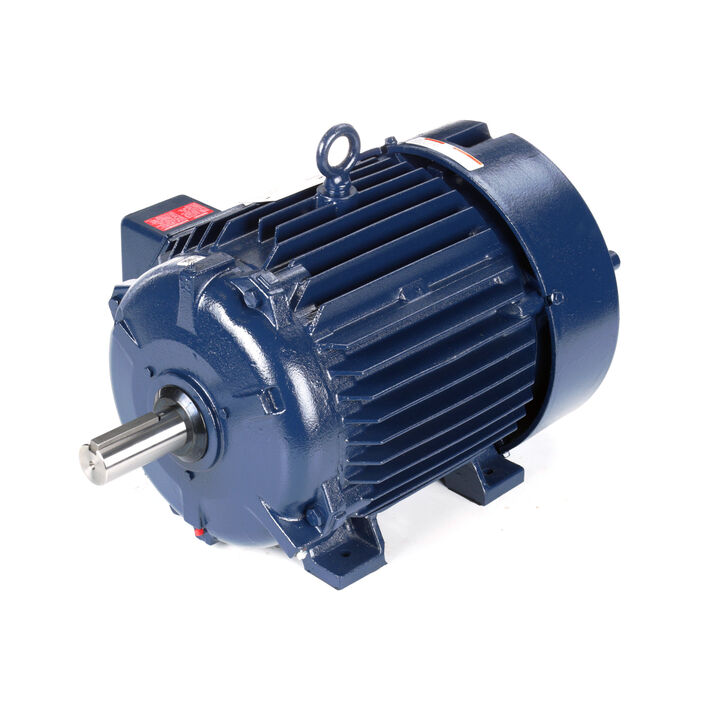

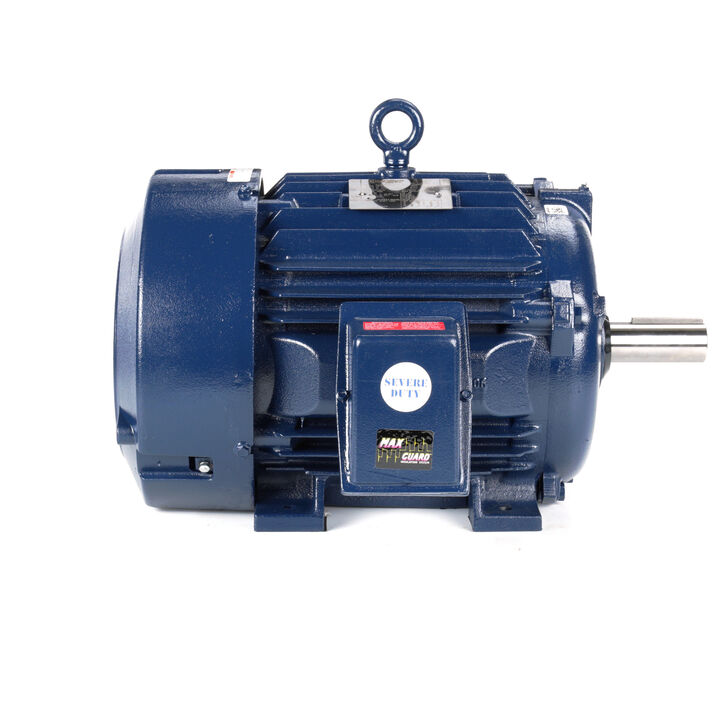

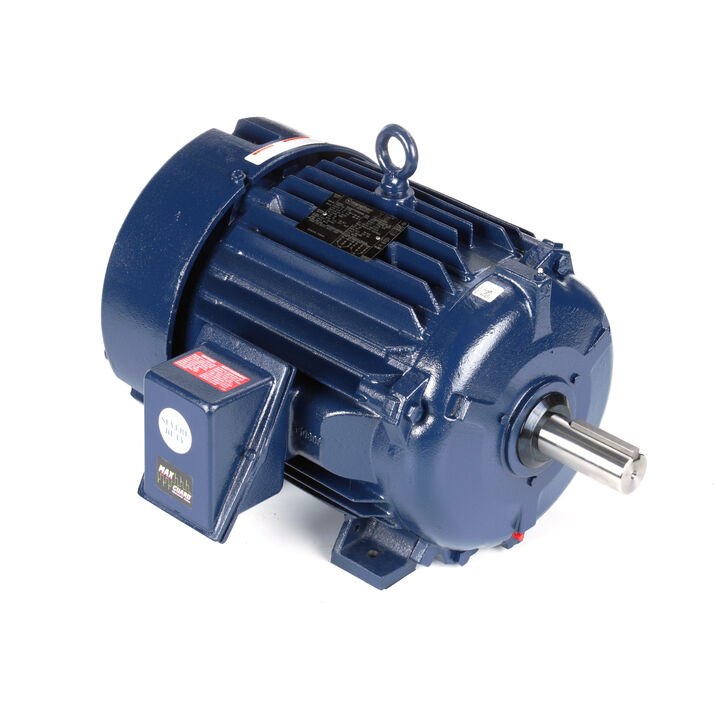

MARATHON MOTORS 284TTFNA16832 U873A / 284TTFNA16832BB Severe Duty Motor, 25/20 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AF6MZU

Model: 284TTFNA16832

In Stock

Get it by Friday, Apr 17

£6152.68/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications

Item	Cooling Tower Motor
Ambient Temp.	40°C
Base Type	Rigid Base
Bearing Type	Ball
Bearings	Ball
Body Dia.	15 1/16"
Cc Number	CC003A
Color	Blue
Conduit Box Location	Exterior
Conduit Box Position	F1, F2
Dia.	15 1/16"
Diameter	15 1/16"
Duty	Continuous
Duty Cycle	Continuous
Efficiency Group	Premium
Enclosure Type	Totally Enclosed Fan Cooled
Features	Extended Grease Tubes, Forsheda Seals On Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage
Finish	Epoxy Coated
Frame	284T
Frame Material	Cast Iron
Frequency	50/60 Hz
Full Load Amps	62/31A
Hp	25 hp
Insulation Class	Class F
Length	26 1/5"
Length Less Shaft	21 3/8"
Max. Ambient Temp.	40°C
Motor Application	Cooling Tower
Motor Bearings	Ball

Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal/Vertical Shaft Up
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Sub Application	Severe Duty Motor
Mounting Type	Rigid Base
No. Of Speeds	1
Nominal Efficiency	93.6%
Number Of Speeds	1
Output Wattage	18700 W
Overall Length	26 3/16"
Phase	3
Rpm	1772 RPM
Service Factor	1.15
Shaft Dia.	1 7/8"
Shaft Length	4 13/16"
Shaft Type	Keyed
Standard Logo	ul.png, csa.png
Thermal Protection	None
Usable @ 200v	No
Usable @ 208v	No
Voltage	230/460V AC
Motor Thermal Protection	None
standard	CE LISTED, CSA CERTIFIED, UL RECOGNIZED
