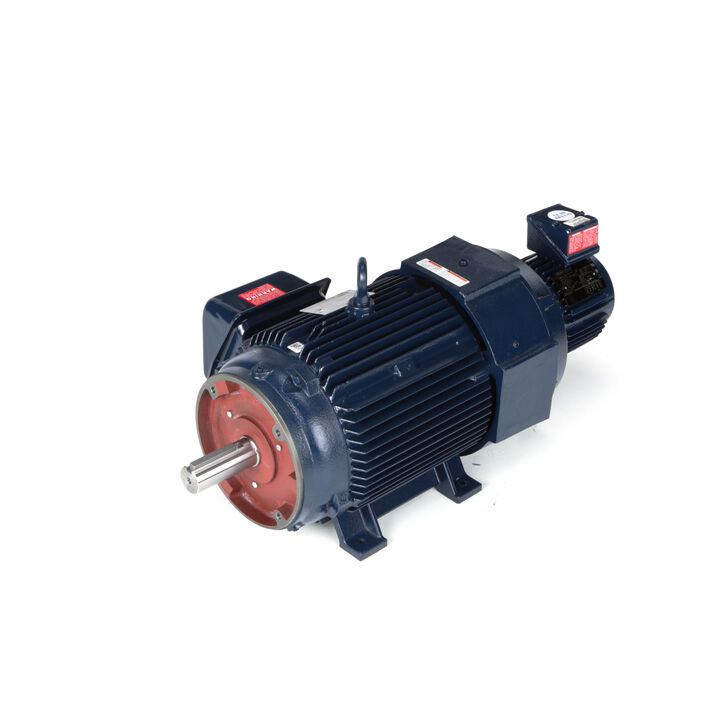

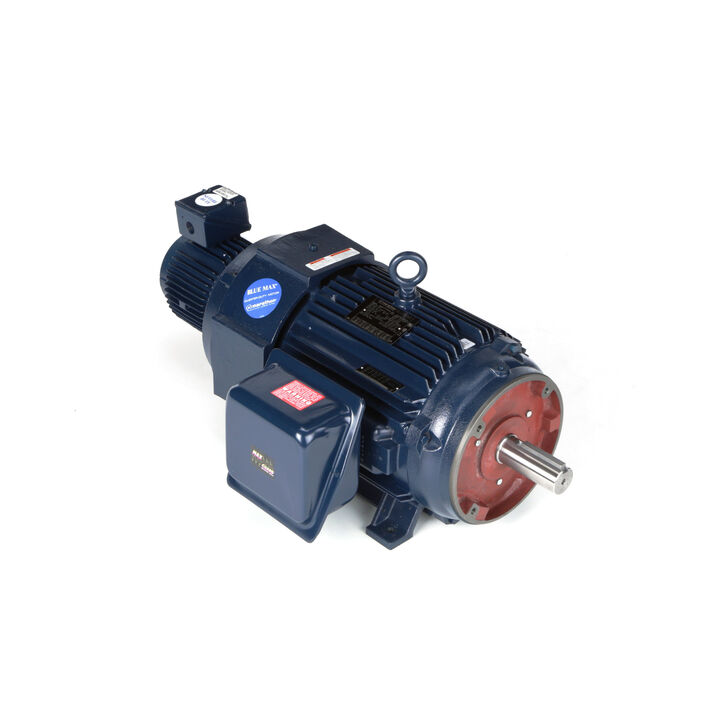

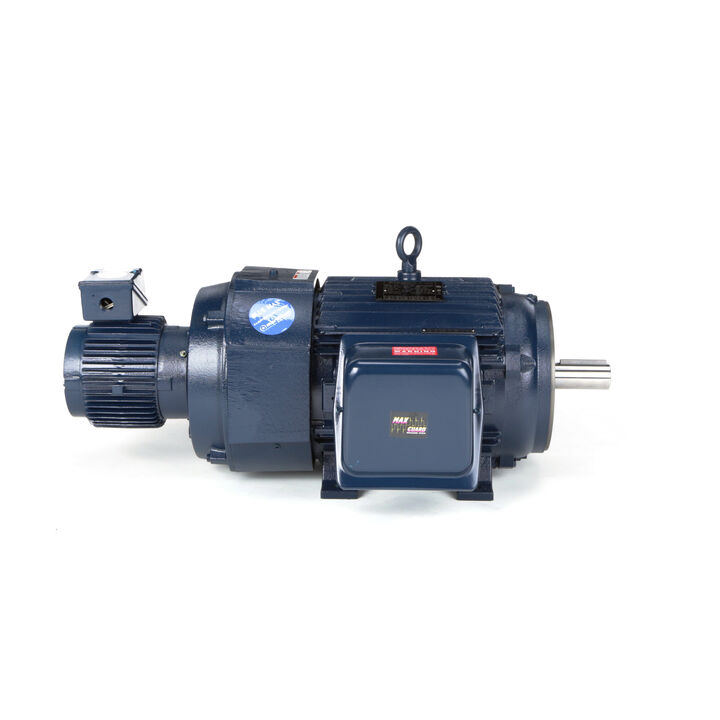

MARATHON MOTORS 284THFPA8038 Y511 / 284THFPA8038AC Inverter Duty Encoder Motor, 25 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM

Item: AF8KGR
Model: 284THFPA8038
In Stock

Get it by Wednesday, Apr 15

£8712.38
5.00% off
£8276.76/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Application Crane
Base Rigid
Base Type Rigid Base
Bearing Type Ball
Bearings Ball
Conduit Box Location Exterior
Conduit Box Position F1, F2
Constant Torque 2000:1
Duty Continuous
Duty Cycle Continuous
Efficiency 91.7%
Efficiency Group Epact
Encoder Acceptable Yes
Finish Enamel
Frame 284TC
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 63/31.5A
Hp 25 hp
Insulation Class Class H
Insulation Feature Class F
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 104°F
Max. Operating Frequency 90 Hz
Max. Speed 1800 RPM
Motor Application Crane
Motor Bearings Ball
Motor Design 3-Phase
Motor Efficiency Group Energy Efficient
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Thermal Protection T Stat
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1765 RPM
Nema Design A
No. Of Speeds 1
Nominal Efficiency 91.7%
Number Of Speeds 1
Overall Length 37 13/16"
Phase 3
Service Factor 1
Shaft Dia. 1 7/8"
Shaft Length 4 3/8"
Speed Range 2000:1
Speed Ratio 2000:1
Standard Logo ul.png,csa.png,ce.png
Standards Ce, Csa, Ul Recognized
Thermal Protection Thermostat
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Warranty 3 yrs.

Product Details

Vector Motor

Shipping Information

height 49.2
length 114
width 66.04
hs code 8501528040
country of origin US
weight 211.500000
