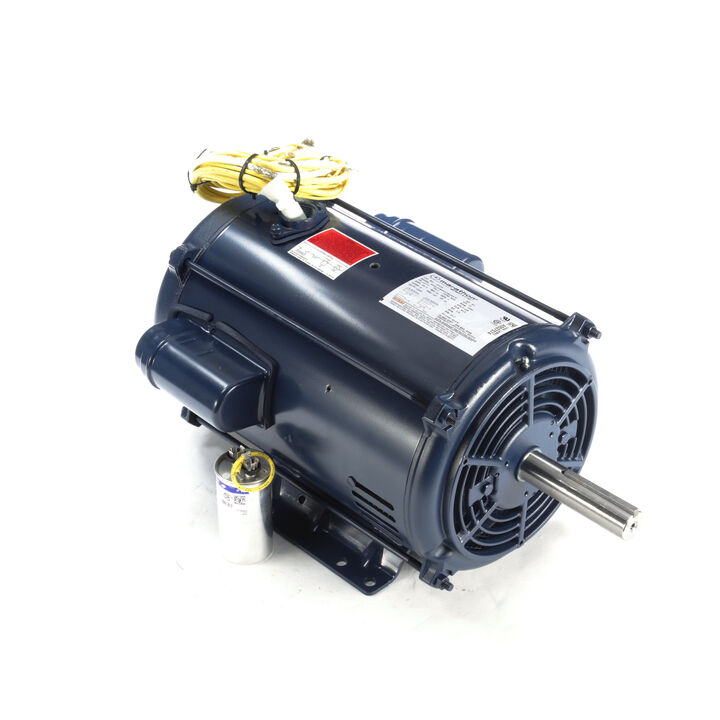

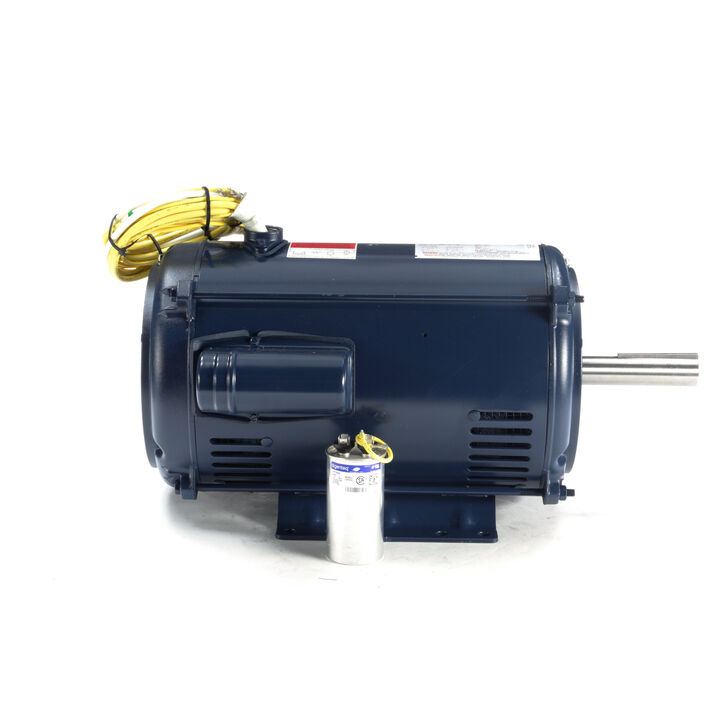

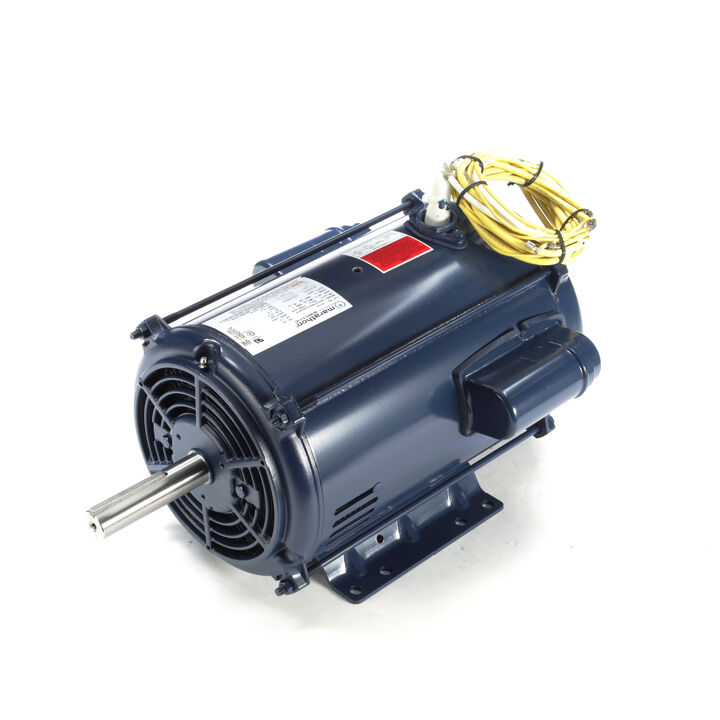

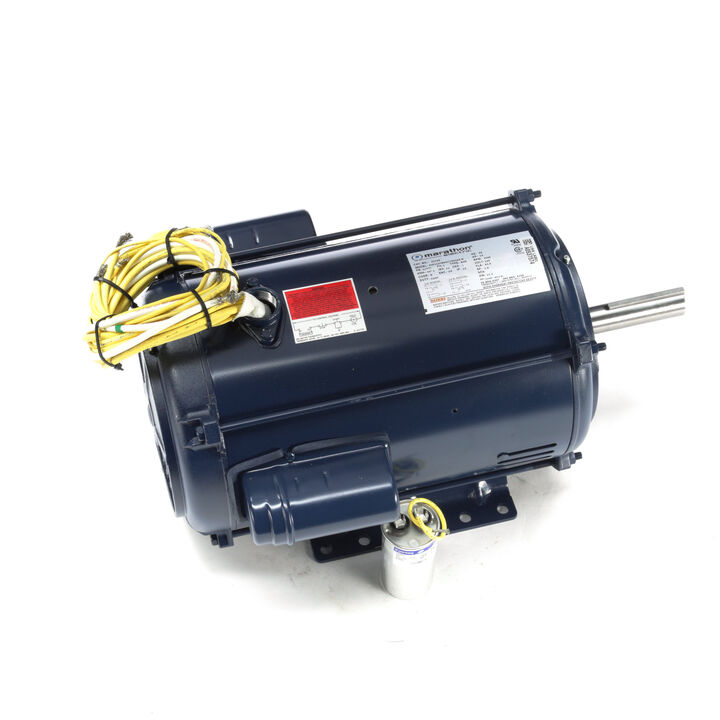

MARATHON MOTORS 215TBDW17003 Z315A / 215TBDW17003AA Crop Dryer Motor, 10 and 15 HP, 1 Phase, 60 Hz, 230 and 230V, 3600 and 3600 RPM
Item: CT2FWP
Model: 215TBDW17003
In Stock
Get it by Thursday, Apr 16
5.00% off
£2583.91/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Farm Duty |
|---|---|
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Finish | Enamel |
| Frame | 215TZ |
| Frame Material | Steel |
| Full Load Amps | 39.5A |
| Hp | 10 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Length Less Shaft | 15 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
|---|---|
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Crop Dryer |
| Motor Thermal Protection | T Stat |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3455 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 20 7/16" |
| Phase | Single |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 4 5/8" |
| Standard Logo | Csa Certified, Ul Recognized |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| standard | CSA CERTIFIED, UL RECOGNIZED |
Product Details
Shipping Information
| Height | 35.56 |
|---|---|
| Length | 56.36 |
| Width | 41.91 |
| Country Of Origin | MX |
|---|---|
| Weight | 61.650000 |
