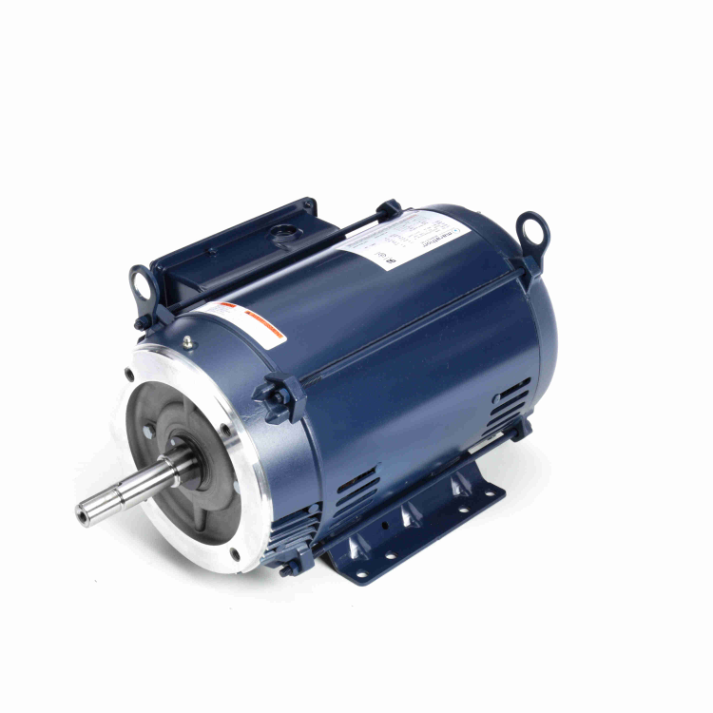

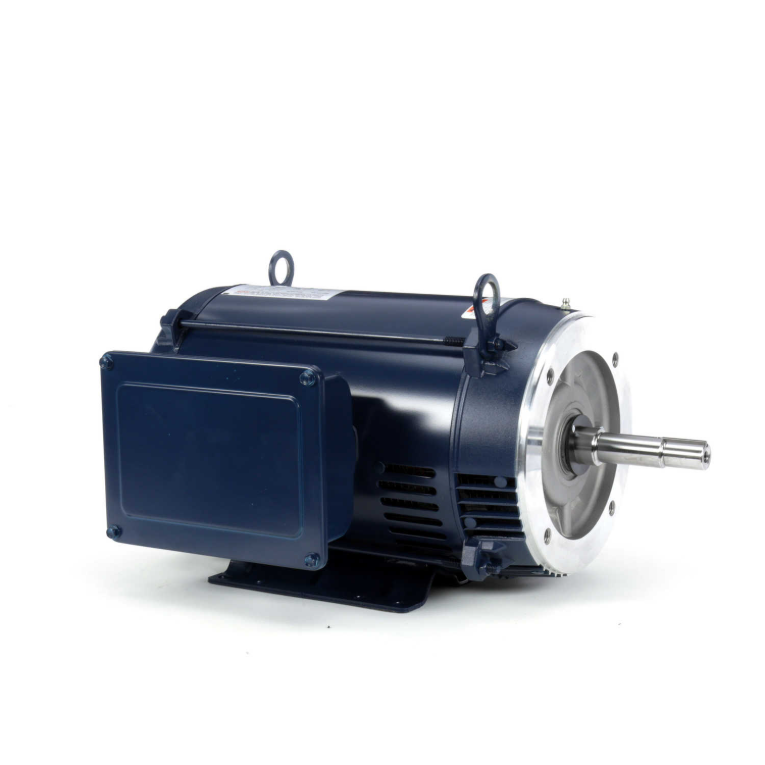

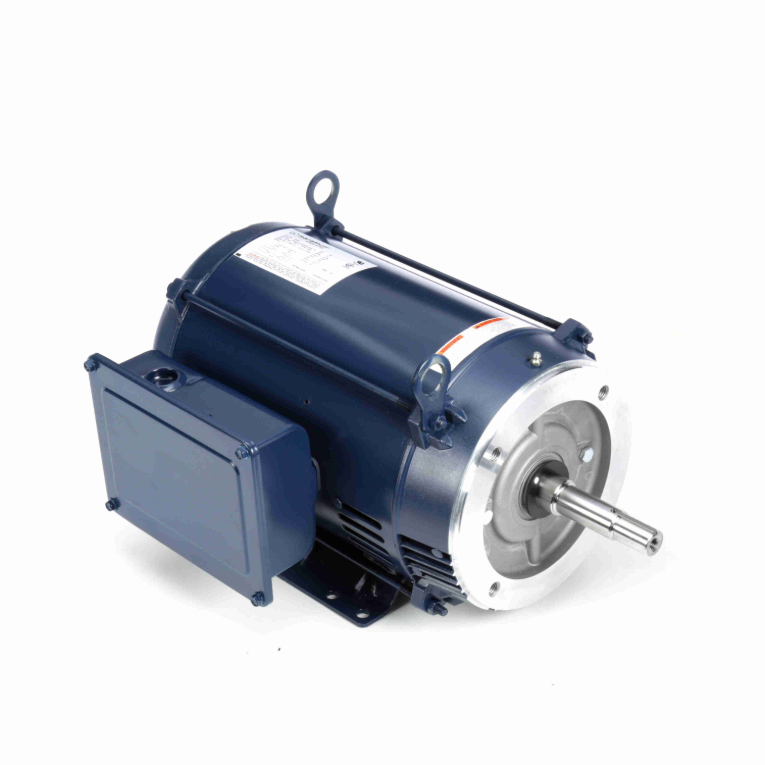

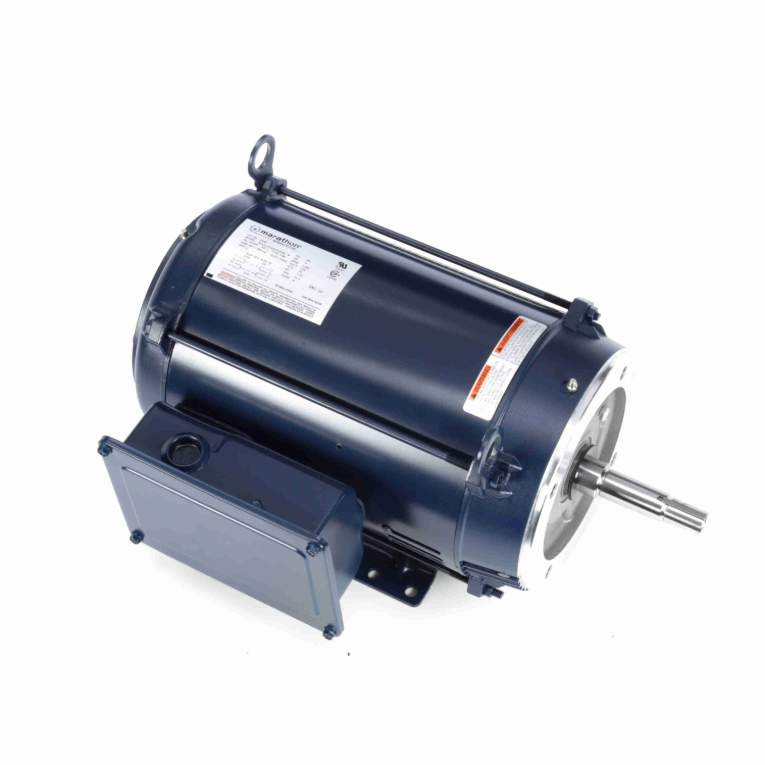

MARATHON MOTORS 213TCDW7027 Z409 / 213TCDW7027AC Close Coupled Pump Motor, 5 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Item: AF8LFG
Model: 213TCDW7027
In Stock
Get it by Thursday, Apr 16
£2134.15/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Body Dia. | 9 1/2" |
| Bolt Circle Dia. | 7 1/4" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Efficiency Group | Standard |
| Frame Material | Steel |
| Frame Size | 213JM |
| Frame Type | 213JM |
| Frequency | 60 Hz |
| Full Load Amps | 28A |
| Height | 11" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 15 11/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
|---|---|
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1730 RPM |
| Nema Design | L |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Overall Height | 11" |
| Overall Length | 19 15/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Standard Logo | ce.png, csa.png, ul.png |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Motor Thermal Protection | None |
| standard | CE MARK, CSA CERTIFIED, UL RECOGNIZED |
Product Details
Shipping Information
| Height | 35.56 |
|---|---|
| Length | 57.15 |
| Width | 42.7 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | US |
| Weight | 51.750000 |
Related Products
| Style | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Design | Shaft Dia. | Insulation Class | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 182TCDW7074 | 115/230V AC | 2 hp | 1701-1800 RPM | 1750 RPM | Capacitor Start | 7/8" | Class F | 14 13/16" | 1,098.98 | |
| B | 182TCDW7318 | 115/230V AC | 3 hp | 3001-3600 RPM | 3500 RPM | Capacitor Start | 7/8" | Class F | 15 5/16" | 1,108.85 | |
| C | 184TBDW17007 | 230V AC | 5 hp | 3001-3600 RPM | 3500 RPM | Capacitor Start/Run | 1 5/8" | Class F | 16 5/16" | 1,360.16 | |
| D | 213TCDW7002 | 230V AC | 7 1/2 hp | 3001-3600 RPM | 3470 RPM | Capacitor Start | 7/8" | Class B | 18 7/16" | 1,320.03 | |
| E | 215TBDW7027 | 230V AC | 10 hp | 1701-1800 RPM | 1730 RPM | Capacitor Start/Run | 7/8" | Class F | 21 3/16" | 2,480.39 | |
| F | 215TCDW7002 | 230V AC | 10 hp | 3001-3600 RPM | 3465 RPM | Capacitor Start | 7/8" | Class B | 19 15/16" | 1,803.24 | |
| G | 215TBDW7029 | 230V AC | 7 1/2 hp | 1701-1800 RPM | 1735 RPM | Capacitor Start/Run | 7/8" | Class F | 19 15/16" | 2,799.90 |
