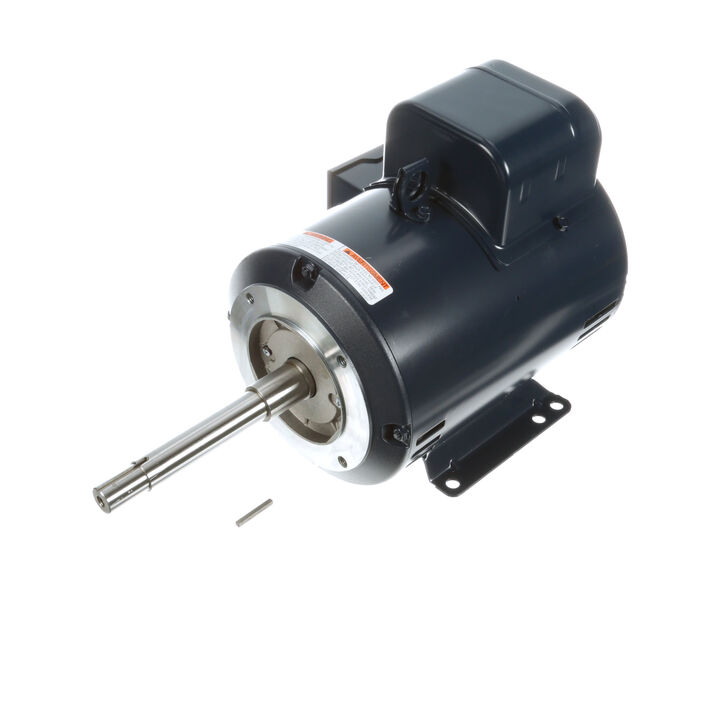

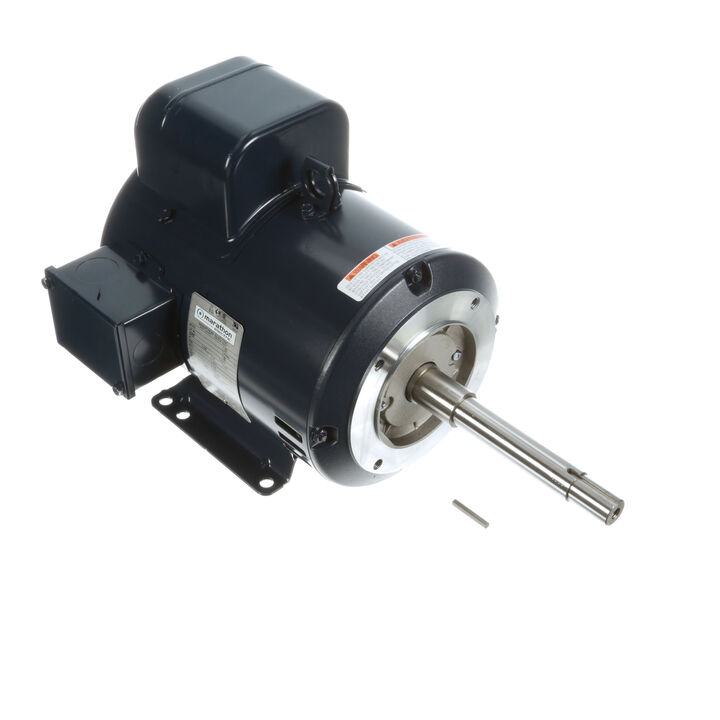

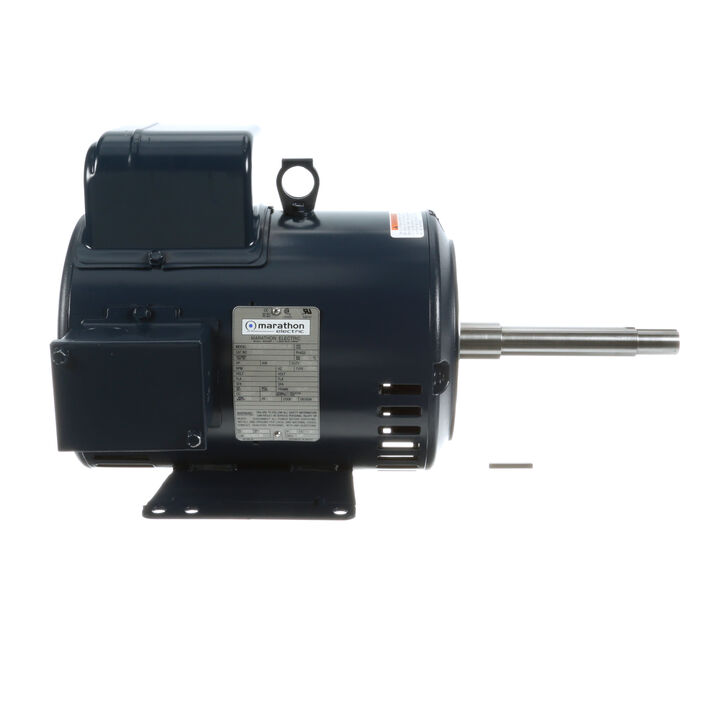

MARATHON MOTORS 184TBDW17011 Z427A / 184TBDW17011AA Close Coupled Pump Motor, 5 HP, 1 Phase, 60 Hz, 230V, 3600 RPM
Item: AJ2MYM
Model: 184TBDW17011
In Stock
Get it by Friday, Apr 17
£1946.6/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Close-Coupled Pump Motor |
|---|---|
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Frame Type | 184JP |
| Frequency | 60 Hz |
| Full Load Amps | 22A |
| Hp | 5 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
|---|---|
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | L |
| Orientation | Horizontal |
| Output Kw | 3.7 kW |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 7.333" |
| Standard Logo | ce.png, csa.png, ul.png |
| Voltage | 230V AC |
Product Details
Shipping Information
| Height | 31.45 |
|---|---|
| Length | 51.13 |
| Width | 37.16 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight | 40.050000 |
