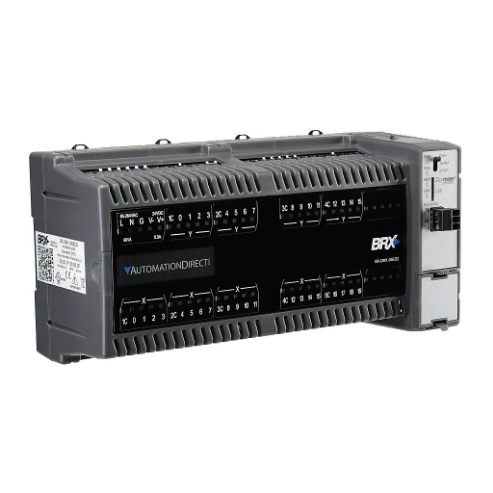

BRX BX-DM1-36ED2 Plc, 120-240 VAC, Serial Port, Microsd Card Slot, 20-Point, AC/DC
Item: CV7TDV
Model: BX-DM1-36ED2
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£770.91/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Axis Profiles | Relative, Absolute Positioning Velocity Mode Trapezoid S-Curve Electronic Gearing Camming Following Homing Jogging Linear Interpolation Online Edit X Y Trend View |
|---|---|
| Connection Type | (1) RS-232, RS-485 (3-Pin Terminal) |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Sourcing |
| Duration Measurement | Up To (3) Single Input (Edge) Timers |
| External Power Requirement | 120-240V AC |
| Frequency Response | 250 kHz |
| Includes | BX-RTB03S Terminal Block And D0-MC-BAT Battery |
| Interval Measurement | Up To 3 Single Input Edge Timers, Up To 3 Dual Input Dual Edge Timers |
| Ladder Memory | 64k Words |
| No. Of High Speed Capable Input Points | 10 |
|---|---|
| Number Of High-speed Capable Output Points | 8 |
| Number Of Isolated Discrete Input Commons | 5 |
| Output Pulse Mode | Up To (4) Virtual Axes Up To (3) Pto Linear Step, Direction Outputs Up To (3) Pto Rotary Clockwise, Counter-Clockwise (Cw, Ccw) Outputs Up To (3) Pto Quadrature (A And B) Outputs Up To (3) Pwm Pulse Width Modulation Outputs |
| Port Protocol (s) | Do-More Protocol Modbus RTU Master/Slave ASCII In/Out K-Sequence Slave Progra mming And Monitoring |
| Port Speed (s) | Up to 115.2k baud |
| Programming Language | Ladder |
| Table-driven Input (s) | Up to Four Programmable Limit Switches, Up to Four Preset Tables |
| Total Memory | 192k Words |
| Voltage Type | AC/DC |
Product Details
Logic Controller
Shipping Information
| hs code | 853710 |
|---|---|
| country of origin | US |
| weight | 0.585000 |
|---|
