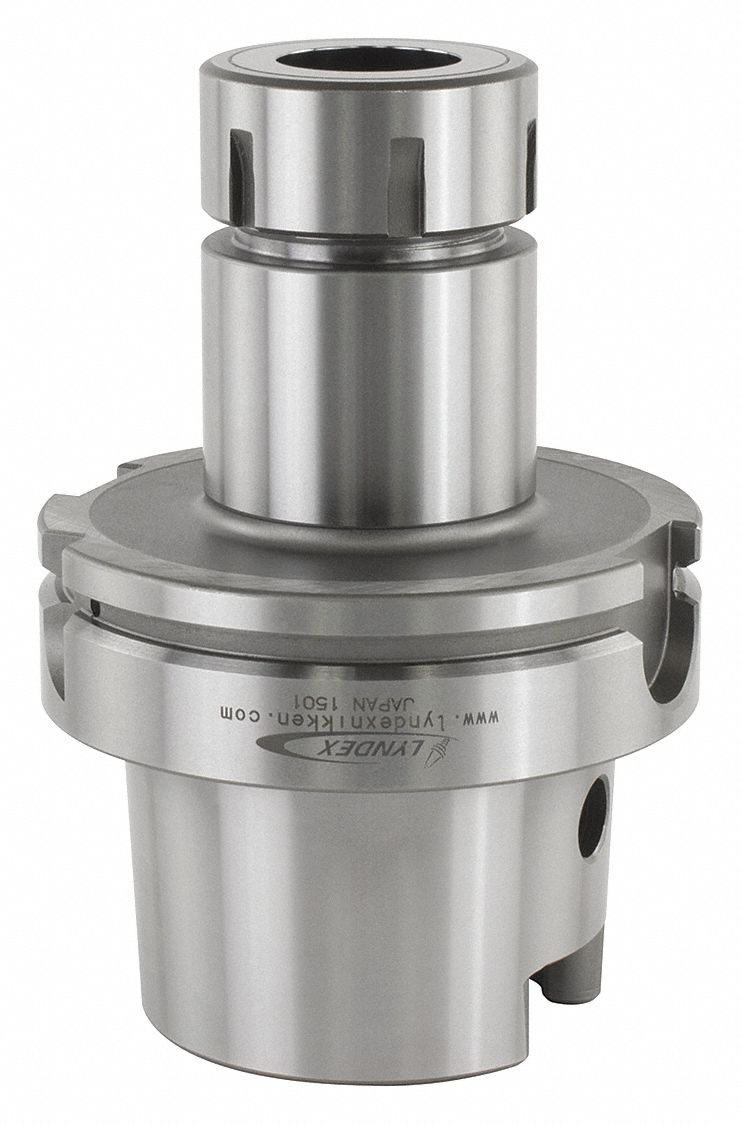

LYNDEX-NIKKEN HSK100A-ER40-4.00 Collet Chuck HSK100 SK10 Projection 120mm
Item: AH8FHY
Model: HSK100A-ER40-4.00
28 In Stock
Ships within 2 days via
5.00% off
£788.09/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Collet Chuck |
|---|---|
| Balanceable | No |
| Collet Series | SK10 |
| Compatible Collet Wrench | 040-SPAN |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through |
| Coolant Through | Yes |
| Diameter | 1.083" |
| Features | Pre-Balanced |
| Finish | Nickel Chrome |
| For Collet Series | Er40 |
| For Max Collet Size | 1.024" |
| For Min Collet Size | 0.118" |
| Includes Coolant Screws | Coolant Screws Included |
| Includes Nut | Nut Included |
| Material | Molybdenum |
| Max Speed | 25000 RPM |
|---|---|
| Max. Collet Capacity | 1.023" |
| Min. Collet Capacity | 1/8" |
| Nose Dia. | 2 12/25" |
| Nut Dia. | 1.083" |
| Nut Diameter | 2.48" |
| Outside Diameter - Maximum | 2.44" |
| Overall Length | 5 31/32" |
| Pre-balanced | Yes |
| Product Type | Hsk Collet Chuck |
| Projection | 4" |
| Size | HSK100 |
| Standards | Din 6499 |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | HSK100 |
| Torque - Maximum | 125 lbs.-ft. |
Product Details
Shipping Information
| Height | 12.7 |
|---|---|
| Length | 30.48 |
| Width | 12.7 |
| Country Of Origin | JP |
|---|---|
| Weight | 2.700000 |
