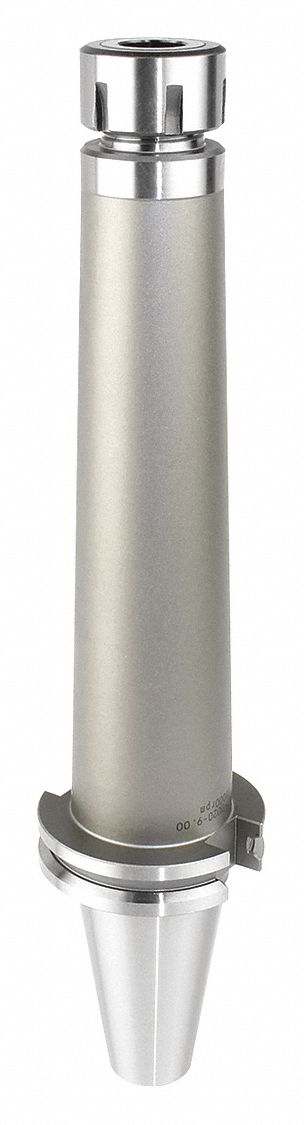

LYNDEX-NIKKEN C4047-0032-9.00 Collet Chuck CAT40 100TG Project 2.750 Inch
Item: AH8FAC
Model: C4047-0032-9.00
12 In Stock
Ships within 2 days via
5.00% off
£534.02/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Collet Chuck |
|---|---|
| Balanceable | No |
| Collet Series | ER32 Series |
| Compatible Collet Wrench | 032-SPAN |
| Coolant Fed | Coolant Through |
| Coolant Screws | Coolant Screws Included |
| Coolant Supply | Coolant Through |
| Coolant Through | Yes |
| Diameter | 1.97" |
| Features | Pre-Balanced |
| Finish | Nickel Chrome |
| For Collet Series | ER32 |
| For Max Collet Size | 0.787" |
| For Min Collet Size | 0.078" |
| Material | Molybdenum |
|---|---|
| Max Speed | 23000 RPM |
| Max. Collet Capacity | 0.787" |
| Min. Collet Capacity | 0.078" |
| Nose Dia. | 1.97" |
| Nut | Nut Included |
| Nut Dia. | 1.97" |
| Overall Length | 11 11/16" |
| Pre-balanced | Yes |
| Product Type | Cat Collet Chuck |
| Projection | 9" |
| Standards | Din 6499 |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | Cat40 |
Product Details
Shipping Information
| Height | 9.22 |
|---|---|
| Length | 20.96 |
| Width | 9.22 |
| Country Of Origin | JP |
|---|---|
| Weight | 1.350000 |
