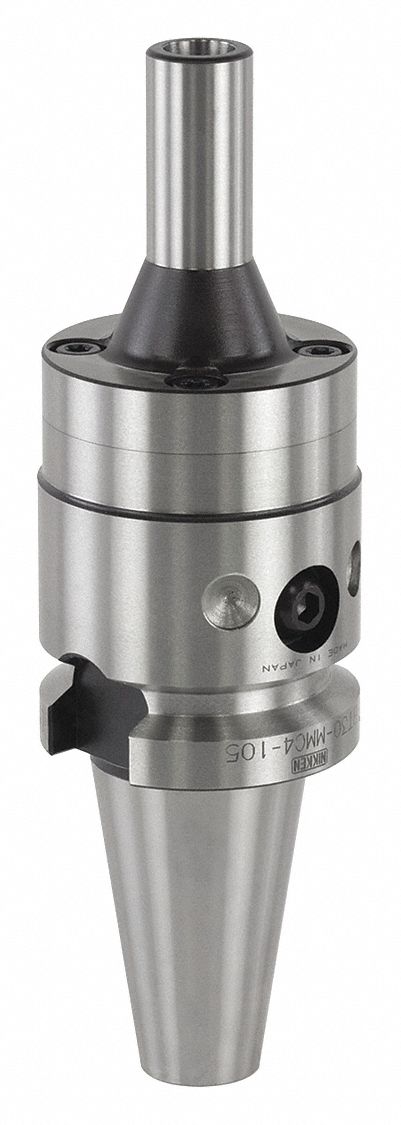

LYNDEX-NIKKEN BT30-MMC4-105 Collet Chuck BT30 VMK8 Project 75mm
Item: AH8EYF
Model: BT30-MMC4-105
17 In Stock
Ships within 2 days via
5.00% off
£1699.48/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Collet Chuck |
|---|---|
| Balance Rating | G2.5 |
| Balanceable | No |
| Collet Series | VMK8 Series |
| Compatible Collet Wrench | ALLEN6 |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through |
| Coolant Through | Yes |
| Features | Pre-Balanced |
| For Collet Series | MPK4 Series |
| For Min Collet Size | 0.0625" |
| Includes Nut | Nut Not Included |
| Material | High Speed Steel |
|---|---|
| Max Speed | 30000 RPM |
| Max. Collet Capacity | 0.157" |
| Min. Collet Capacity | 0.039" |
| Nose Dia. | 0.591" |
| Overall Length | 5 31/32" |
| Pre-balanced | Yes |
| Product Type | Bt Collet Chuck |
| Projection | 4.134" |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | BT30 |
Product Details
- Coolant Through : Yes
- Balanceable : No
- Pre-Balanced : Yes
Shipping Information
| height | 8.89 |
|---|---|
| length | 15.88 |
| width | 8.89 |
| country of origin | JP |
|---|---|
| weight | 0.630000 |
Related Products
| Style | Model | Material | Projection | Taper Size | Nut Dia. | Min. Collet Capacity | Max. Collet Capacity | Nose Dia. | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B3007-0016-2.36 | Molybdenum | 2 9/25" | BT30 | 1.26" | 0.019" | 0.406" | 1.26" | 4 17/64" | 241.94 | |
| A | B3007-0020-2.50 | Molybdenum | 2 1/2" | BT30 | 1.38" | 0.039" | 0.511" | 1.38" | 4 13/32" | 267.02 | |
| B | B3007-0500-2.00 | Molybdenum | 2" | BT30 | 2 1/2" | 1/8" | 1/2" | 1.34" | 3 29/32" | 467.13 | |
| B | B3007-0750-2.50 | Molybdenum | 2 1/2" | BT30 | 0.47" | 0.047" | 3/4" | 1.89" | 4 13/32" | 213.95 | |
| B | B3007-1000-3.94 | Molybdenum | 3.94" | BT30 | 3/4" | 0.047" | 1" | - | 5 27/32" | 213.95 | |
| A | B3017-0020-4.00 | Molybdenum | 4" | BT30 | 1.38" | 0.039" | 0.511" | 1.38" | 5 29/32" | 304.36 | |
| A | B3027-0016-5.00 | Molybdenum | 5" | BT30 | 1.26" | 0.019" | 0.406" | 1.26" | 6 29/32" | 269.70 |
