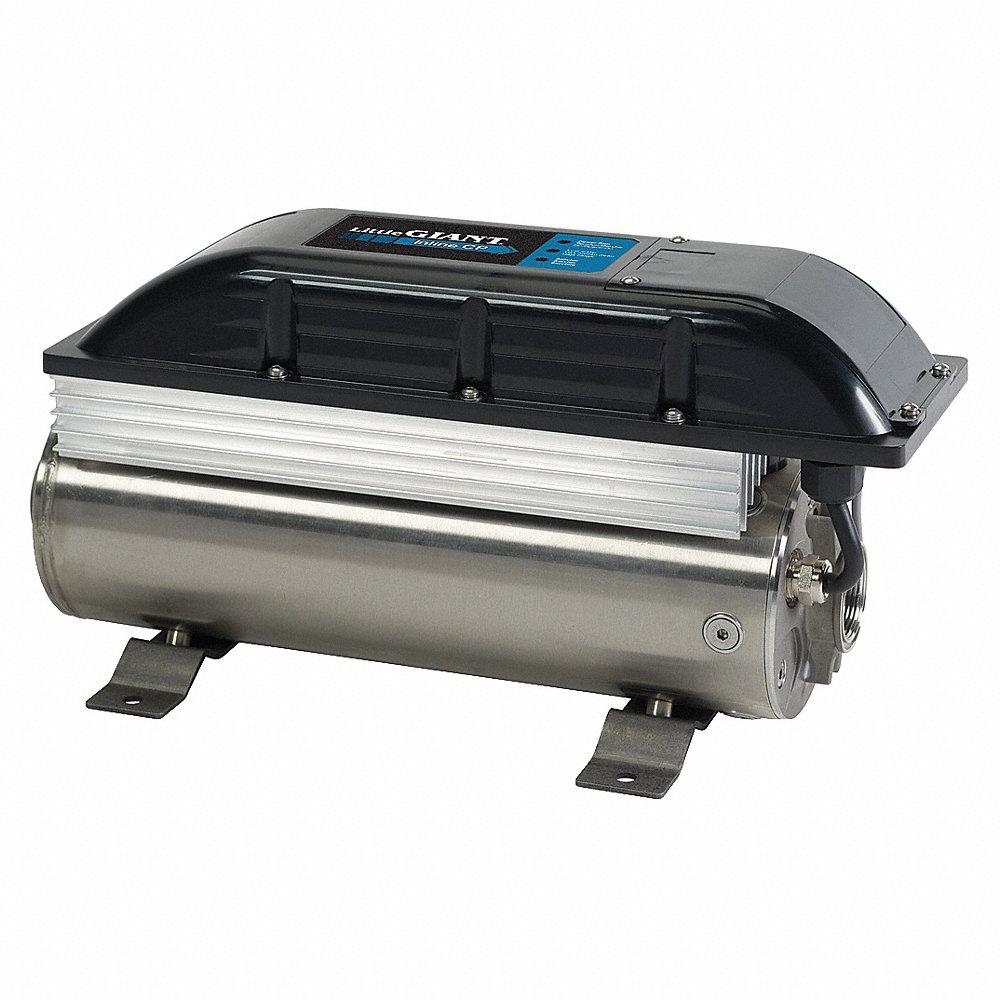

LITTLE GIANT PUMPS 90411101 Inline Constant Pressure System, 1 1/5 HP, 1-1/4 Inch NPT Inlet Size

Item: CH9XNQ
Model: 90411101
In Stock

Get it by Friday, Apr 17

£2,756.86
5.00% off
£2,619.01/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Compatible Discharge Pipe Size 1 1/4"
Compatible Intake Pipe Size 1 1/4"
Display Qty 1
Display Sell Uom EA
Duty Cycle Continuous
Frequency 60 Hz
Housing Material Stainless Steel
Hp 1 1/5 hp
Impeller Design Closed
Impeller Material Stainless Steel
Includes Tank
Max. Case Pressure 150 psi
Max. Flow Rate 46 GPM
Max. Head 160 ft.
Max. Media Temp. 145°F
Max. Motor Ambient Temp. 122°F
Max. Pressure Boost 60 psi
Max. Rpm 3450 RPM
Max. Solid Dia. 1/4"
Max. Suction Lift 5 ft.
Max. System Pressure 70 psi
Media Type Water
Min. Flow Rate 1 GPM
Mounting Orientation Inline
No. Of Stages 3
Overall Height 9.31"
Overall Length 18 21/25"
Overall Width 5 18/25"
Overload Thermal Protection Yes
Pumping Application Increased And Constant Water Pressure From Water Storage/Cistern Systems, Irrigation And Water Reclamation Systems, Multi-Family Dwellings, Duplexes, Municipal Water Or Private Well Systems, Triplexes And Quads
Seal Material Carbon/Ceramic
Self Priming Manual
Tank Type Pressure Tank Not Included
Voltage 230V AC
Wetted Material Stainless Steel
standard CSA CERTIFIED

Shipping Information

Height 57
Length 23.98
Width 30.18
Country Of Origin US
Weight 19.822500
