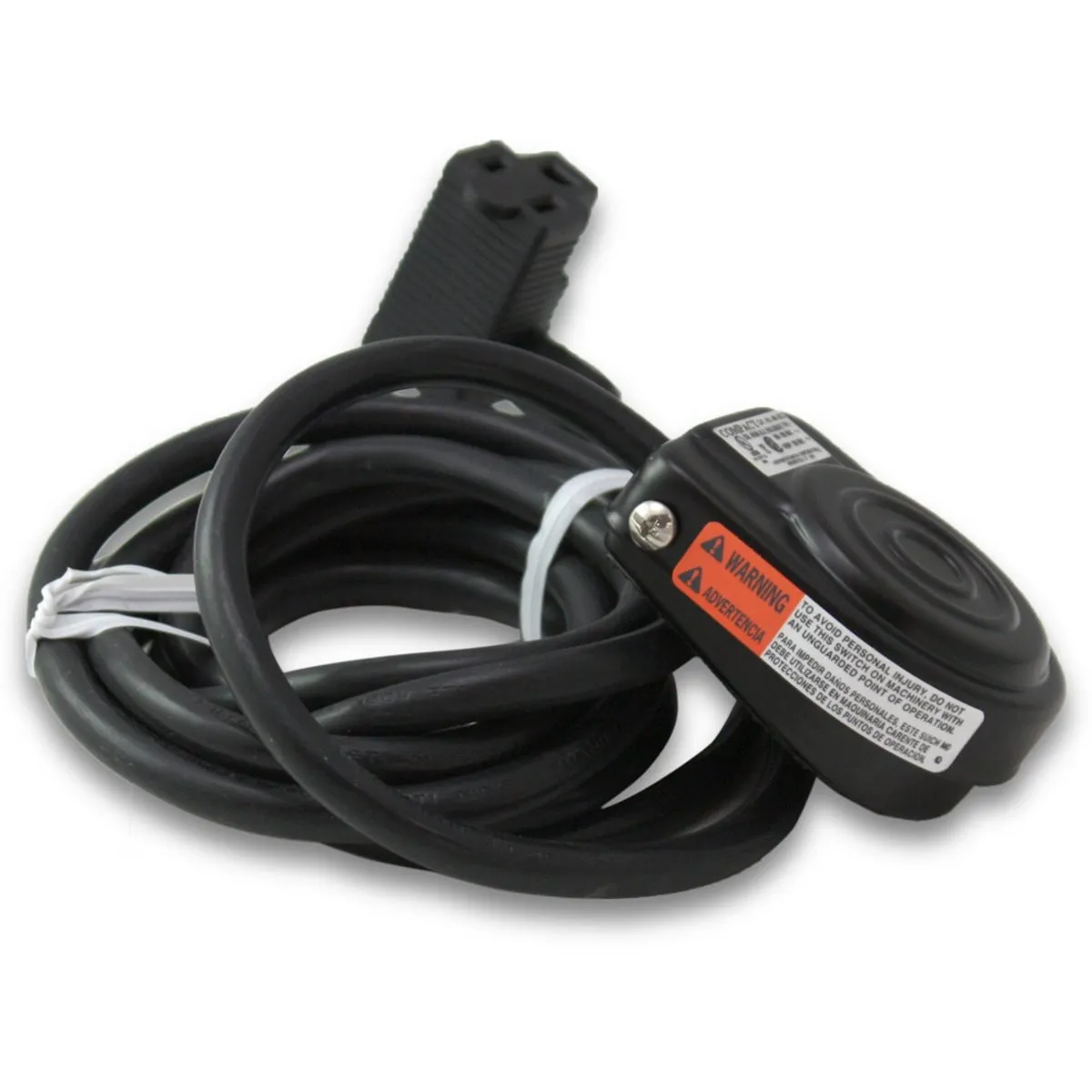

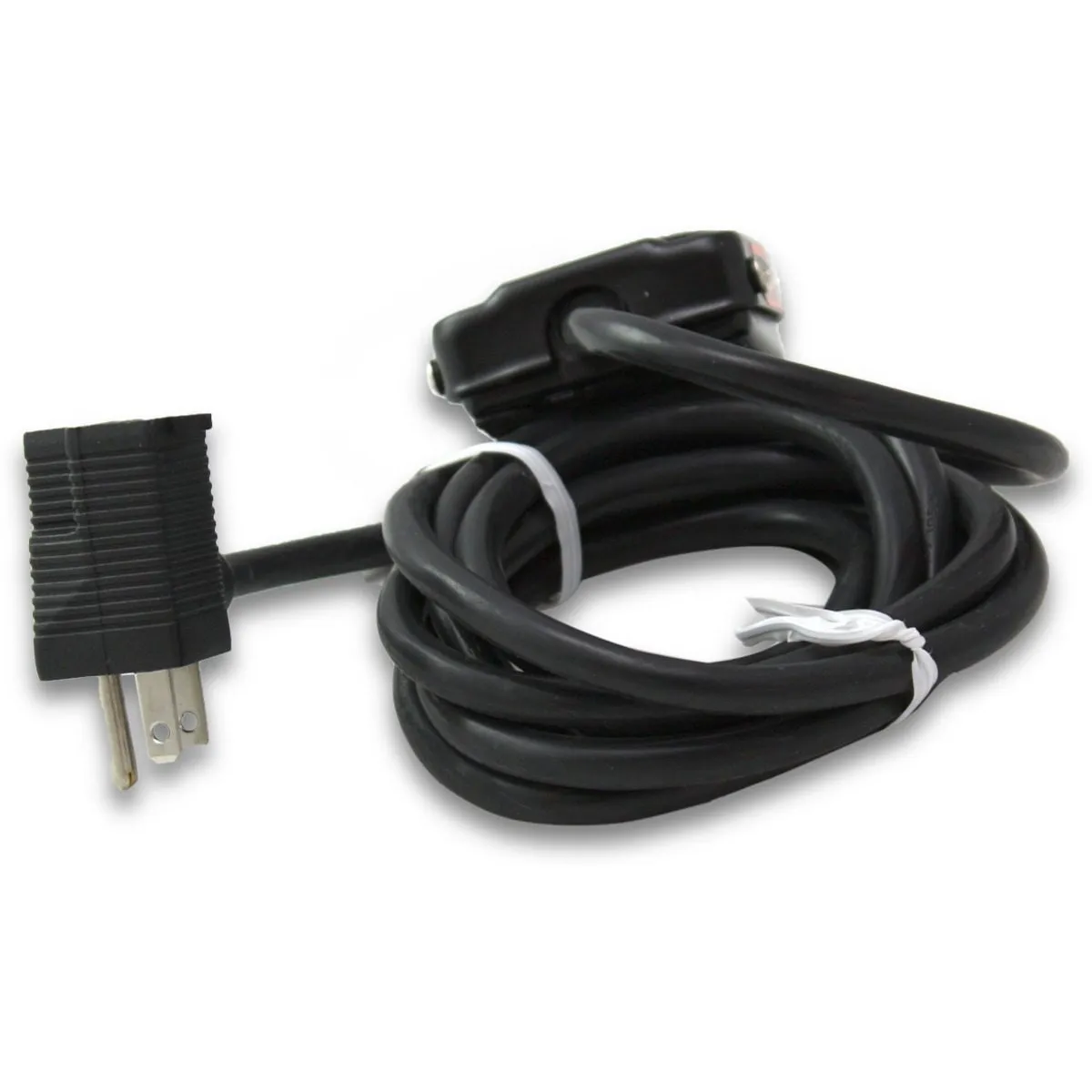

LINEMASTER 491-SC3 Foot Switch, Momentary, Single Stage, Solder Terminal, 6 ft Cordset with Series Plug
Item: AB8WGV
Model: 491-SC3
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Contact Rating | 10A @ 125V |
|---|---|
| Action Type | Momentary |
| Amps Rating | 10A |
| Cable Entries | Adjustable Strain Relief Clamp |
| Contact Form | Spdt Wired No |
| Cord Length | 6 ft. |
| Cord Size | 16 ga. |
| Depth | 1 1/4" |
| Display Qty | 1 |
| Electrical Ratings | 10A, 125V AC, 1/2 hp, 125V AC |
| Features | (2) Mounting Holes, Internal Adjustable Strain Relief, Non-Skid |
| Foot Guard Included | No Guard Included |
| Footnotes | 1 |
| Hazardous Location Specification | Not Rated |
| Horsepower | 1/2 hp @ 125V AC |
| Housing Colors | Black |
| Housing Material | Formed Steel |
| Includes Potentiometer | No Potentiometer Included |
| Ip Rating | IP20 |
| Length | 2 7/8" |
|---|---|
| Material | Steel |
| Nema Enclosure Rating | 1 |
| Number Of Conductors | 3 |
| Number Of Pedals | 1 |
| Overall Depth | 2.87" |
| Overall Height | 1 7/25" |
| Overall Width | 3 1/2" |
| Plug Type | Series Plug |
| Power Source | Electrically Corded |
| Resistance Properties | Watertight |
| Series | Compact Series |
| Switch Action | Momentary |
| Switch Connections | Solder Terminal, Pre Wired |
| Switch Type | Electrical |
| Termination Connection Type | Pre Cabled |
| Width | 2 1/2" |
| standard | CSA, ROHS, UL LISTED |
Product Details
Foot Switch
Shipping Information
| height | 3.25 |
|---|---|
| length | 7.29 |
| width | 6.35 |
| hs code | 8536509035 |
|---|---|
| country of origin | US |
| weight | 0.198000 |
Related Products
| Style | Model | Contact Form | Cord Length | Material | Action Type | Ip Rating | Amps Rating | Depth | Cord Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 491-SC36MP | Spdt Wired No | 6 ft. | Steel | Momentary | IP20 | 10A | - | 16 ga. | 162.06 | |
| B | 491-S | SPDT | - | Steel | Momentary | IP20 | 10A | 1 1/4" | - | 107.63 | |
| C | 491-SC36 | Spdt Wired No | 6 ft. | - | Momentary | - | - | - | - | 152.24 | |
| D | TWIN 491-S | - | - | - | - | - | - | - | - | - |
