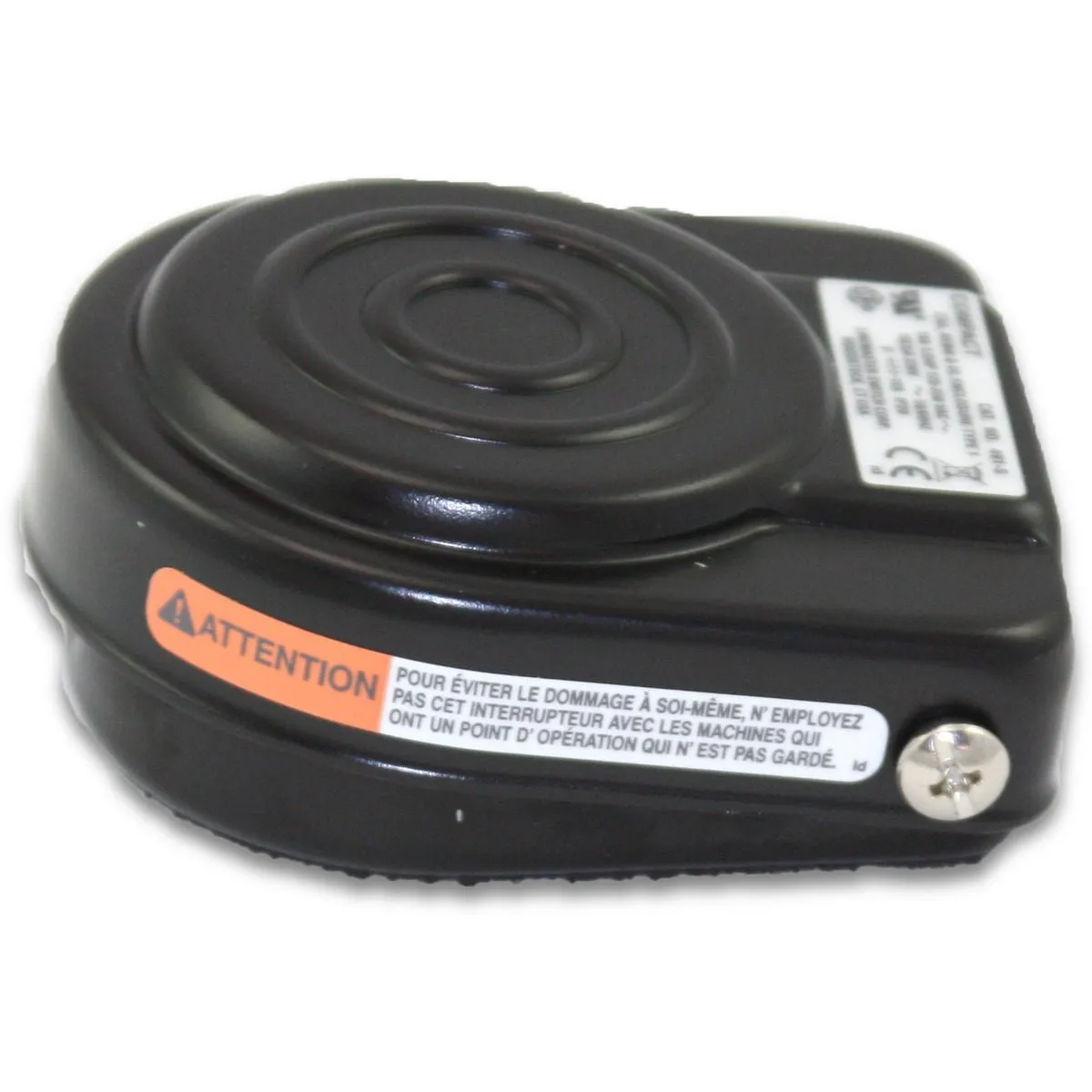

LINEMASTER 491-S Foot Switch, Momentary, Single Stage, Solder Terminal

Item: AC3TTG
Model: 491-S
25 In Stock

Ships within 2 days via

£109.79
5.00% off
£104.29/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Contact Rating 10A @ 125V
Action Type Momentary
Amps Rating 10A
Cable Entries Adjustable Strain Relief Clamp
Contact Configuration Form C
Contact Form SPDT
Depth 1 1/4"
Display Qty 1
Electrical Ratings 10A, 125-250V AC, 1/2 hp, 125-250V AC
Features (2) Mounting Holes, Internal Adjustable Strain Relief, Non-Skid
Foot Guard Included No Guard Included
Hazardous Location Specification Not Rated
Horsepower 1/2 hp @ 125-250V AC
Housing Colors Black
Housing Material Formed Steel
Includes Potentiometer No Potentiometer Included
Ip Rating IP20
Length 2 7/8"
Material Steel
Nema Enclosure Rating 1
Number Of Pedals 1
Overall Depth 2.87"
Overall Height 1 7/25"
Overall Width 2 1/2"
Power Source Electrically Corded
Product Datasheet linemaster-491-s.pdf
Resistance Properties Watertight
Series Compact Series
Switch Action Momentary
Switch Connections Solder Terminal
Switch Type Electrical
Termination Connection Type Solder
Width 2 1/2"
standard CE, CSA, CURUS, ROHS

Shipping Information

Height 3.25
Length 7.29
Width 6.35
HS Code 8536509035
Country Of Origin US
Weight 0.198000
