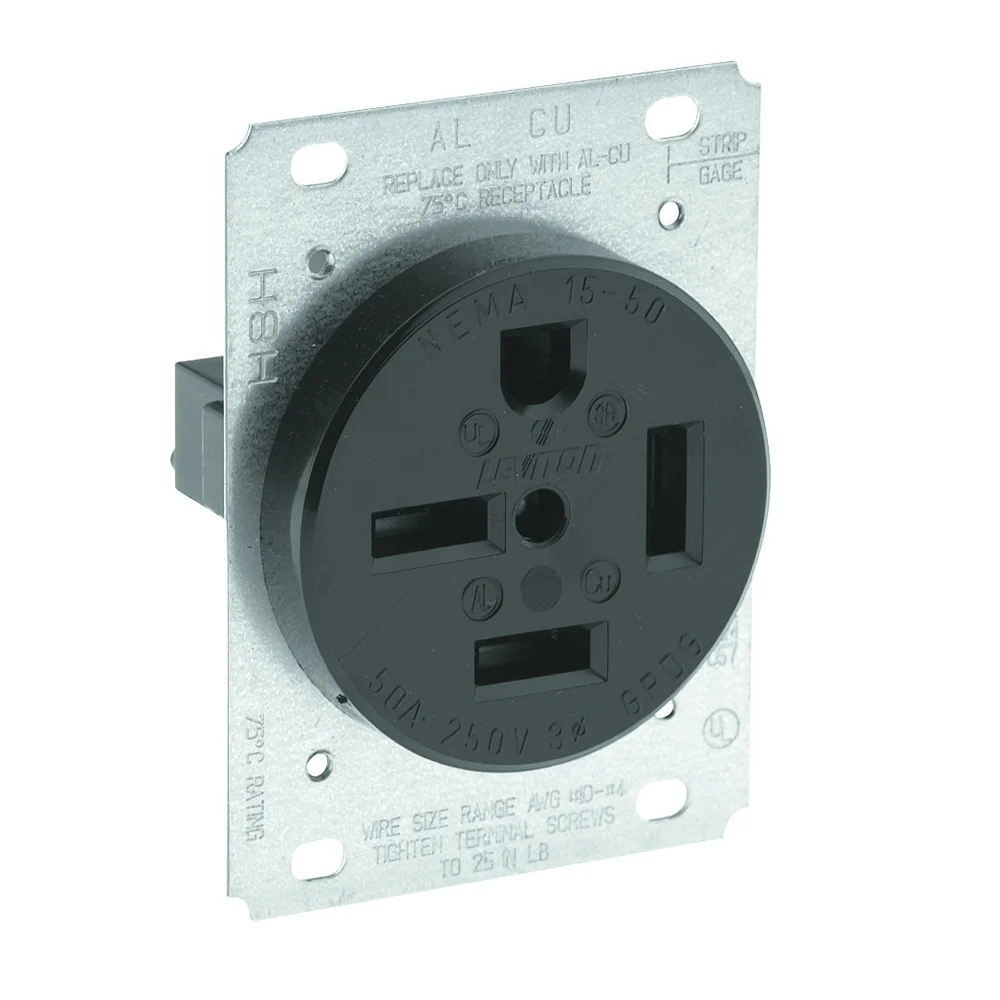

LEVITON 8450 Extra Heavy Duty Flush Mount Receptacle, 250 VAC, 50 A, 3 Poles, 4 Wires, Black
Item: CR9JAW
Model: 8450
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Hp Ratings At Rated Voltage | 7 1/2 hp |
|---|---|
| Afci | No |
| Amps | 50A |
| Body Material | Nylon |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 50A |
| Device Type | Power Device |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | 3 Phase |
| Flange Shape | Rectangular |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Nylon |
| Hp | 7 1/2 hp |
| Ip Rating | Not Rated |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 4 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Recessed |
|---|---|
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Number Of Gangs | 1 |
| Number Of Outlets | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Temp. | -40°C to +60°C |
| Phase | Three |
| Polarized | Yes |
| Receptacle Type | Single |
| Special Resistance | Tamper Resistant |
| Standard Logo | ansi.png |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Ul 498 File E13399 |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | No |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | Up to 4 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Torque Range | 25 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Wire | 4 |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Product Details
Receptacle
Shipping Information
| height | 15.56 |
|---|---|
| length | 30.8 |
| width | 5.79 |
| country of origin | MX |
|---|---|
| weight | 0.180000 |
