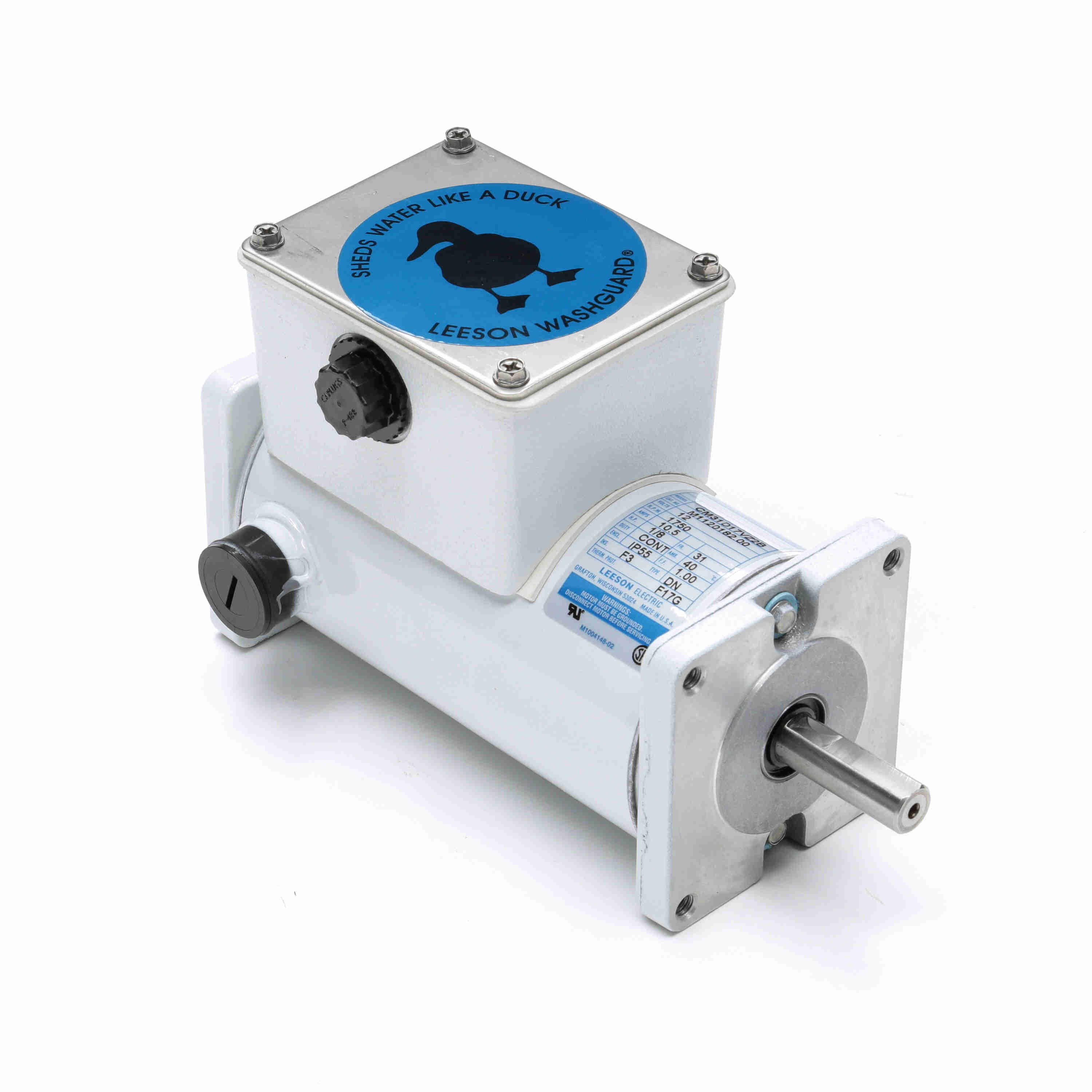

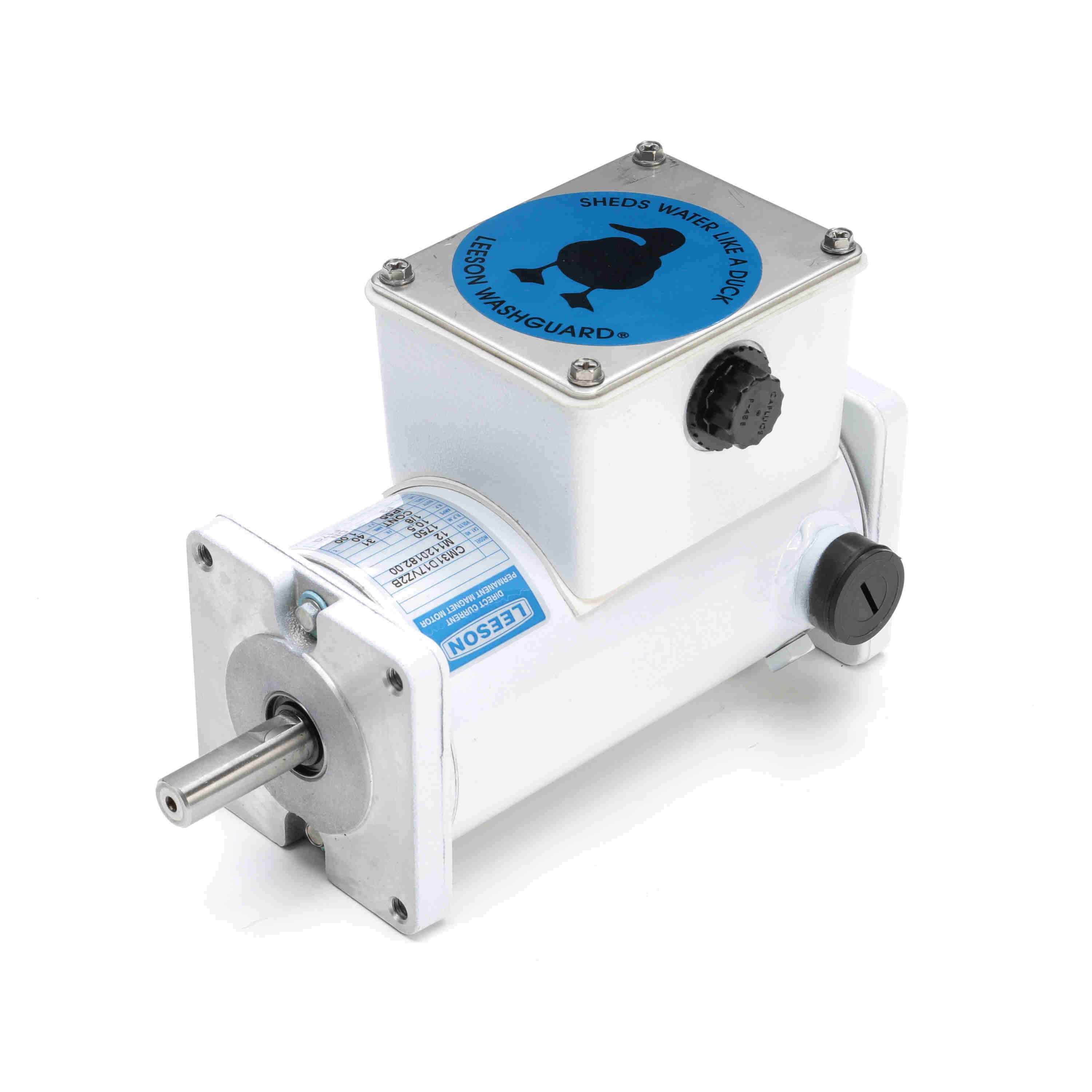

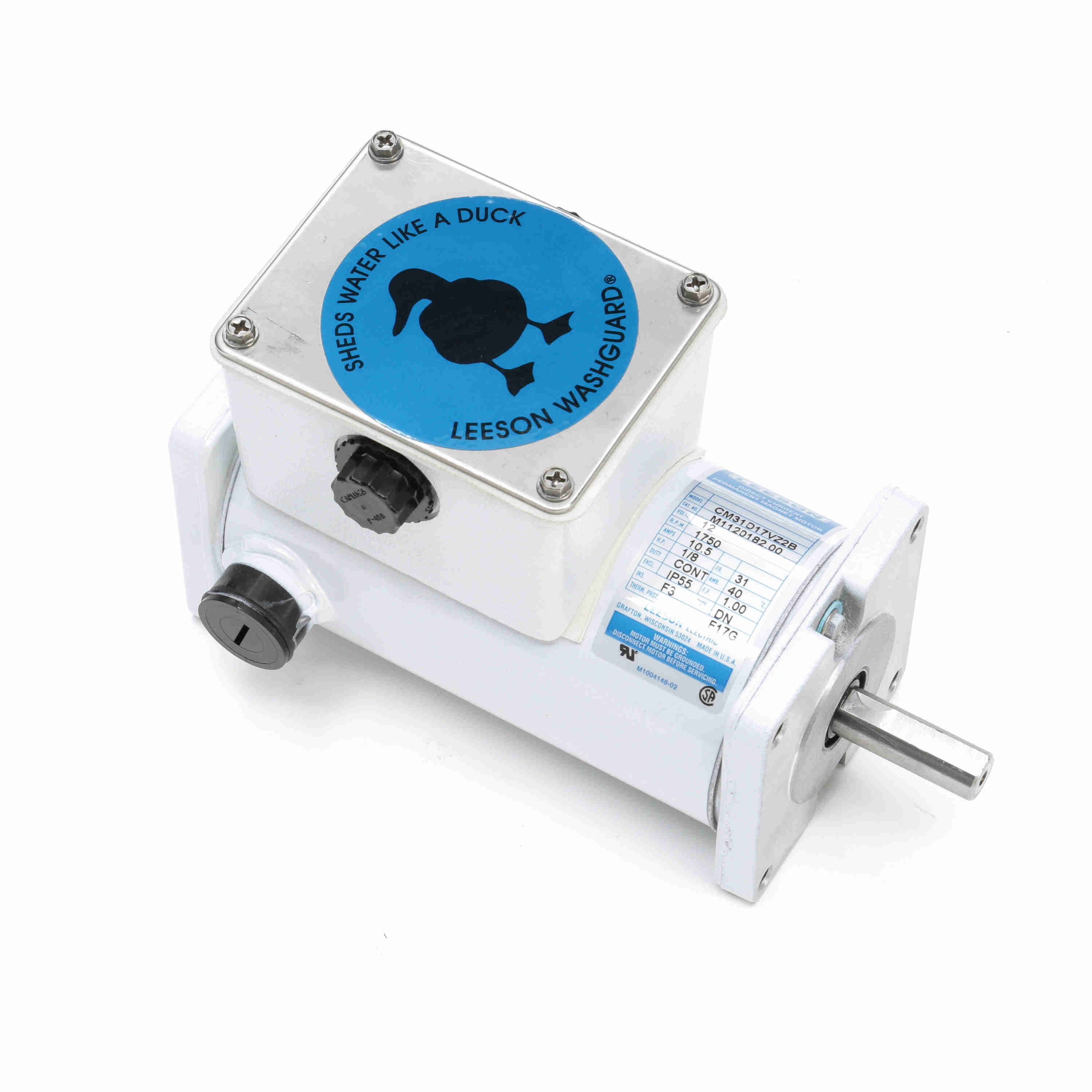

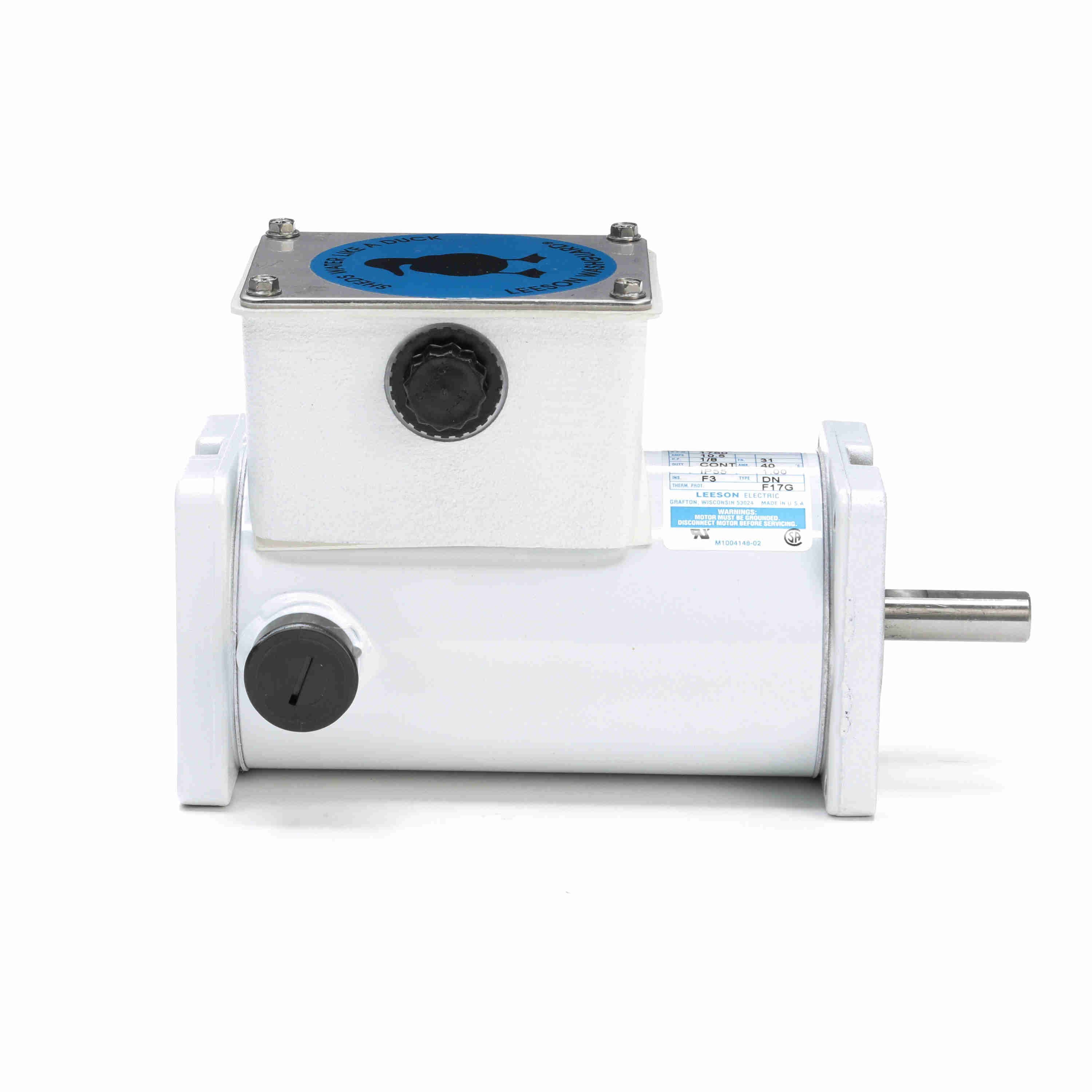

LEESON M1120182.00 CM31D17VZ2B Sub-Fractional Motor, 0.13 HP, 12V, 1750 RPM
Item: AJ2WVH
Model: M1120182.00
20 In Stock
Ships within 2 days via
£762.07/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Washdown Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 10.5A |
| Assembly | M1041142 |
| Color | White |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6201-13 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 74.7% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Finish | Epoxy Coated |
| Form Factor | 1 |
| Frame | 31 |
| Frame Length | 5 11/25" |
| Frame Material | Stainless Steel |
| Frame Size | 31 |
| Frame Suffix | Not Available |
| Full Load Amps | 10.5A |
| Full Load Torque | 72 oz.-in. |
| Grease Type | Polyrex EM |
| Height | 6.69" |
| Hp | 13/100 hp |
| Inertia | 5.8 oz./sq. in. |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Kw | 0.1 kW |
|---|---|
| Length | 16 1/2" |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Non Standard |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Square Flange |
| Opp. Drive End Bearing Size | 6201-13 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030969 |
| Output Kw | 0.1 kW |
| Overall Length | 9.57" |
| Packaging | M1307027.01 |
| Phase | 1 |
| Rotation | Reconn |
| Rotation Type | Reversible |
| Rpm | 1750 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Standard Logo | CSA.png, UL.png |
| Test Card | 01 |
| Thermal Protection | No Protection |
| Torque | 72 oz./in. |
| Type | Dn |
| Voltage | 12V |
| Winding | MD312286 |
Product Details
- Bearing OPE: 6201-13
- Bearing PE: 6201-13
- Eff 100%: 74.7%
- Nameplate: M100414802
- Winding: MD312286
- GROUP: 1 A
- Sub Group: A
- Paint: 305053.01
Shipping Information
| height | 16.99 |
|---|---|
| length | 41.91 |
| width | 19.51 |
| country of origin | US |
|---|---|
| weight | 3.150000 |
