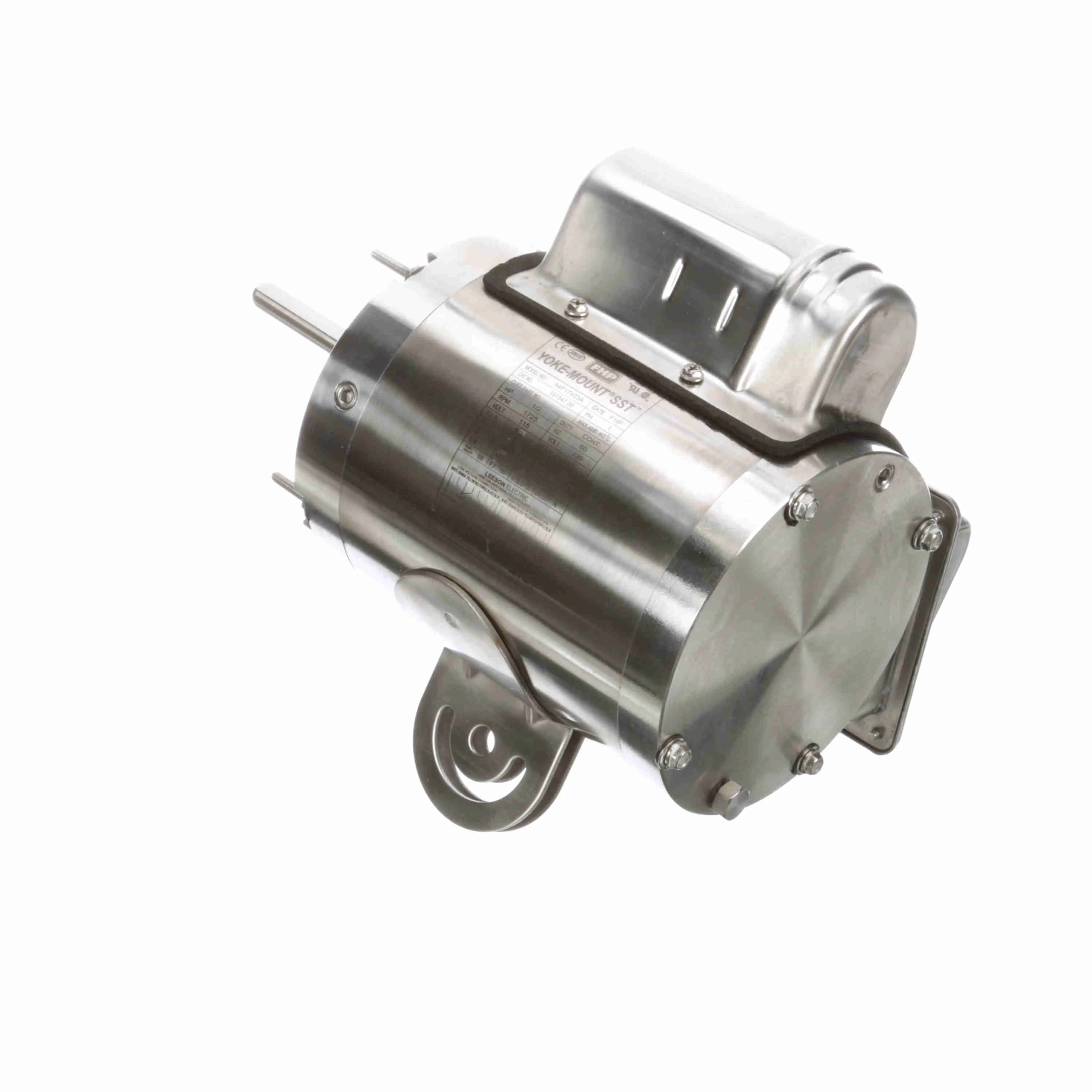

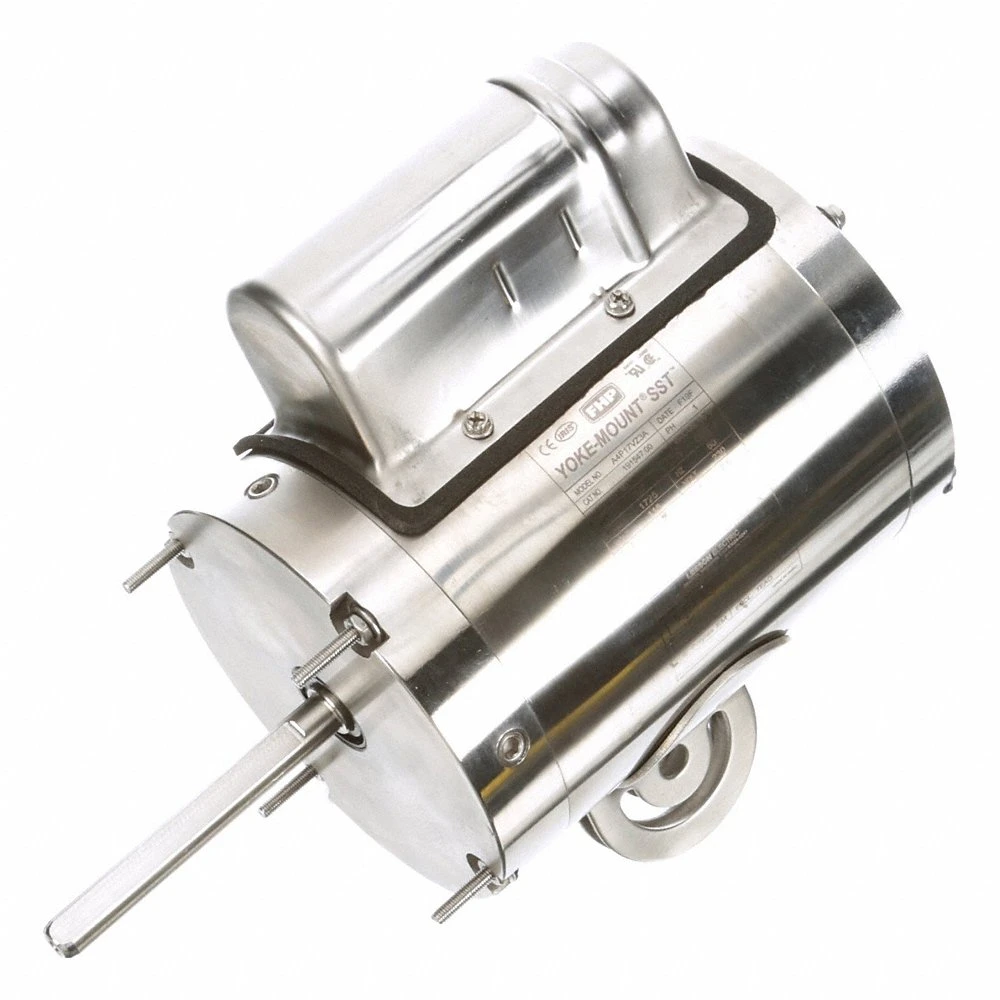

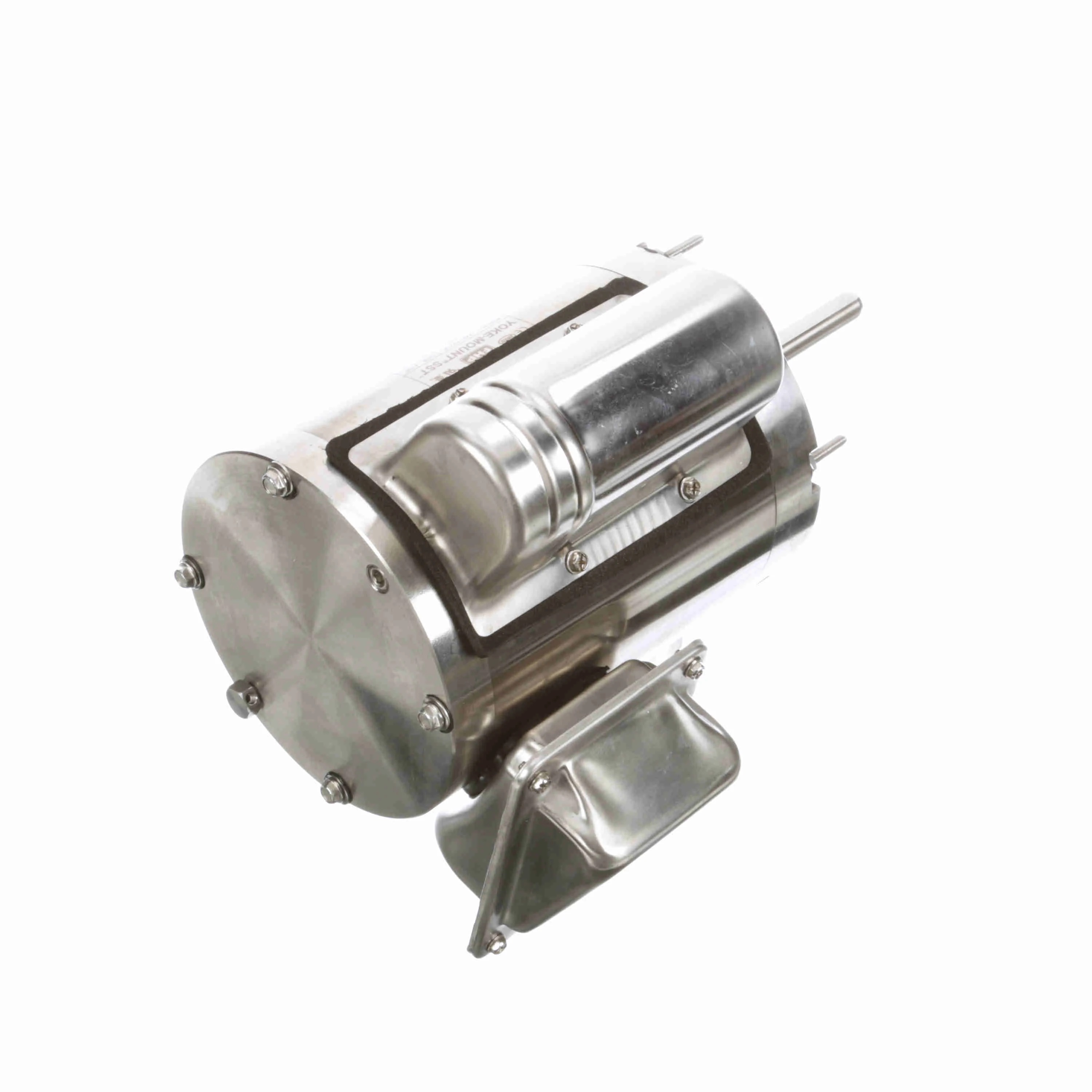

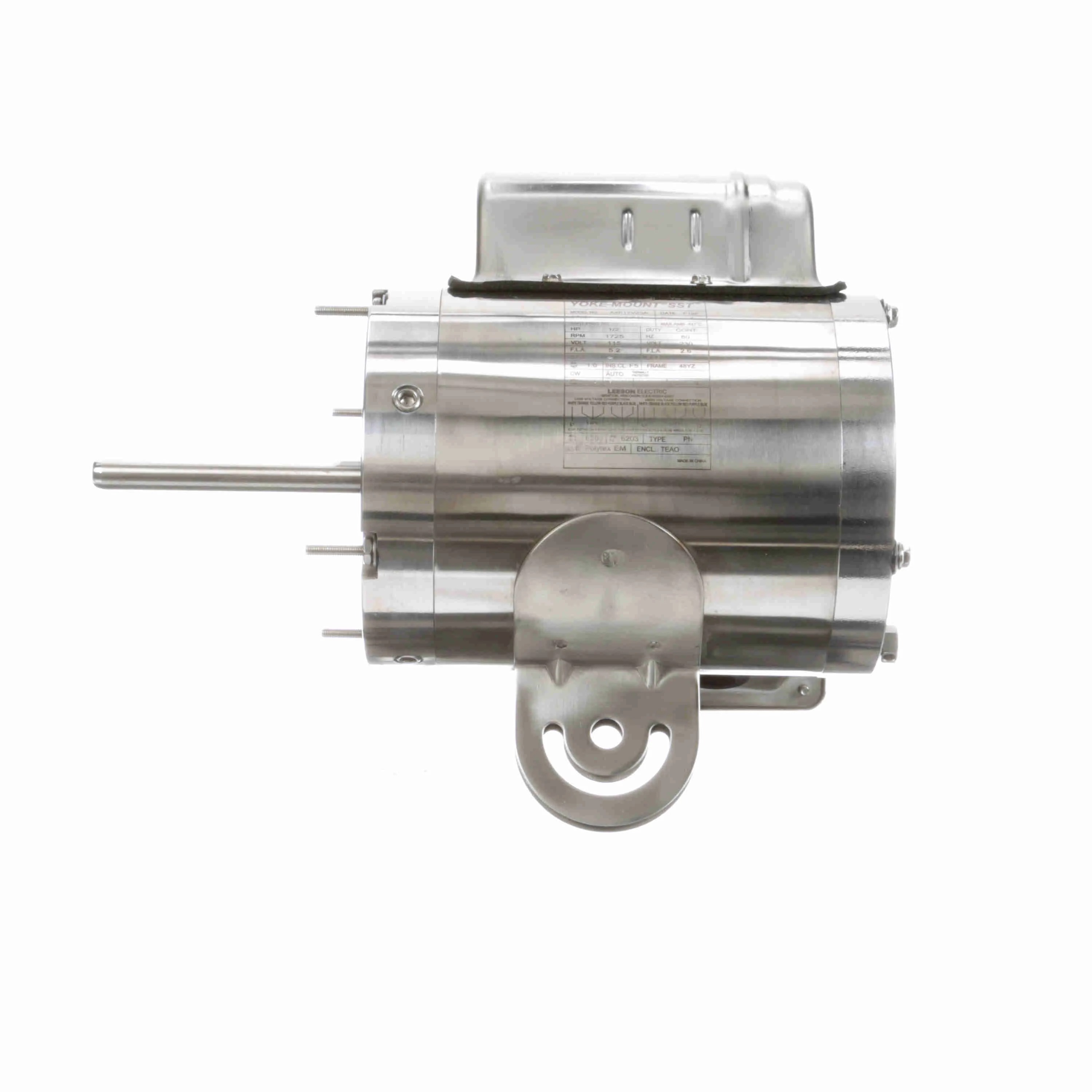

LEESON 191547.00 A4P17VZ3A Washdown Motor, Permanent Split Capacitor, 1/2 HP, 1750 RPM, 115/230V AC

Item: EA7UGP
Model: 191547.00
In Stock

Get it by Thursday, Apr 16

£2619.24
5.00% off
£2488.28/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Frame Type 48YZ
frequency 60 Hz
Full Load Amps 5.2/2.6A
Hp 1/2 hp
Insulation Class Class F
Motor Application Food Processing, General Purpose
Motor Design Permanent Split Capacitor
Motor Enclosure Design Totally Enclosed Air Over
Motor Mounting Type Stud
Motor Service Factor 1
Motor Shaft Rotation CW, CCW
Motor Sub Application Pedestal Fan, Bakery
Motor Thermal Protection Auto
No. Of Speeds 1
Nominal Voltage 115/230V AC
Phase 1
Rpm Range 1701-1800/1400-1800 RPM
Usable @ 208v No
Voltage 115/230V AC
Voltage Compatibility 115/230V AC

Product Details

Washdown Motor

Shipping Information

height 33.58
length 37.03
width 34.92
country of origin CN
weight 10.800000
