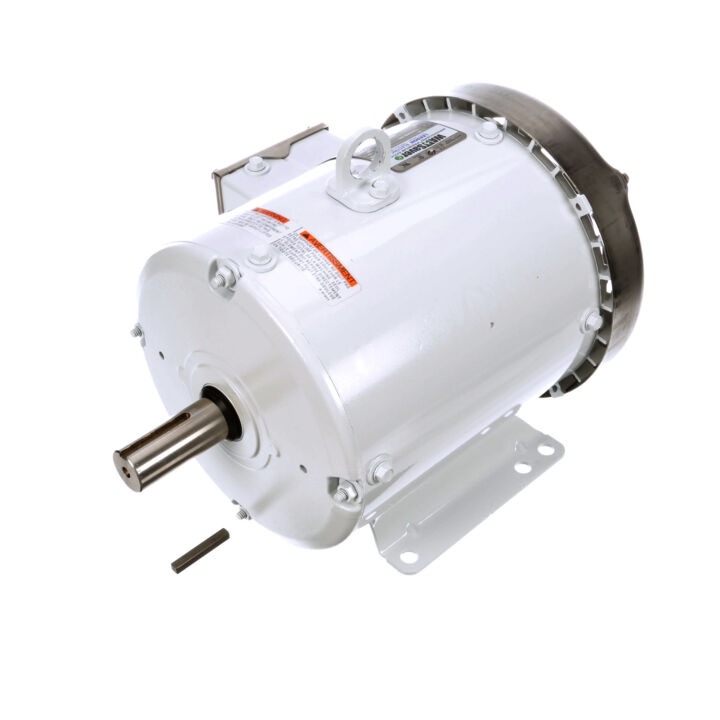

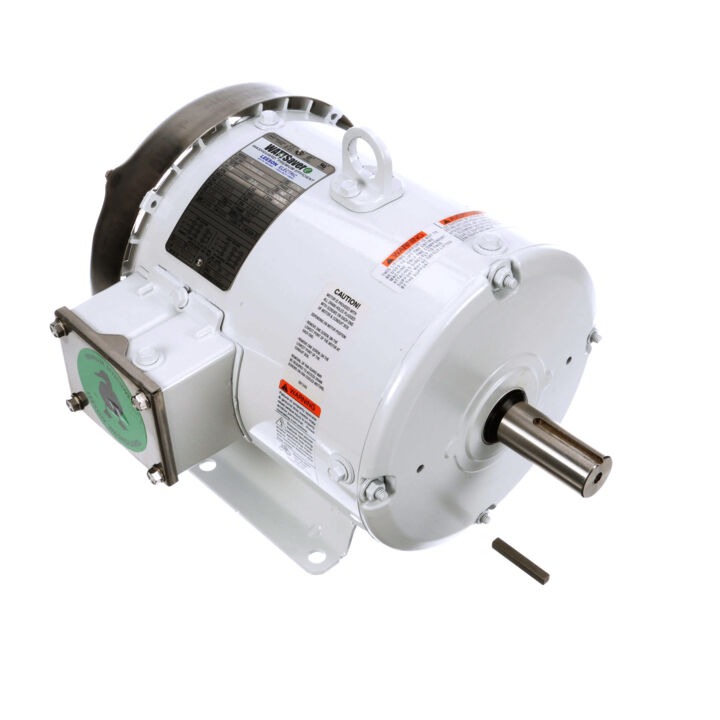

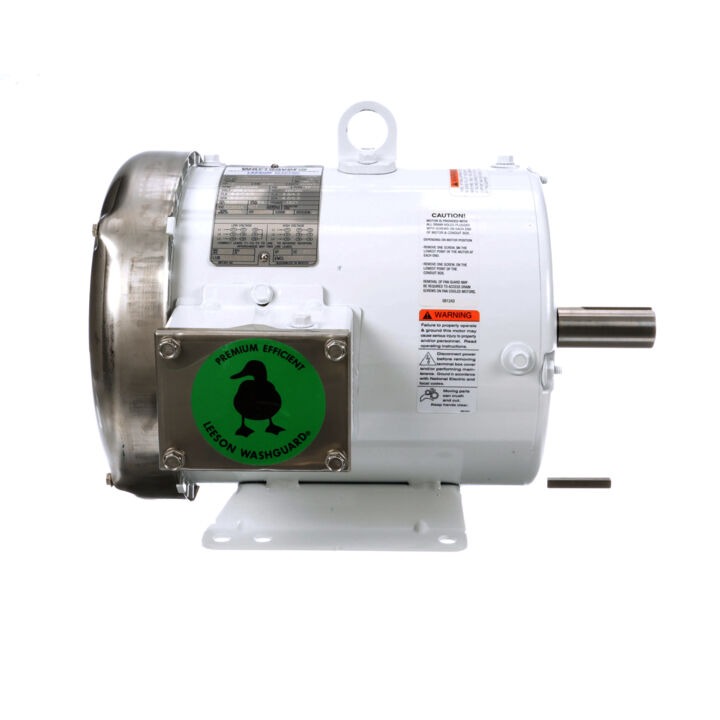

LEESON 132388.00 C182T34WB1A Washdown Motor, 3600 RPM, 3 HP

Item: EC3KZD
Model: 132388.00
In Stock

Get it by Thursday, Apr 16

£1131.76/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Composition Steel
Drive End Bearing Size 6207
Efficiency 86.5%
Electrical Phase Three Phase
Enclosure Totally Enclosed Fan Cooled
Family Series Leeson Motors
Frame Material Rolled Steel
Frequency 60 Hz
Insulation Class Class F
Kw 2.2 kW
Mounting Type Foot Mount
No. Of Poles 2
Nominal Voltage 208/240/480V AC
Opp. Drive End Bearing Size 6205
Phase 3
Rpm 3515 RPM
Service Factor 1.25
Shaft Dia. 1.125
Shaft Length 2.81
Type Washdown Duty
Voltage 208-230/460V
voltage (ac) 208V AC, 230V AC, 460V AC

Product Details

Washdown Motor

Shipping Information

height 27.64
length 49.53
width 26.52
weight 31.050000
