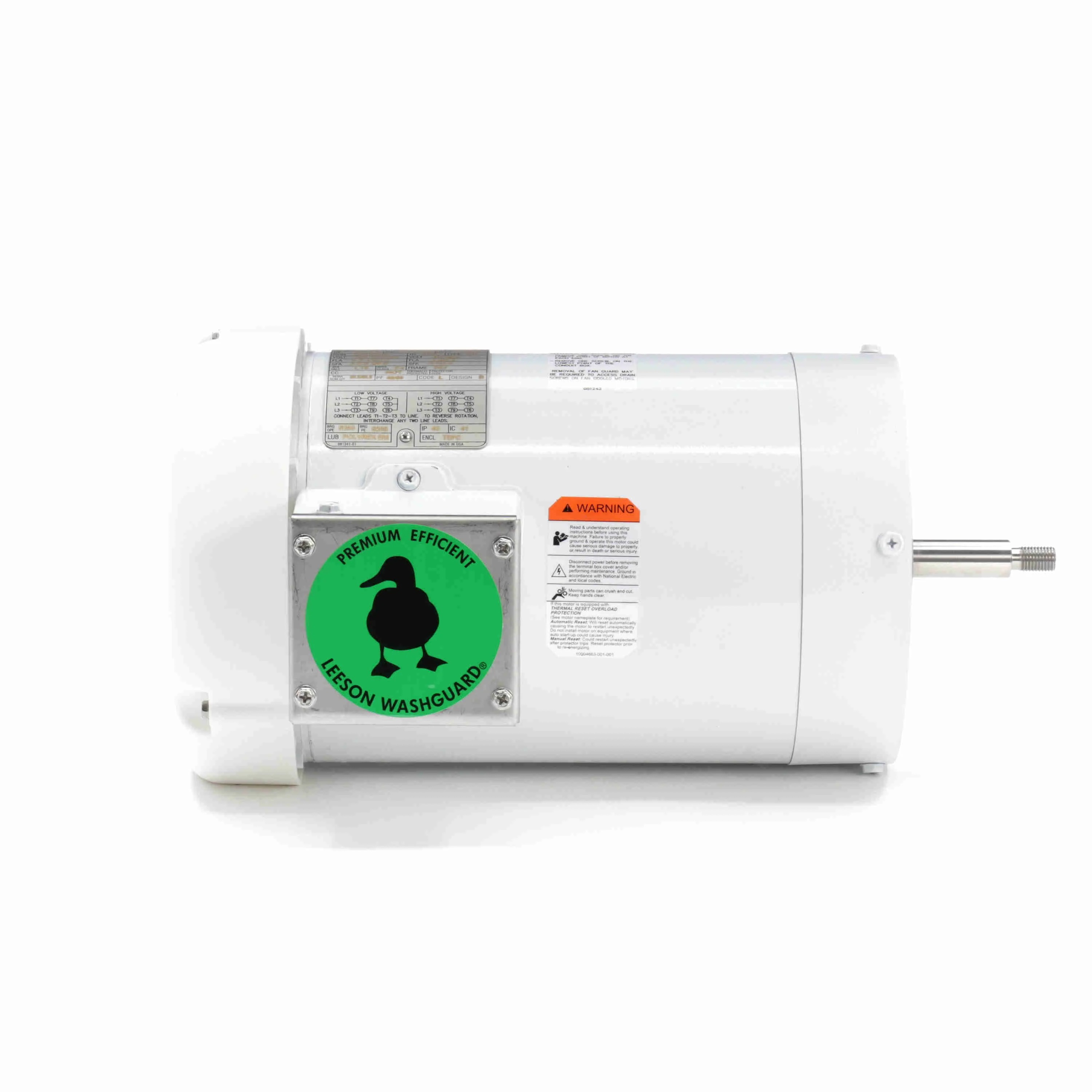

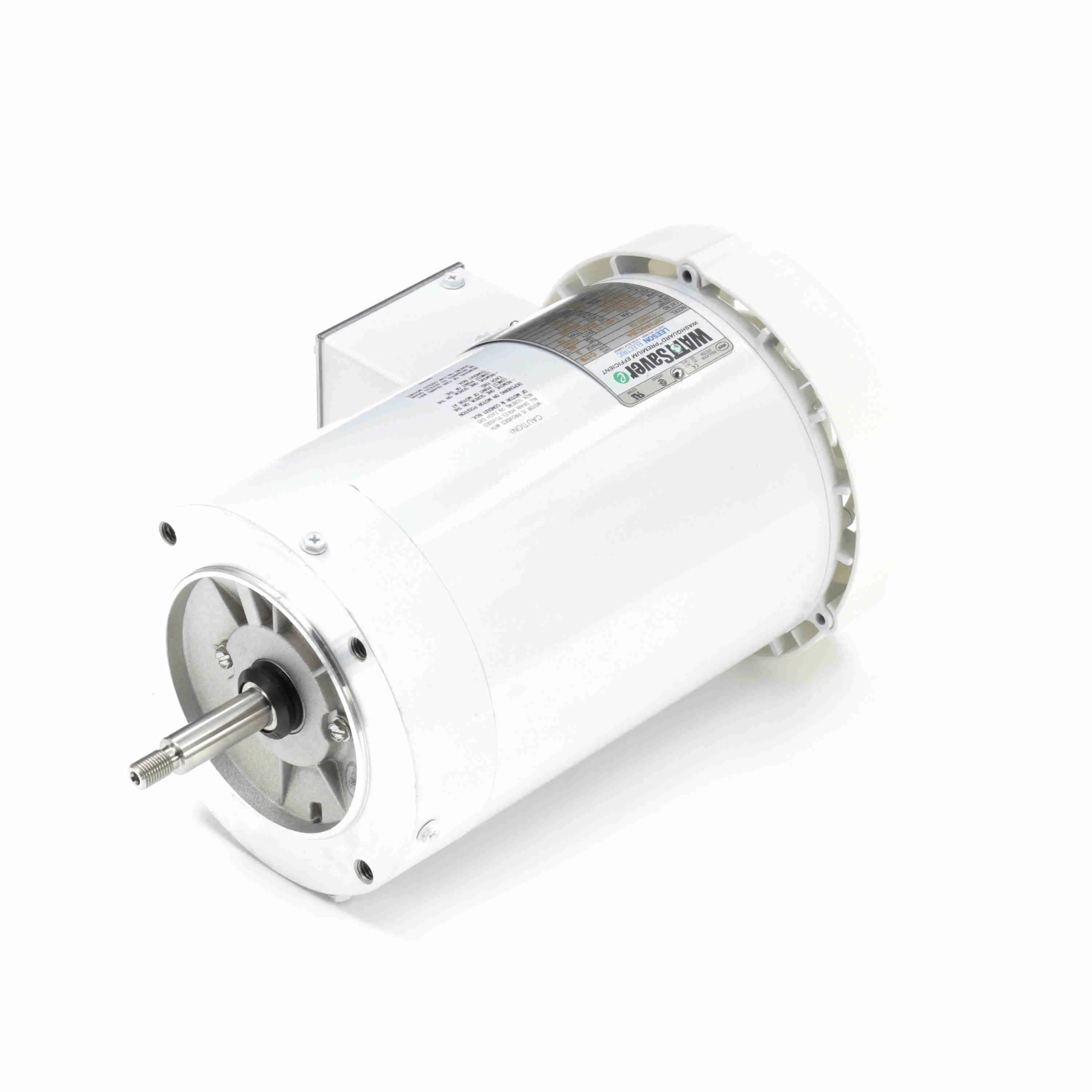

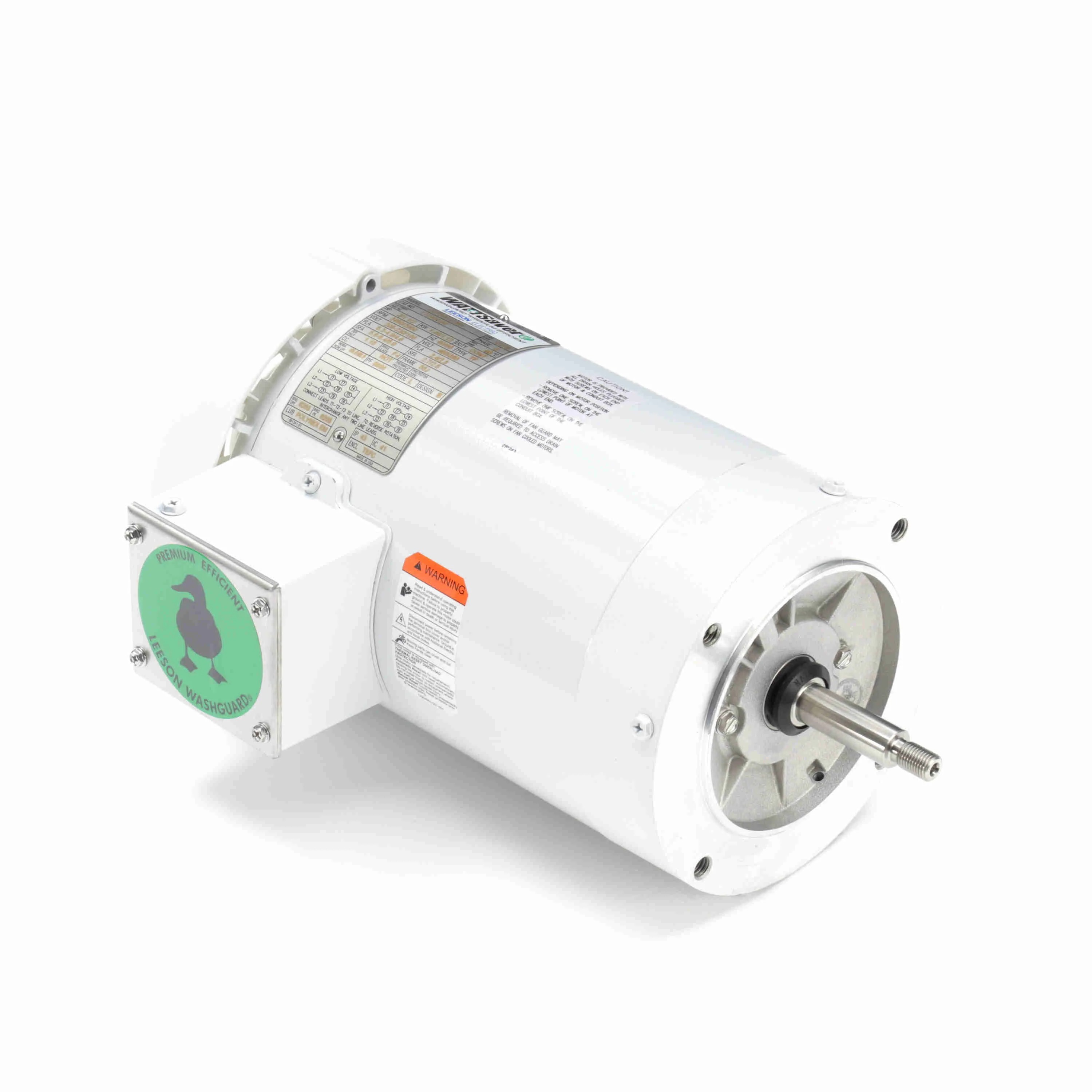

LEESON 119460.00 C6T34WC25A Jet Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Item: AJ2RCG
Model: 119460.00
In Stock

Get it by Wednesday, Apr 15

£1884.02
5.00% off
£1789.82/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Jet Pump Motor
Ambient Temp. 104°F
Amps 4.8/2.4A
Bearing Type Ball
Body Dia. 7.38"
Bolt Circle Dia. 5 7/8"
Cc Number CC005A
Code L
Color White
Conduit Box Position F1
Design B
Design Code B
Drain Plug (4) Each End, (2) In Conduit Box
Drain Plugs (4) Each End, (2) Conduit Box
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 85.5%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tefc
Endshield Material Cast Aluminum
Finish Epoxy Coated
Frame 56J
Frame Length 7 1/2"
Frame Material Rolled Steel
Frame Type 56J
Frequency 60 Hz
Full Load Amps 5.2-4.8/2.4A
Grease Type Polyrex EM
Height 10 22/25"
Hp 2 hp
Hz 50/60 Hz
Includes Splice Kit
Ins. Class Class F
Insulation Class Class F
Ip Code IP55
Kva Code L
Kw 1.5 kW
Length 19 1/2"
Length Less Shaft 10 7/16"
Lubrication Polyrex EM
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Max. Rpm 3490 RPM
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Orientation Horizontal
Motor Service Factor 1.15
Motor Shaft Design Threaded
Motor Shaft Rotation CWLE
Motor Sub Application Pool and Spa Pump
Motor Type Three Phase
Mounting Type Face
Nameplate Rpm 3490 RPM
Nema Design NEMA B
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 85.5%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Overall Length 13 7/8"
Packaging B
Phase 3
Power 1.49 kW
Power Factor 88
Product Type Washdown Jet Pump Motor
Removable Base No
Resistance Main 6.4 ohms
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 2 11/25"
Shaft Type J
Standard Logo ul.png
Standards Bissc, Ce, Csa, Ul
Starting Method Across The Line
Thermal Protection No Protection
Type TF
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230/460V
Width 10 11/25"
Motor Thermal Protection None

Product Details

    • Supersedes Leeson - 116777.00 / C6T34WC11B
    • Eff 100%: 85.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 081341
    • Winding: T632174
    • GROUP: 3
    • Paint: WHITE - LEESON (EPOXY)
    • S. F Amps: 5.8-5.4 / 2.7

Shipping Information

height 27.64
length 49.53
width 26.52
country of origin US
weight 19.980000
