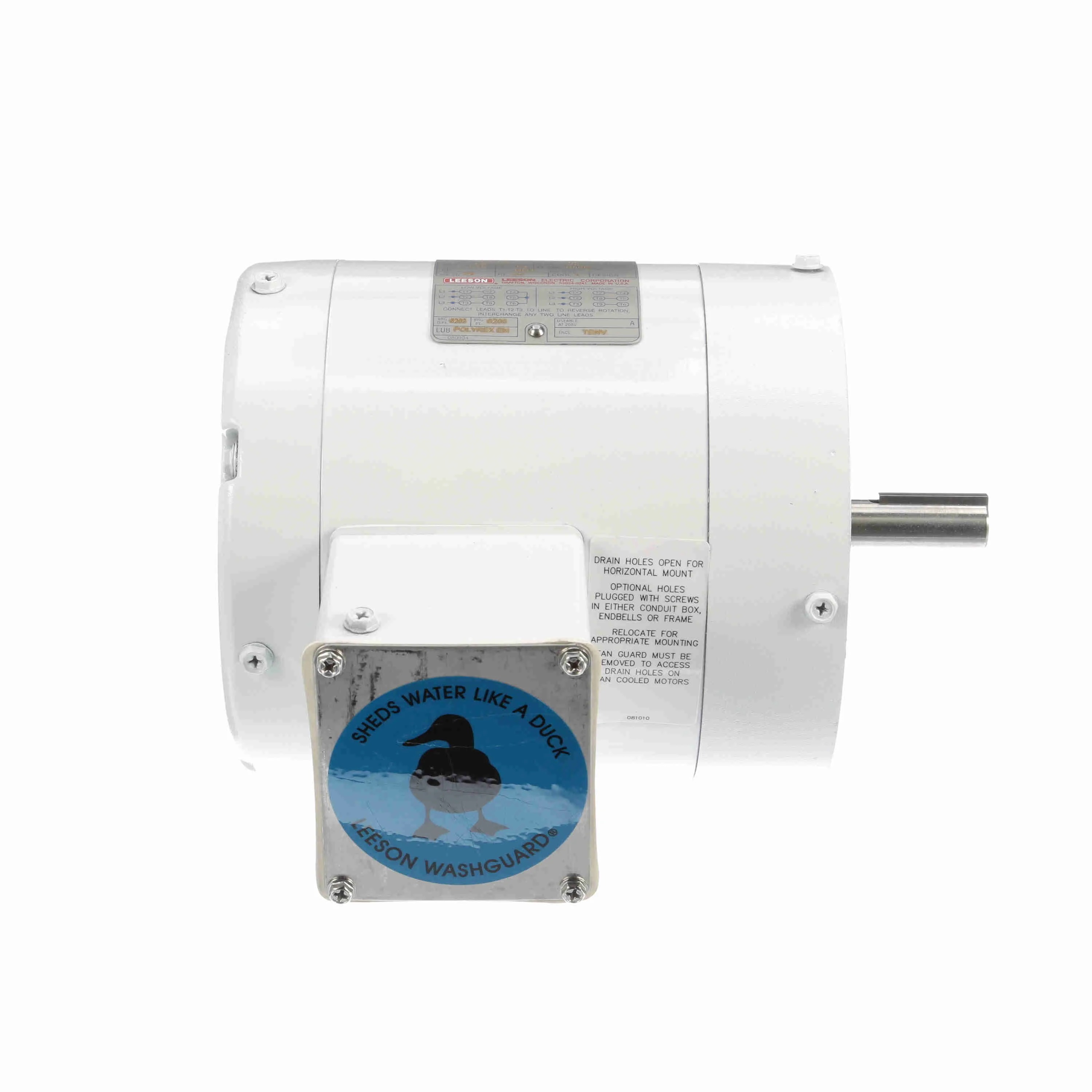

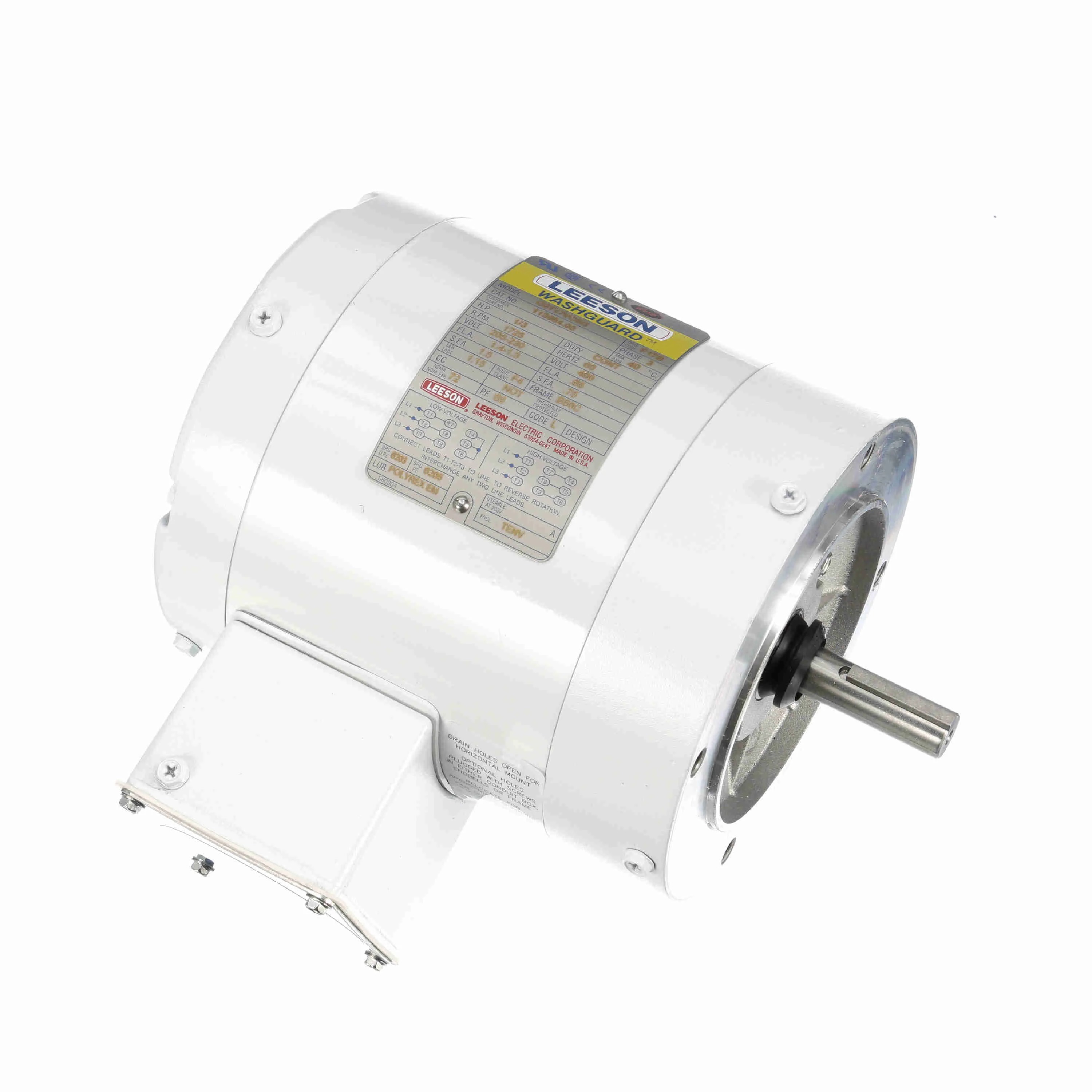

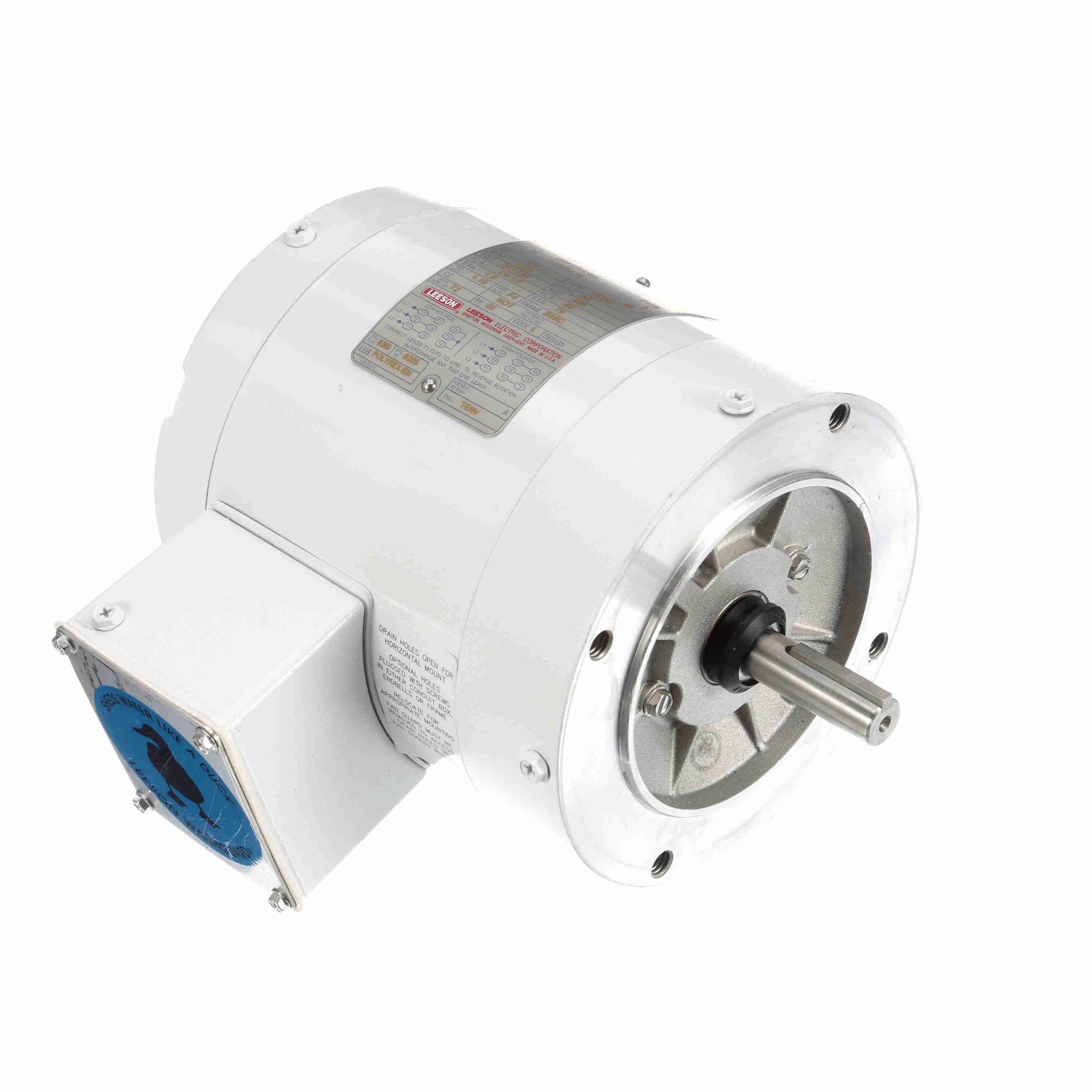

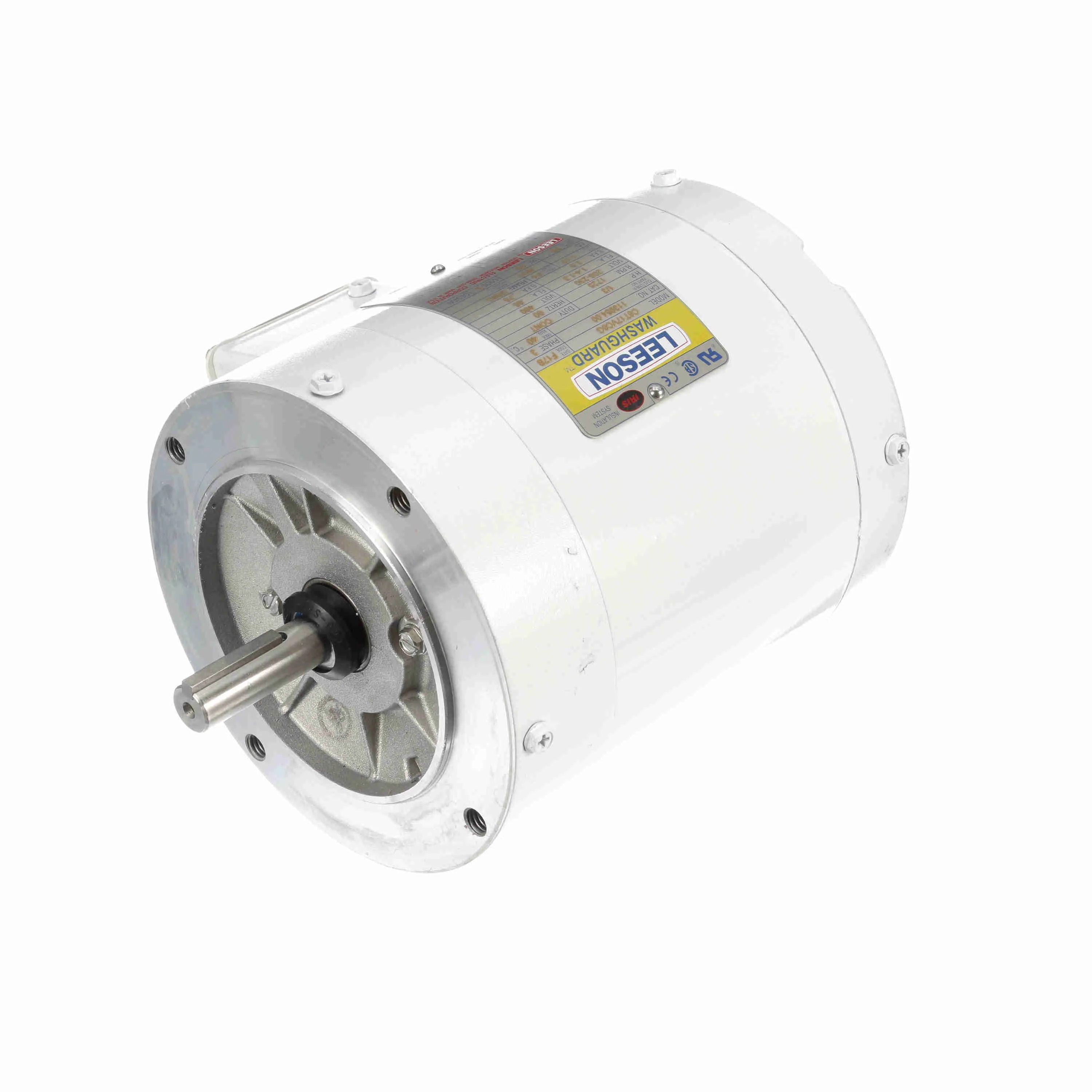

LEESON 113954.00 C6T17VC6G Washdown Motor, 0.33 HP, 60 Hz, 230/460V, 1800 RPM

Item: EC3KXG
Model: 113954.00
In Stock

Get it by Thursday, Apr 16

£647.94/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Amps 1.3A
Bolt Circle Dia. 5 7/8"
Compatible Part/model Number Marathon N641
Conduit Box Location Exterior
Ct Speed Range 1000:1
Efficiency Type Standard
Electrical Phase Three Phase
Enclosure Totally Enclosed Fan Cooled
Enclosure Type TENV (Totally Enclosed Non Ventilated)
Family Series Leeson Motors, Washguard Series
Full Load Amps 0.65A
Full Load Efficiency 72
Hp 1/3 hp
Kw 0.25 kW
Length Less Shaft 7 5/8"
Motor Enclosure Design Totally Enclosed Nonventilated
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Shaft Rotation Counterclockwise/Clockwise
Mounting Location C-Face Footless
Mounting Type C Face Less Base
Nameplate Amps 1.4-1.3/.65A
Nema Design B
No. Of Poles 4
No. Of Speeds 1
Nominal Voltage 208/240/480V AC
Opp. Drive End Bearing Size 6203
Overall Length 9.5625"
Phase 3
Power 33/100 hp
Rated Speed 1800 RPM
Rotation CCW, CW
Rpm 1800 RPM
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Speed Range 1701-1800 RPM
Standard Logo bissc.png, csa.png, ce.png, ul.png
Type Washdown
Usable @ 208v Yes
Voltage 208-230/460V AC

Product Details

Washdown Motor

Shipping Information

height 27.64
length 36.68
width 26.52
country of origin US
weight 9.900000
