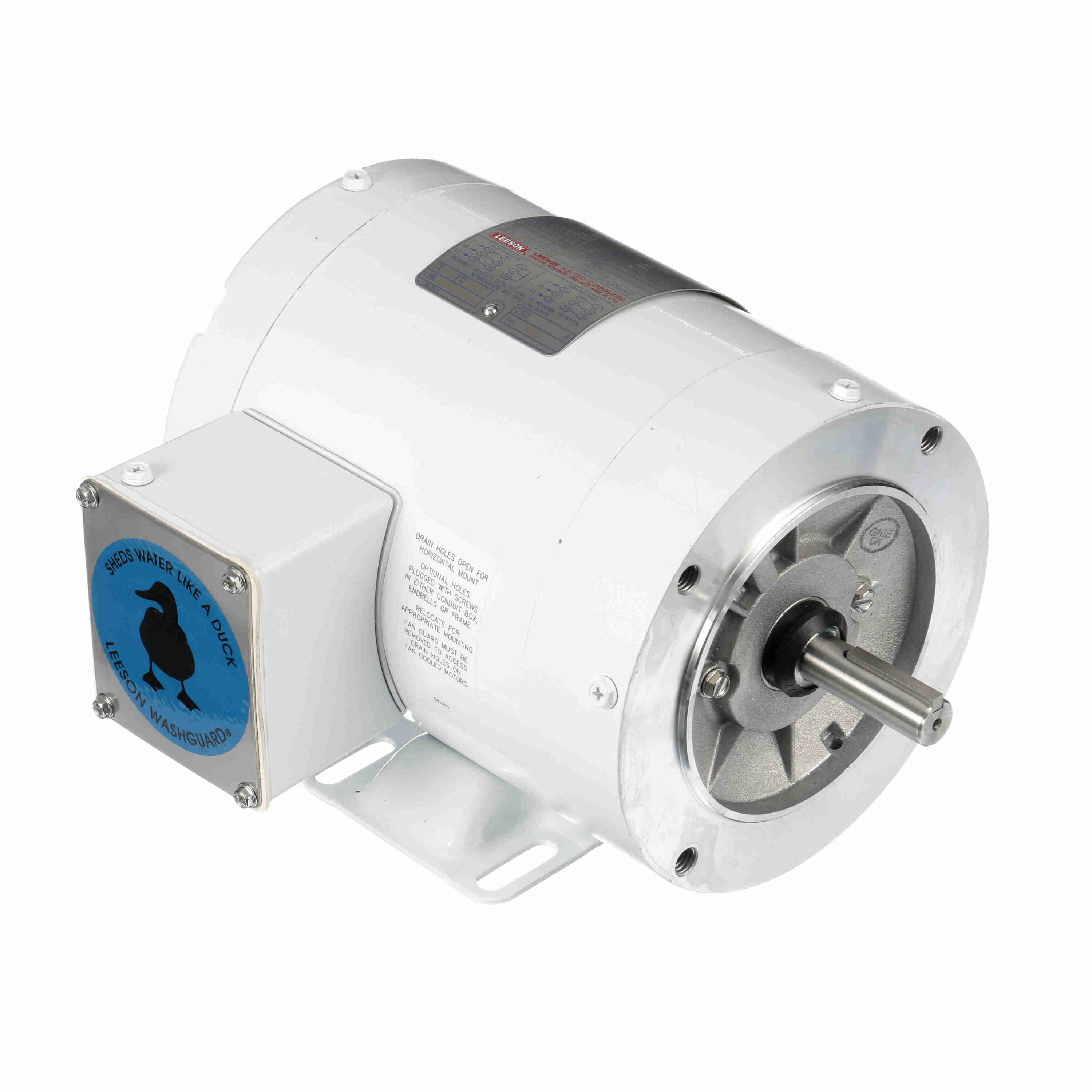

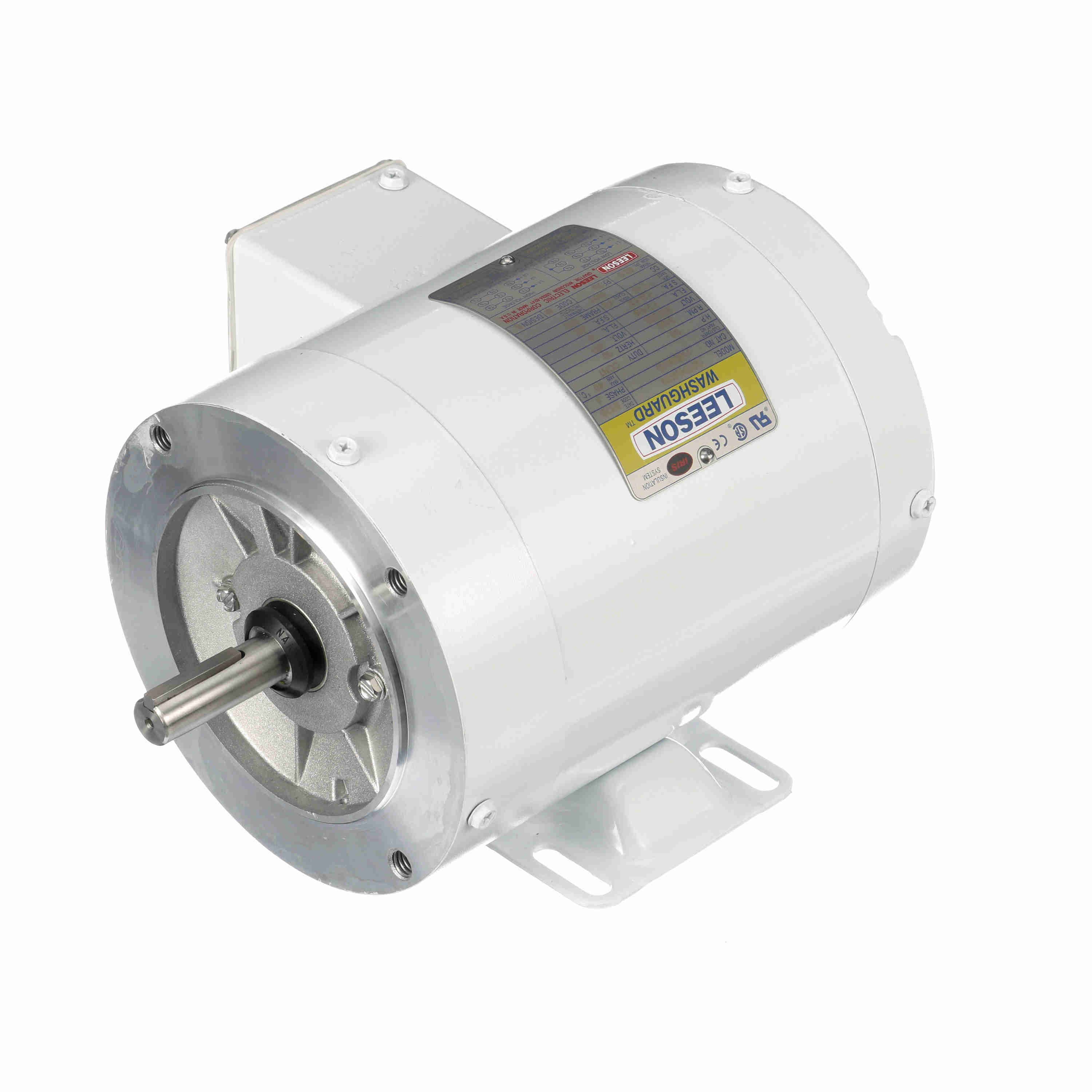

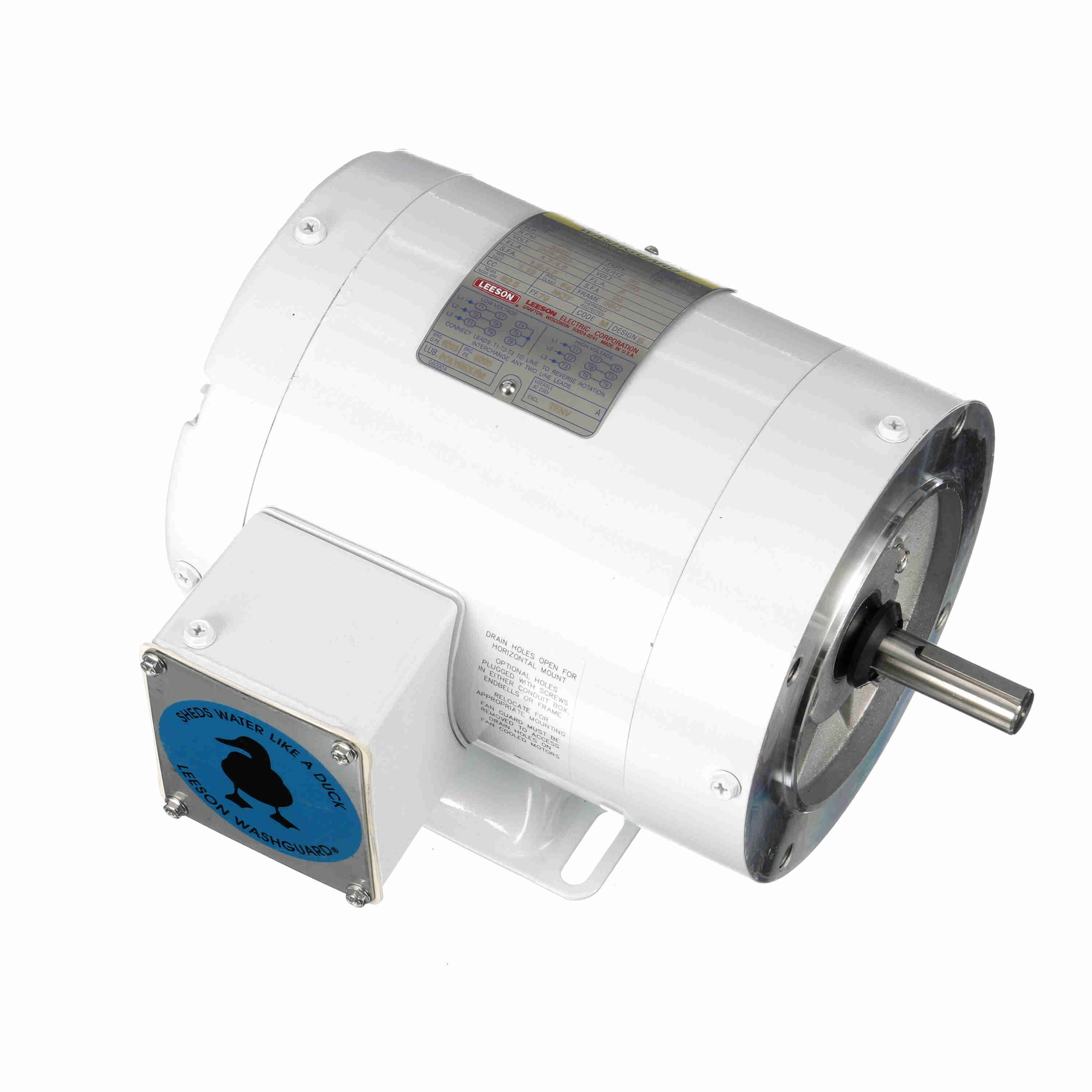

LEESON 113588.00 C6T34VK3H Washdown Motor, 0.50 HP, 60 Hz, 230/460V, 3600 RPM

Item: EC3KXE
Model: 113588.00
In Stock

Get it by Thursday, Apr 16

£689.96/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps Rating 1.7-1.6/0.8A
Composition Steel
Ct Speed Range 1000:1
Duty Cycle Continuous
Efficiency 82.5%
Electrical Phase Three Phase
Enclosure Totally Enclosed Non Ventilated
Enclosure Type TENV (Totally Enclosed Non Ventilated)
Family Series Leeson Motors, Washguard Series
Frequency 60 Hz
Insulation Type Class F
Mounting Type C Face Footed
No. Of Poles 2
Nominal Voltage 208/240/480V AC
Overall Length 10.58"
Phase 3
Rpm 3600 RPM
Service Factor 1.15
Standard Logo csa.png, ul.png
Type Washdown
Voltage 208-230V

Product Details

Washdown Motor

Shipping Information

height 27.64
length 36.68
width 26.52
country of origin US
weight 13.050000
