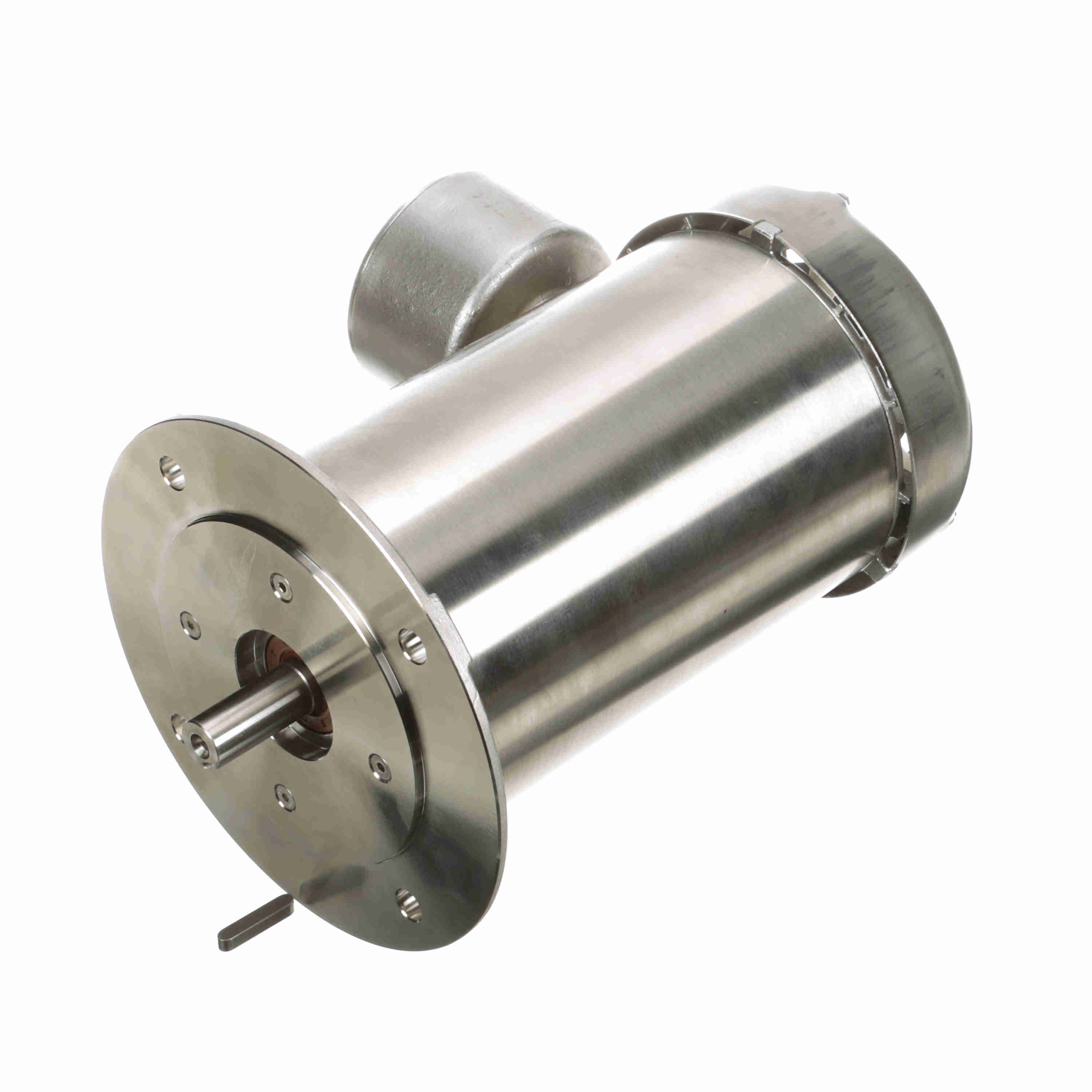

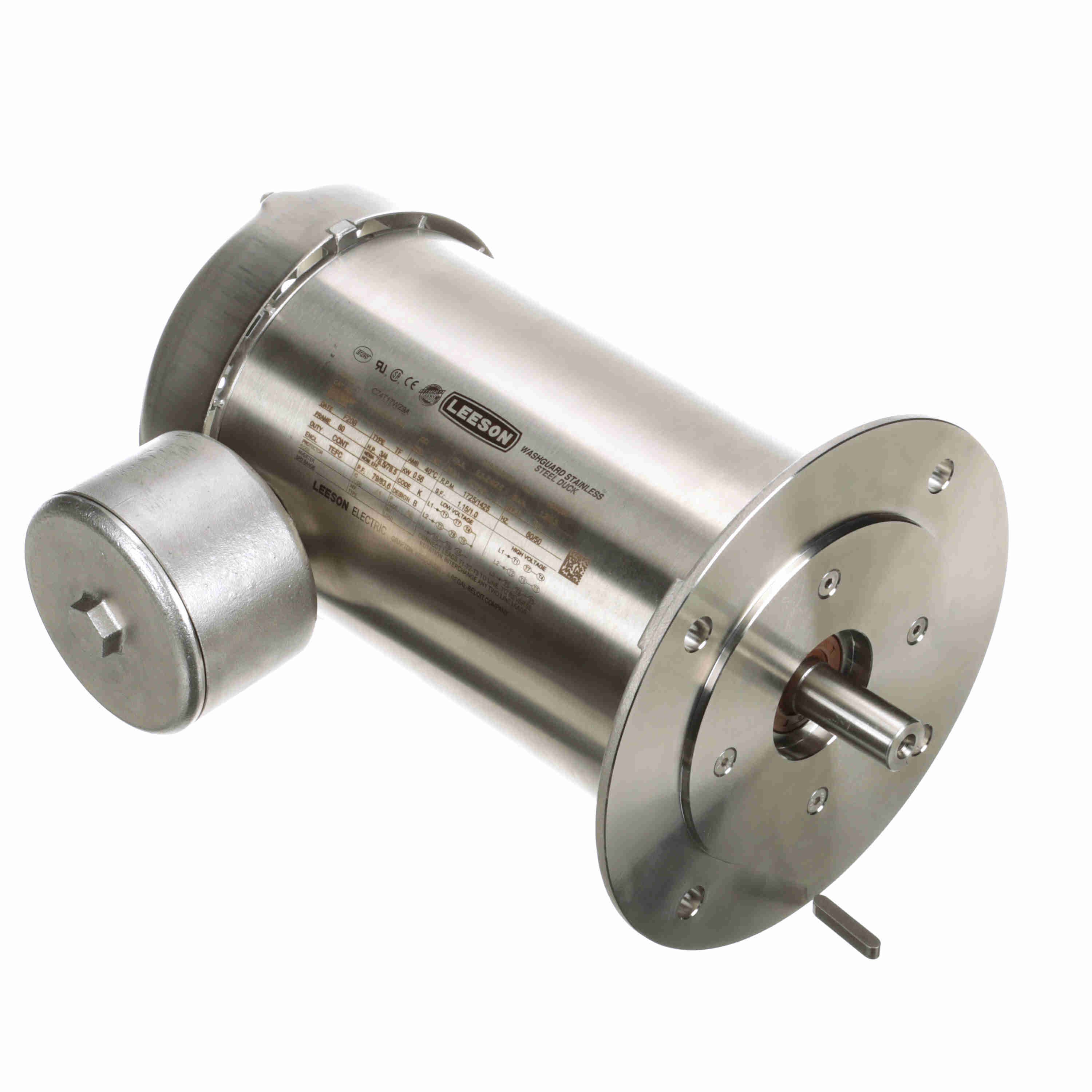

LEESON 103407.00 CZ4T17WZ9A Washdown Motor, 3/4HP, 1800 RPM, 230/460V, 60Hz

Item: EC3KWM
Model: 103407.00
In Stock

Get it by Thursday, Apr 16

£1989.55/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bearing Type Double Sealed
Composition Steel
Efficiency 77%
Efficiency Group 77
Electrical Phase Three Phase
Enclosure Totally Enclosed Fan Cooled
Family Series Leeson Motors, IEC Washguard Series
Frame 80
Frame Material Stainless Steel
Frame Size 80
Frequency 60 Hz
Full Load Amps 2.3A
Insulation F4
Motor Application General Purpose
Mounting Type C Face Less Base
Nominal Voltage 208/240/480V AC
Rated Speed 1800 RPM
Rotation Reversible
Rpm 1800 RPM
Service Factor 1.15
Standard Logo csa.png, ul.png
Type IEC, Washdown
Washdown Duty Yes

Product Details

Washdown Motor

Shipping Information

height 27.64
length 36.68
width 26.52
country of origin US
weight 17.100000
