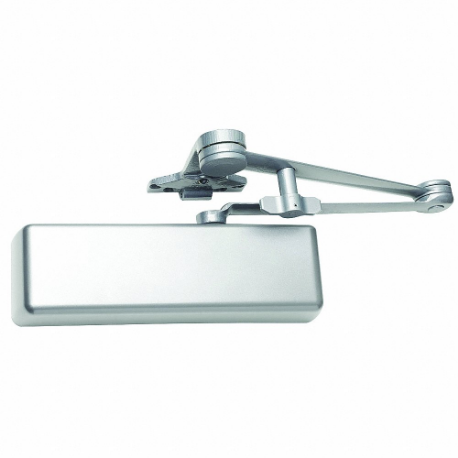

LCN 4031-HCUSH AL Door Closer, Hold Open, Non-Handed, 10 3/8 Inch Housing Lg, 2 3/4 Inch Housing Dp
Item: CR8NRK
Model: 4031-HCUSH AL
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹1036.130000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ada Compliant | Yes |
|---|---|
| Arm Material | Forged Steel |
| Arm Type | Parallel |
| Closer Mounting Style | Surface |
| Closer Mounting Type | Parallel |
| Closer Series | 4031 Series |
| Closer Stop Type | Standard |
| Closer Type | Hold Open |
| Color | Gray |
| Door Width Campatibility | 47 124/125" |
| Energy Source | Hydraulic |
| Exterior Door Width | 36" |
| Exterior Door Width - Maximum | 36" |
| Finish | Aluminum Painted |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 1" |
| Housing Depth | 2 3/4" |
| Housing Height | 5" |
| Housing Length | 10 3/8" |
| Hydraulic/pneumatic | Hydraulic |
| Includes | Metal Cover |
| Includes Hardware | Hardware Included |
| Interior / Exterior | Interior |
|---|---|
| Interior Door Width | 48" |
| Length Between Mounting Holes | 1 23/32" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max Door Opening Angle | 180° |
| Max. Door Opening | 180° |
| Mounting Hardware | Included |
| Mounting Style | Parallel Arm |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Projection | 1 3/4" |
| Projection From Wall | 1 3/4" |
| Spring Size | 4 |
| Spring Size - Minimum | 1 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10C |
| standard | ANSI A156.4, BAA |
Product Details
Door Closer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 4.405500 |
Related Products
| Style | Model | Hand Orientation | Closer Type | Spring Type | Spring Size | Manual/automatic | Hydraulic/pneumatic | Closer Mounting Style | Arm Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4811-STD AL | Non Handed | Non Hold Open | Adjustable | 4 | Manual | Pneumatic | Surface | Track | 3,375.81 | |
| B | 4011-REG LH AL | Left-Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Regular | 885.60 | |
| B | 4011-REG RH AL | Right Hand | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Regular | 856.86 | |
| C | 4040XP-CUSH AL | Non Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Parallel | 833.22 | |
| D | 4040XP-CUSH DKBRZ | Non Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Parallel | 1,019.52 | |
| E | 4040XP-HW/PA AL | Non Handed | Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | - | 949.81 | |
| F | 4040XP-HW/PA DKBRZ | Non Handed | Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | - | 903.75 |
