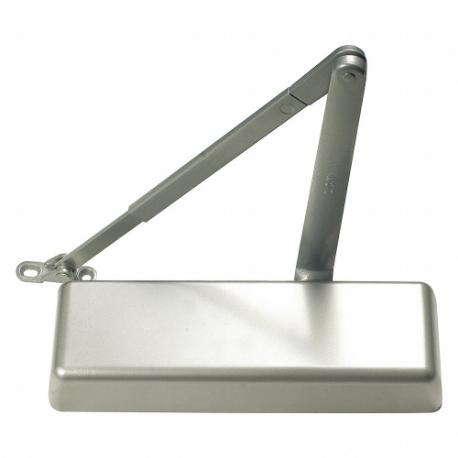

LCN 4011-REG LH AL DEL Surface Closer, Non Hold Open, Left Hand, 12 1/8 Inch Housing Length

Item: CR8NVZ
Model: 4011-REG LH AL DEL
17 In Stock

Ships within 2 days via

£934.49
5.00% off
£887.76/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ada Compliant Yes
Arm Material Cast Iron
Arm Type Regular
Closer Mounting Style Surface
Closer Mounting Type Standard
Closer Series 4010 Series
Closer Stop Type Spring
Closer Type Non Hold Open
Color Gray
Door Handing Left Hand
Door Width Campatibility 54"
Energy Source Hydraulic
Exterior Door Width - Maximum 42"
Features All Weather Fluid, Application Specific Handed, Double Heat Treated Steel Pinion Journal
Finish Aluminum Painted
Hand Orientation Right Handed
Height Between Mounting Holes 2 1/2"
Housing Depth 2.234"
Housing Height 3 1/2"
Housing Length 12 1/8"
Hydraulic/pneumatic Hydraulic
Includes Hardware Hardware Included
Interior / Exterior Interior And Exterior
Length Between Mounting Holes 6"
Ligature Resistance Not Ligature Resistant
Ligature Resistant No
Location Use Interior/Exterior
Manual/automatic Manual
Material Cast Iron
Max Door Opening Angle 140°
Max. Door Opening 140°
Mounting Hardware Included
Mounting Style Regular
Operation Style Manual
Performance Rating Grade 1 Heavy Duty
Product Type Door Closer
Projection 2 1/4"
Projection From Wall 2 1/4"
Spring Size 6
Spring Size - Minimum 1
Spring Type Adjustable
standard ANSI/BHMA A156.4 GRADE 1, UL AND CUL LISTED

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 4.414500
