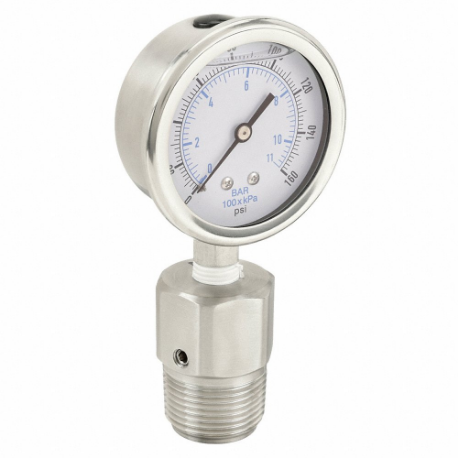

KODIAK CONTROLS KC301L25160/DSF14-M Pressure Gauge With Diaphragm Seal, 0 To 160 PSI, Kc301/Dsm35Flush, 2 1/2 Inch Dial

Item: CR7KGJ
Model: KC301L25160/DSF14-M
24 In Stock

Ships within 2 days via

£320.65
5.00% off
£304.61/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Accuracy -1.6% to +1.6%
Accuracy Scale Full Scale
Adjustable Pointer No
Ambient Operating Temperature Range 20°F to 160°F
Ambient Temp. Range +20°F to +160°F
Application Chemical Industries, Highly Corrosive, Hydraulics, Pumps, R/O Systems
Bezel Mounting Type Crimped
Blowout Safety Back No
Calibration Certificate Included NIST With Data
Case Color Stainless Steel
Case Construction Corrosion Resistant
Case Depth 1 7/25"
Case Dia. 2 4/5"
Case Diameter 2.8"
Case Grade Grade 304
Case Material Stainless Steel
Cleaned For Oxygen Service No
Clog Resistant Yes
Compatible Process Media Paints, Pastes, Syrups, Waste Water
Dial Color White
Diaphragm Seal Process Connection Threaded
Diaphragm Seal Type Welded
Dry Dampening Feature None
Field Fillable Yes
Freeze Resistant Movement No
Gauge Case Liquid Glycerin
Gauge Case Material Stainless Steel
Gauge Case Material Grade Grade 304
Hazardous Location Rating Not Rated
Includes Mini Flush Diaphragm Seal
Includes Mounting Hardware No
Includes Vent Plug No
Ip Rating, Nema Rating NEMA 4X
Lens Material Polycarbonate
Liquid-filled Case Yes
Manufacturer Warranty Length 1 yr.
Mfr. Series KC301, DSM35FLUSH
Mounting Type Stem Mount
Nominal Dial Size 2 1/2"
Panel-mountable No
Pointer Color Black
Pointer Material Aluminum
Pressure Gauge Type Industrial Pressure Gauge With Diaphragm Seal
Pressure Range 0 psi to 160 psi
Pressure Range Type Pressure
Primary Pressure Range 0 to 160
Primary Scale Minor Graduations 2
Primary Scale Numeric Increments 20.0
Primary Scale Units Psi
Process Connection 1/4" NPT Male
Process Connection Gender Male
Process Connection Location Bottom
Process Connection Size 1/4"
Process Connection Type NPT
Process Temperature Range -40°F to +328°F
Removable Bezel No
Scale Type Dual
Seal Compatible Process Media Air or Liquid Compatible with 316SS
Seal Connection Size 1"
Seal Diaphragm Grade Grade 316
Seal Diaphragm Material Stainless Steel
Seal Diaphragm Material Grade Grade 316
Seal External Grade Grade 316
Seal External Material Stainless Steel
Seal Fill Liquid Mineral Oil
Seal Lower Housing Grade Grade 316
Seal Lower Housing Material Stainless Steel
Seal Maximum Working Pressure 2500 psi
Seal Process Temperature Range -40°F to +328°F
Secondary Pressure Range 0 Bar to 11 Bar
Secondary Pressure Scale Color Blue
Secondary Scale Units Bar
Sensor Grade Grade 316
Sensor Material Stainless Steel
Socket Grade Grade 316
Socket Material Stainless Steel
Standard Logo nist.png
Standards NIST
Vibration Resistance Liquid Filled
Wetted Materials Stainless Steel
Wetted Parts Grade Grade 316
Wetted Parts Material 316 Stainless Steel, 316 Stainless Steel

Product Details

Seal

Shipping Information

height 2.54
length 2.54
width 2.54
weight 0.562500
