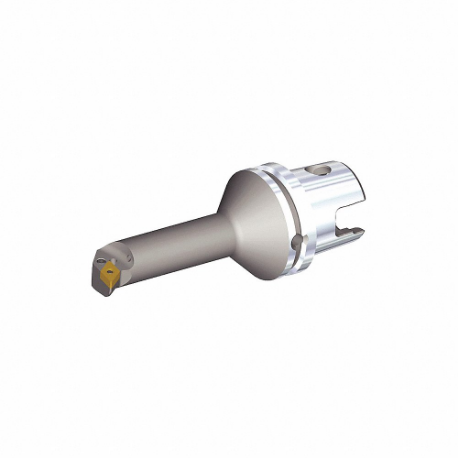

KM SYSTEMS KM63XMZS25KPDUNR11Y Indexable Cutting Head Unit, Dn Insert, 55 Degree Diamond, 0 Degree Insert Clearance Angle
Item: CR7HEH
Model: KM63XMZS25KPDUNR11Y
19 In Stock
Ships within 2 days via
5.00% off
£1081.31/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ansi Code | KM63XMZS25KPDUNR11Y |
|---|---|
| Ansi Number | KM63XMZS25KPDUNR11Y |
| Axial Rake Angle | -5° |
| Center To Cutting Tip | 17 mm |
| Coolant Fed | Coolant Through |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Insert Angle | 55° |
| Insert Clearance Angle | 0° |
| Insert Cutting Edge Length | 11.63 mm |
| Insert Holding Type | P-Clamping (Lever Lock Or Lock Pin) |
| Insert Shape | Diamond |
| Insert Size | 110408 (332) |
|---|---|
| Insert Style | Dn |
| Iso Number | KM63XMZS25KPDUNR11Y |
| Max. Bore Depth | 87.5 mm |
| Min. Bore Dia. | 32 mm |
| Number Of Coolant Holes | 1 |
| Overall Length | 164.95 mm |
| Radial Rake Angle | -12° |
| Rake | -12° Radial, -5° Axial |
| Shank Dia. | 63 mm |
| Side Cutting Edge Angle | -3° |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 2.480400 |
