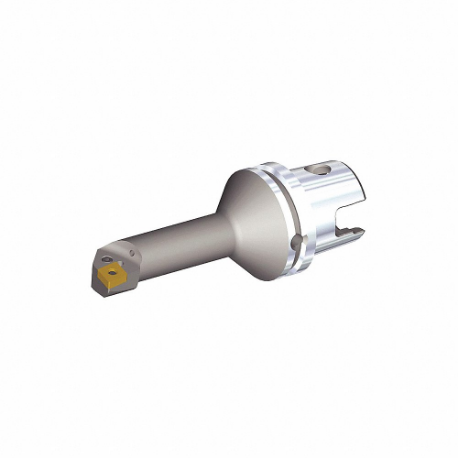

KM SYSTEMS KM63XMZS25KPCLNLF12Y Indexable Cutting Head Unit, Cn Insert, 80 Degree Diamond, 0 Degree Insert Clearance Angle

Item: CR7HBM
Model: KM63XMZS25KPCLNLF12Y
23 In Stock

Ships within 2 days via

£1150.21
5.00% off
£1092.71/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code KM63XMZS25KPCLNLF12Y
Ansi Number KM63XMZS25KPCLNLF12Y
Approach Angle 95°
Axial Rake Angle -5°
Center To Cutting Tip 17 mm
Coolant Fed Coolant Through
Cutting Application Boring
Cutting Direction Left Hand
Insert Angle 80°
Insert Clearance Angle 0°
Insert Cutting Edge Length 12.9 mm
Insert Holding Type P-Clamping (Lever Lock Or Lock Pin)
Insert Shape Diamond
Insert Size 120408 (432)
Insert Style Cn
Iso Number KM63XMZS25KPCLNLF12Y
Max. Bore Depth 87.5 mm
Min. Bore Dia. 32 mm
Number Of Coolant Holes 1
Overall Length 164.95 mm
Radial Rake Angle -12°
Rake -12° Radial, -5° Axial
Shank Dia. 63 mm

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.121000
