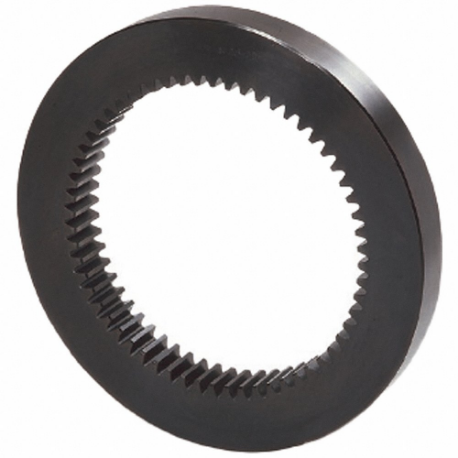

KHK GEARS SI0.8-100 Internal Ring Gear, Module m 0.8, 100 Teeth, 80 mm Pitch Dia
Item: CR6MXR
Model: SI0.8-100
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹194.230000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Face Width | 8 mm |
|---|---|
| Finish | Black Oxide |
| Gear Shape | T1 |
| Grade | Grade S45C |
| Inside Dia. | 78.4 mm |
| Material | Carbon Steel |
| Material Grade | S45C |
| Maximum Teeth Hardness | 194 HB |
| Metric Module Pitch | 0.8 |
| Module Pitch | 0.8 |
|---|---|
| Number Of Teeth | 100 |
| Outside Dia. | 105 mm |
| Pitch Dia. | 80 mm |
| Precision Class | JIS N8 (JIS B1702-1:1998) |
| Pressure Angle | 20° |
| Shape | T1 |
| System Of Measurement | Metric |
Product Details
Gear
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 0.228200 |
Related Products
| Style | Model | Number Of Teeth | Face Width | Outside Dia. | Pitch Dia. | Module Pitch | Precision Class | Inside Dia. | Pressure Angle | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SI0.5-100 | 100 | 5 mm | 70 mm | 50 mm | 0.5 | JIS N8 (JIS B1702-1:1998) | 49 mm | 20° | 134.46 | |
| A | SI0.5-60 | 60 | 5 mm | 50 mm | 30 mm | 0.5 | JIS N8 (JIS B1702-1:1998) | 29 mm | 20° | 103.59 | |
| A | SI0.5-80 | 80 | 5 mm | 60 mm | 40 mm | 0.5 | JIS N8 (JIS B1702-1:1998) | 39 mm | 20° | 118.36 | |
| A | SI0.8-60 | 60 | 8 mm | 75 mm | 48 mm | 0.8 | JIS N8 (JIS B1702-1:1998) | 46.4 mm | 20° | 149.23 | |
| A | SI1-100 | 100 | 10 mm | 130 mm | 100 mm | 1 | JIS N8 (JIS B1702-1:1998) | 98 mm | 20° | 251.74 | |
| A | SI1-60 | 60 | 10 mm | 90 mm | 60 mm | 1 | JIS N8 (JIS B1702-1:1998) | 58 mm | 20° | 157.64 | |
| A | SI1-80 | 80 | 10 mm | 110 mm | 80 mm | 1 | JIS N8 (JIS B1702-1:1998) | 78 mm | 20° | 197.37 |
