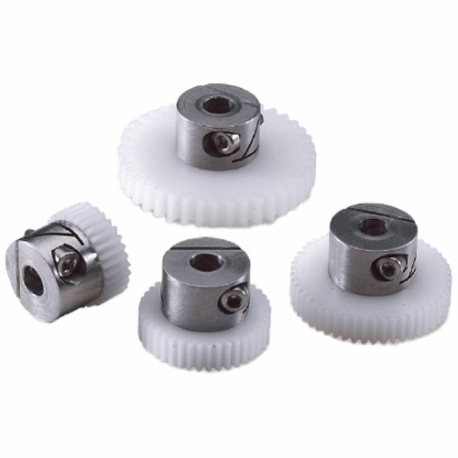

KHK GEARS DSF1-20 Spur Gear, Module, 20 Teeth, 5 mm Bore Dia, Acetal, 20 Deg Pressure Angle
Item: CR6PKM
Model: DSF1-20
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Dia. | 5 mm |
|---|---|
| Bore Dia. Tolerance | H7 |
| Bore Type | Finished |
| Face Width | 6 mm |
| Gear Shape | S1 |
| Hub Design | Hub With Clamping Lock |
| Hub Dia. | 14 mm |
| Hub Diameter | 14 mm |
| Hub Material | Stainless Steel |
| Hub Material Grade | SUS303 |
| Hub Projection | 8.5 mm |
| Includes | Hex Socket Screw |
| Material | Acetal |
| Maximum Teeth Hardness | 120 HRR |
| Metric Module Pitch | 1 |
|---|---|
| Minimum Teeth Hardness | 110 HRR |
| Module Pitch | 1 |
| Number Of Teeth | 20 |
| Outside Dia. | 22 mm |
| Overall Length | 14.5 mm |
| Pitch Dia. | 20 mm |
| Precision Class | JIS N10 (JIS B1702-1:1998) |
| Pressure Angle | 20° |
| Screw Thread Size | M2.5 |
| Shape | S1 |
| System Of Measurement | Metric |
| Tooth Hardness | 110 HRR, 120 HRR |
Product Details
Spur Gear
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 0.012600 |
Related Products
| Style | Model | Module Pitch | Number Of Teeth | Bore Dia. | Hub Design | Bore Type | Outside Dia. | Pitch Dia. | Face Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SSA1.5-100 | 1.5 | 100 | 15 mm | Hubless | Plain | 153 mm | 150 mm | 15 mm | 209.31 | |
| A | SSA1.5-20 | 1.5 | 20 | 10 mm | Hubless | Plain | 33 mm | 30 mm | - | 30.14 | |
| A | SSA1.5-24 | 1.5 | 24 | 10 mm | Hubless | Plain | 39 mm | 36 mm | 15 mm | 34.57 | |
| A | SSA1.5-25 | 1.5 | 25 | 10 mm | Hubless | Plain | 40.5 mm | 37.5 mm | 15 mm | 35.83 | |
| A | SSA1.5-30 | 1.5 | 30 | 10 mm | Hubless | Plain | 48 mm | 45 mm | 15 mm | 42.43 | |
| A | SSA1.5-32 | 1.5 | 32 | 10 mm | Hubless | Plain | 51 mm | 48 mm | 15 mm | 47.46 | |
| A | SSA1.5-35 | 1.5 | 35 | 10 mm | Hubless | Plain | 55.5 mm | 52.5 mm | 15 mm | 51.91 |
