| Combined Material & Grade | Grade Alloy Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 3/4" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C38-C43 |
| Head Dia. | 1 1/2" |
| Head Height | 1" |
| Head Type | Standard |
| Length | 5 1/2" |
| Material | Alloy Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Maximum Temperature | 400°F |
|---|---|
| Min. Tensile Strength | 170000 psi |
| Minimum Temperature | -20°F |
| Minimum Thread Length | 2 1/2" |
| Screw Length | 5 1/2" |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +400°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 2 1/2" |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |

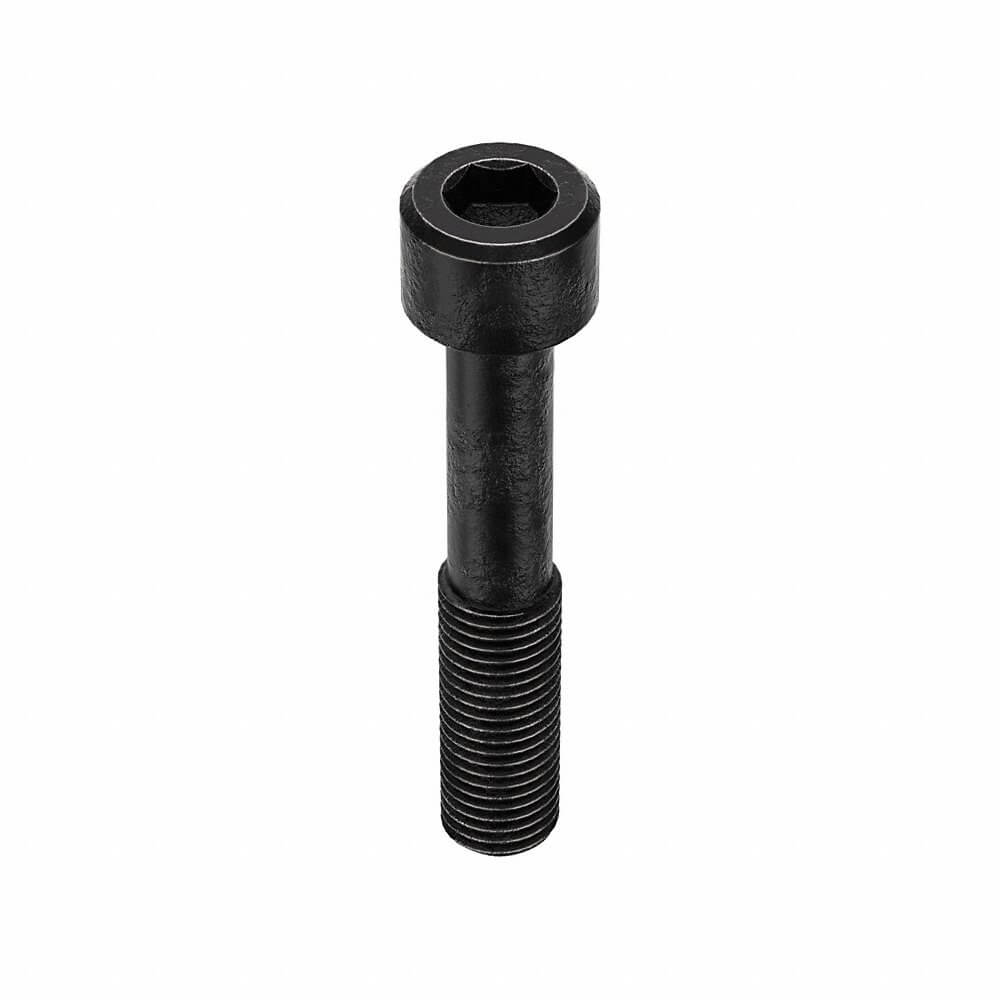

Socket Head Cap Screw
| height | 12.19 |
|---|---|
| length | 21.08 |
| width | 16.26 |
| hs code | 7318158045 |
|---|---|
| country of origin | US |
| weight | 6.930000 |
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 43F100KCS | 7/16"-20 | Fully Threaded | 3/8" | 0.656" | 0.437" | 180000 psi | Rockwell 39-45 | 0°F to +250°F | 127.42 | |
| B | M07000.060.0008 | M6 x 1 | Fully Threaded | 5 mm | 10 mm | 6 mm | 176000 psi | Rockwell C39-C44 | - | 23.20 | |
| C | M07000.060.0014 | M6 x 1 | Fully Threaded | 5 mm | 10 mm | 6 mm | 176000 psi | Rockwell C39-C44 | - | 18.99 | |
| D | U07000.007.0018 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 170000 psi | Rockwell C37-C45 | -58°F to +302°F | 39.83 | |
| E | U07000.007.0025 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 170000 psi | Rockwell C37-C45 | -58°F to +302°F | 40.69 | |
| F | U07000.007.0031 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 170000 psi | Rockwell C37-C45 | -58°F to +302°F | 39.19 | |
| F | U07000.007.0037 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 170000 psi | Rockwell C37-C45 | -58°F to +302°F | 41.11 |
