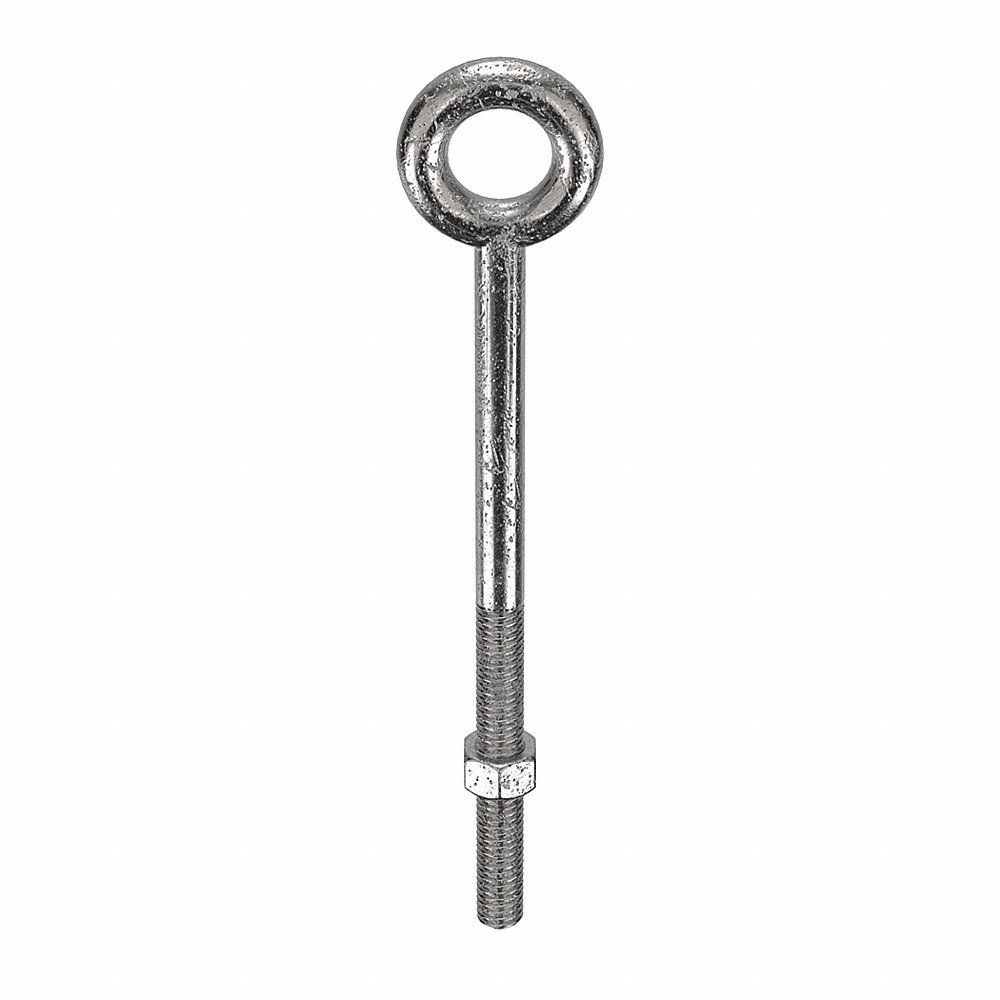

KEN FORGING N2003-316SS-6 Eye Bolt, 3/8 In - 16 Thread Size, Lift W/O Shoulder, 1200 lbs. Work Load Limit, Plain
Item: CG8WMQ
Model: N2003-316SS-6
19 In Stock
Ships within 2 days via
5.00% off
£53.53/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Eyebolt |
|---|---|
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 3/4" |
| Eye Outside Dia. | 1 1/2" |
| Finish | Plain |
| Includes Nut | Nut Included |
| Length | 7 1/2" |
| Made In North America | Made In North America |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Max Working Load | 1200 lbs. |
| Overall Length | 7 1/2" |
|---|---|
| Screw Size | 3/8" |
| Shank Dia. | 3/8" |
| Shank Length | 6" |
| Shoulder Style | Without Shoulder |
| Standard Logo | asme.png |
| System Of Measurement | Imperial |
| Thread Length | 3" |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 1200 lbs. |
Product Details
- Includes: (1) Stainless Steel Hex Nut
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.135000 |
Related Products
| Style | Model | Thread Size | Shank Length | Eye Inside Dia. | Eye Outside Dia. | Working Load Limit | Shank Dia. | Grade | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | N2001-SS-6 | 1/4"-20 | 6" | 1/2" | 1" | 500 lbs. | 1/4" | Grade 304 | 7 1/32" | 30.63 | |
| B | N2002-SS-3-1/4 | 5/16"-18 | 3 1/4" | 5/8" | 1 1/4" | 800 lbs. | 5/16" | Grade 304 | 4 17/32" | 36.18 | |
| C | N2002-SS-6 | 5/16"-18 | 6" | 5/8" | 1 1/4" | 800 lbs. | 5/16" | - | 7 9/32" | 34.48 | |
| D | N2003-SS-6 | 3/8"-16 | 6" | 3/4" | 1 1/2" | 1200 lbs. | 3/8" | - | 7 1/2" | 40.52 | |
| E | N2005-SS-4-1/2 | 1/2"-13 | 4 1/2" | 1" | 2" | 2200 lbs. | 1/2" | Grade 304 | 6 33/64" | 48.65 | |
| F | N2005-SS-12 | 1/2"-13 | - | 1" | 2" | 2200 lbs. | 1/2" | - | 14 1/32" | 62.96 | |
| G | N2007-SS-6 | 5/8"-11 | 6" | 1 3/8" | 2 1/2" | 3500 lbs. | 5/8" | Grade 304 | 8 1/2" | 68.82 |
