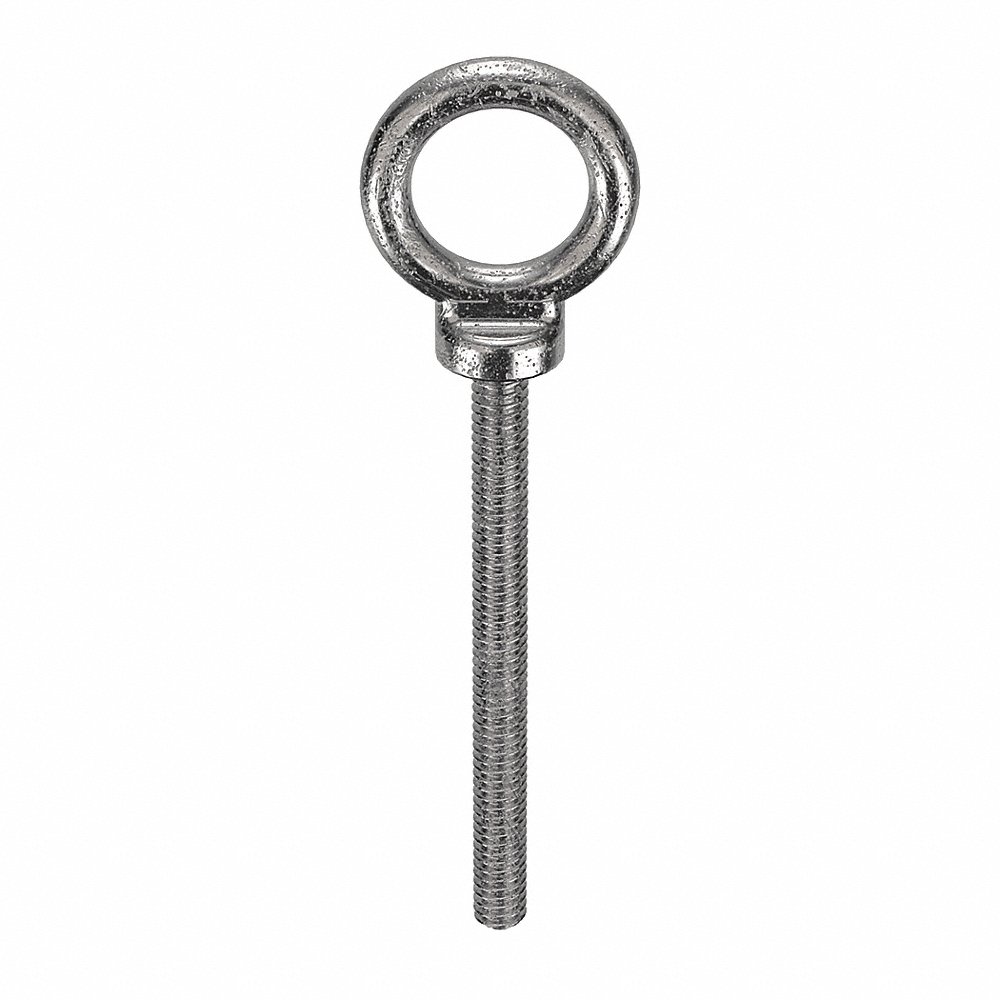

KEN FORGING K2021-3-SS Eye Bolt, 1/4 In - 20 Thread Size, Lift With Shoulder, 500 lbs. Work Load Limit, Pln, 3 In Shank Lg.
Item: CG8WJA
Model: K2021-3-SS
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹39.510000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Lifting |
|---|---|
| Eye Closure | Closed |
| Eye Inside Diameter | 3/4" |
| Eye Outside Diameter | 1 3/16" |
| Grade | Grade 304 , Stainless Steel |
| Includes Nut | Nut Not Included |
| Made In North America | Made In North America |
| Material Grade/class | Grade 304 |
| Max Working Load | 500 lbs. |
| Min. Tensile Strength | 75000 psi |
| Overall Length | 4 31/64" |
| Screw Size | 1/4" |
|---|---|
| Shank Diameter | 1/4" |
| Shoulder Diameter | 17/32" |
| Shoulder Style | With Shoulder |
| Standard Logo | asme.png |
| System Of Measurement | Imperial |
| Tensile Strength | 75000 psi |
| Thread Length | 3" |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
Product Details
Eyebolt
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.013500 |
Related Products
| Style | Model | Thread Size | Shank Length | Eye Inside Dia. | Eye Outside Dia. | Working Load Limit | Application | Thread Type | Shank Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RB580X10-001P2 | M10 x 1.5 | 17 mm | 25 mm | - | 506 lbs. | Lifting | Coarse | 10 mm | 48.93 | |
| B | RB580X12-001P2 | M12 x 1.75 | 20.5 mm | 30 mm | 54 mm | 748 lbs. | Lifting | Coarse | 12 mm | 54.04 | |
| C | RB580X16-001P2 | M16 x 2 | 27 mm | 35 mm | 63 mm | - | Lifting | Coarse | 16 mm | 104.49 | |
| D | RB580X20-001P2 | M20 x 2.5 | - | - | - | - | Lifting | Coarse | 20 mm | 121.97 | |
| E | M51940.080.0001 | M8 x 1.25 | 13 mm | 20 mm | 36 mm | 140 lbs. | Routing | Coarse | 8 mm | 9.61 | |
| F | M51940.120.0001 | M12 x 1.75 | 20.5 mm | 30 mm | 54 mm | 339 lbs. | Routing | Coarse | 12 mm | 52.99 | |
| G | K2021-316SS-BLANK | Unthreaded | 1" | 3/4" | 1 3/16" | - | - | Not Applicable | 1/4" | 26.87 |
