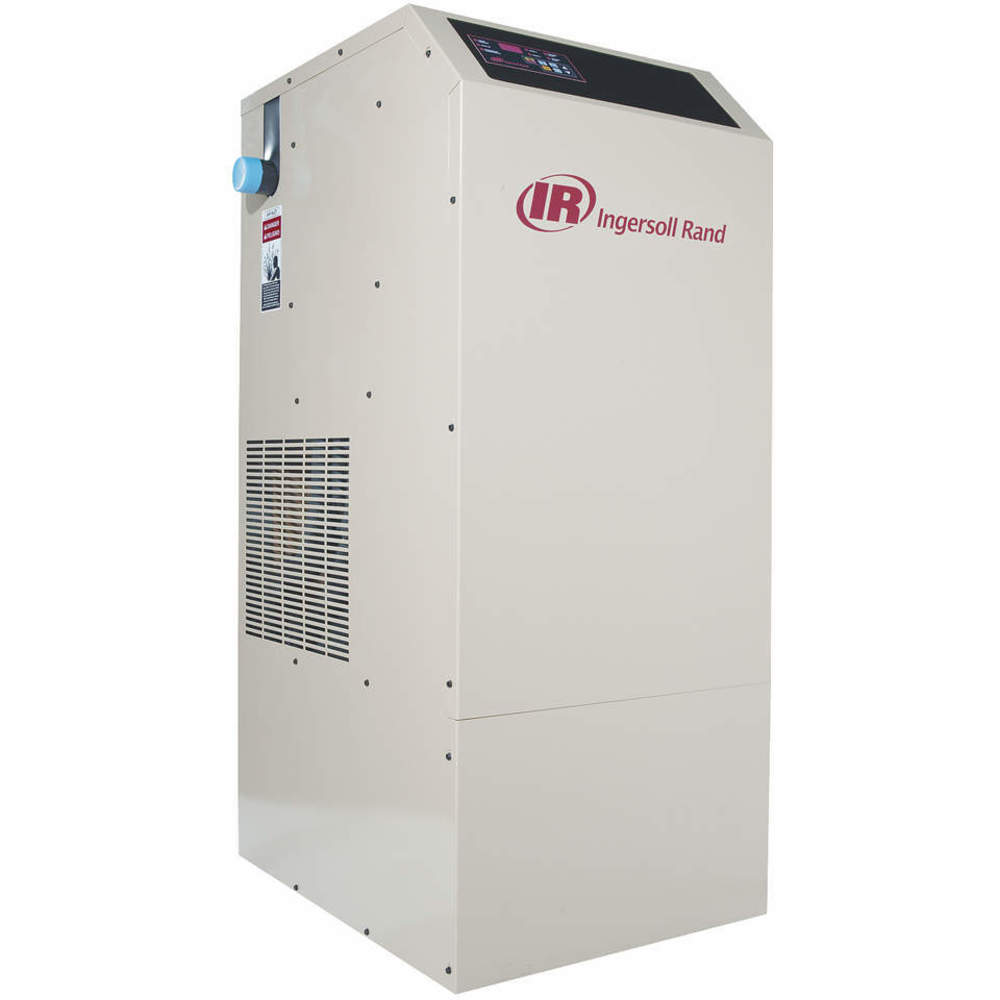

INGERSOLL-RAND D680INA400 Compressed Air Dryer 400 Cfm 75 Hp 460v
Item: AD8YQM
Model: D680INA400
In Stock
Get it by Wednesday, Apr 15
5.00% off
£22445.35/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Air Inlet Gender | Female |
|---|---|
| Air Inlet Size | 2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 2" |
| Air Outlet Type | NPT |
| Cfm | 400 CFM |
| Cycling Type | Non Cycling |
| Drain Included | Yes |
| Drain Type | Auto Drain |
| Filter Included | Yes |
| Finish | Powder Coated |
| Full Load Amps | 12A |
| Heat Exchanger Material | Stainless Steel |
| Includes | Panel Filter |
| Input Voltage | 460V AC |
| Iso Class | 4 |
| Max. Air Compressor Hp | 75 hp |
| Max. Ambient Temp. | 120°F |
|---|---|
| Max. Inlet Temp. | 120°F |
| Max. Pressure | 300 psi |
| Maximum Ambient Temperature | 100°F |
| Maximum Flow | 400 CFM |
| Maximum Incoming Pressure | 300 psi |
| Minimum Flow Rate | 25 CFM |
| Overall Depth | 33" |
| Overall Height | 40" |
| Overall Width | 28" |
| Phase | 3 |
| Power | 3.48 kW |
| Pressure Drop | 3.5 psid |
| Refrigerant | R-404A |
| Refrigeration Compressor Horsepower | 2.5 hp |
| Series | NON-CYCLING REFRIGERATED Series |
| Voltage | 460V AC |
Product Details
Compressed Air Dryer
Shipping Information
| height | 101.6 |
|---|---|
| length | 83.82 |
| width | 71.12 |
| hs code | 8419899540 |
|---|---|
| country of origin | US |
| weight | 172.350000 |
Related Products
| Style | Model | Voltage | Air Inlet Size | Iso Class | Full Load Amps | Pressure Drop | Max. Ambient Temp. | Phase | Cfm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HLA1201H00AA | - | - | - | 4A | 3 psi | 120°F | 1 | 120 CFM | 15,845.89 | |
| A | HLA1601H00AA | 115V | 1 1/2" | Class 2 | 4A | 3 psi | 120°F | 1 | 160 CFM | 17,736.33 | |
| A | HLA2001H00AA | - | - | - | 4A | 3 psi | 120°F | 1 | 200 CFM | 16,717.38 | |
| A | HLA2501H00AA | 115V | 1 1/2" | Class 2 | 4A | 3 psi | 120°F | 1 | 250 CFM | 17,005.49 | |
| A | HLA3001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 300 CFM | 20,019.08 | |
| B | HLA4001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 400 CFM | 22,600.64 | |
| A | HLA5001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 500 CFM | 26,990.24 |
