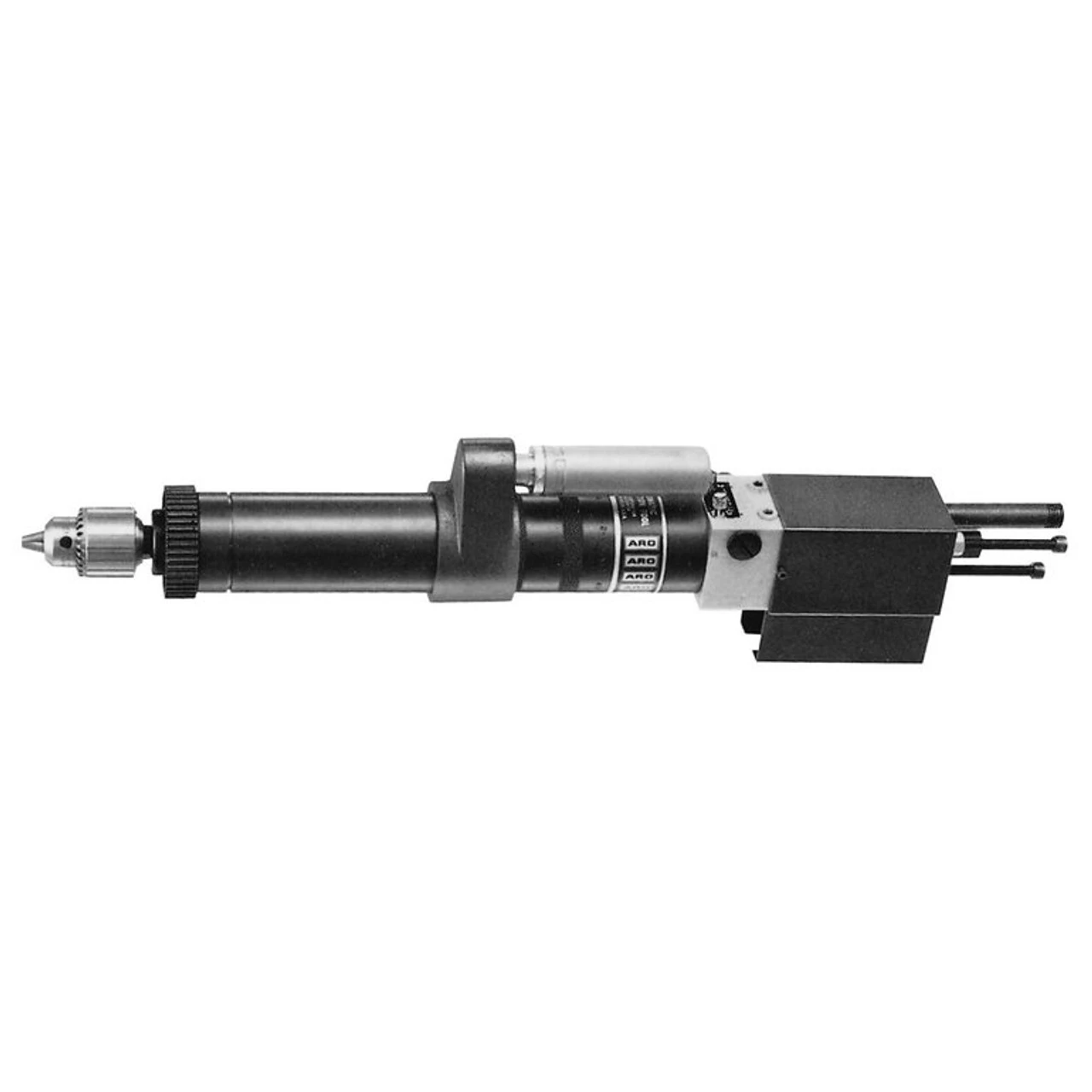

INGERSOLL-RAND 8255-A21-1 Drill, 3/8 Inch Chuck Size, Industrial Duty, 2, 100 Rpm Free Speed, 0.5 Hp, Keyed, Ball
Item: CR4PDT
Model: 8255-A21-1
18 In Stock
Ships within 2 days via
5.00% off
£5610.11/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Air Consumption | 23 CFM |
|---|---|
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Application | Secondary Machining Applications |
| Bearing Design | Ball |
| Bearings | Ball |
| Body Style | Inline |
| Chuck Material | Metal, Plastic |
| Chuck Size | 3/8" |
| Chuck Type | Keyed |
| Drill Chuck Type | Keyed |
| Drilling Capacity In Aluminum | 9/32" |
| Drilling Capacity In Steel | 0.219" |
| Drilling Capacity In Wood | 5/16" |
| Duty Cycle | Industrial Duty |
| Duty Rating | Industrial |
| Free Speed | 2100 RPM |
| Gear Train | Planetary |
|---|---|
| Handle Type | Inline |
| Housing Material | Metal |
| Hp | 1/2 hp |
| Includes | 3/8" Capacity Chuck, Pneumatic Controls Interface Kit |
| Minimum Hose Size | 5/16" |
| Noise Level | 74 dBA |
| Overall Height | 6 1/8" |
| Overall Length | 20" |
| Overall Width | 5 3/4" |
| Power Source | Air Power |
| Required Pressure | 90 psi |
| Reversible | Yes |
| Reversing | Yes |
| Stroke Length | 1 1/4" |
| Throttle Type | Needle Valve Control |
| Tool Weight | 10 lbs. |
| Variable Speed | No |
Product Details
Shipping Information
| Height | 15.57 |
|---|---|
| Length | 50.8 |
| Width | 14.6 |
| Country Of Origin | US |
|---|---|
| Weight | 3.915000 |
Related Products
| Style | Model | Free Speed | Drilling Capacity In Steel | Drilling Capacity In Aluminum | Drilling Capacity In Wood | Stroke Length | Gear Train | Handle Type | Reversible | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 8255-A14-2 | 1400 RPM | 1/4" | 5/16" | 3/8" | 2" | Two Step Planetary | Inline | Yes | 5,562.66 | |
| B | 8255-A14-3 | 1400 RPM | 1/4" | 5/16" | 1/6" | 3" | Two Step Planetary | Inline | Yes | 5,152.32 | |
| C | 8255-A21-3 | 2100 RPM | 0.219" | 9/32" | 5/16" | 3" | Planetary | Inline | Yes | 5,010.78 | |
| D | 8255-A28-2 | 2800 RPM | 0.141" | 1/4" | 1/4" | 2" | Planetary | Inline | Yes | 5,212.09 | |
| B | 8255-A28-1 | 2800 RPM | 0.141" | 1/4" | 1/4" | 1 1/4" | Planetary | Inline | Yes | 5,018.91 | |
| E | 8255-A50-2 | 5000 RPM | 0.078" | 3/16" | 3/16" | 2" | Planetary | Inline | Yes | 5,163.58 | |
| B | 8255-A50-1 | 5000 RPM | 0.078" | 3/16" | 3/16" | 1 1/4" | Planetary | Inline | Yes | 4,999.11 |
