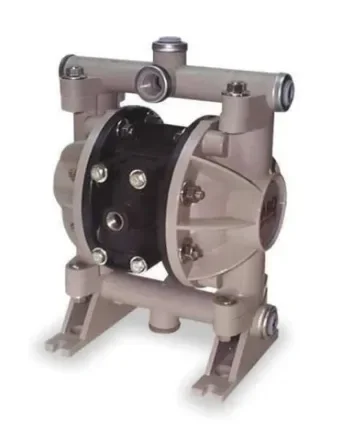

INGERSOLL-RAND 66605J-34B Diaphragm Pump, Polypropylene, 1/2 Inch Fluid Connection Size

Item: BP6YEN
Model: 66605J-34B
18 In Stock

Ships within 2 days via

£2002.13
5.00% off
£1902.02/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Air Inlet Type NPT
Check Seat Material Polypropylene
Diaphragm Material Santoprene
Display Qty 1
Flow Rate @ 100 Psi 13 GPM
Flow Rate @ 40 Psi 9.5 GPM
Flow Rate @ 70 Psi 12 GPM
Fluid Intake Connection 1/2" Nptf
Fluid Outlet Connection 1/2" Nptf
Housing Material Polypropylene
Includes Muffler
Manifold Connection Multiport
Manifold Connection Type NPT
Max. Discharge Pressure 100 psi
Max. Flow Rate 13 GPM
Max. Media Temperature 225°F
Max. Solid Dia. 0.09"
Media Discharge Location Side
Media Intake Location Bottom
Mounting Hardware Material Stainless Steel
Overall Height 11.3"
Overall Length 8.5"
Overall Width 6 2/5"
Power Source Air
Priming Self Priming
Pump Assembly Type Bolt
Rated Air Pressure 100 psi
Series 66605 Series
Standards Ansi S1.13-1971, Cagi-Pneurop S5.1
Valve Material PTFE
Valve Type Ball

Product Details

Shipping Information

Height 28.7
Length 21.59
Width 16.26
Country Of Origin US
Weight 4.662000
