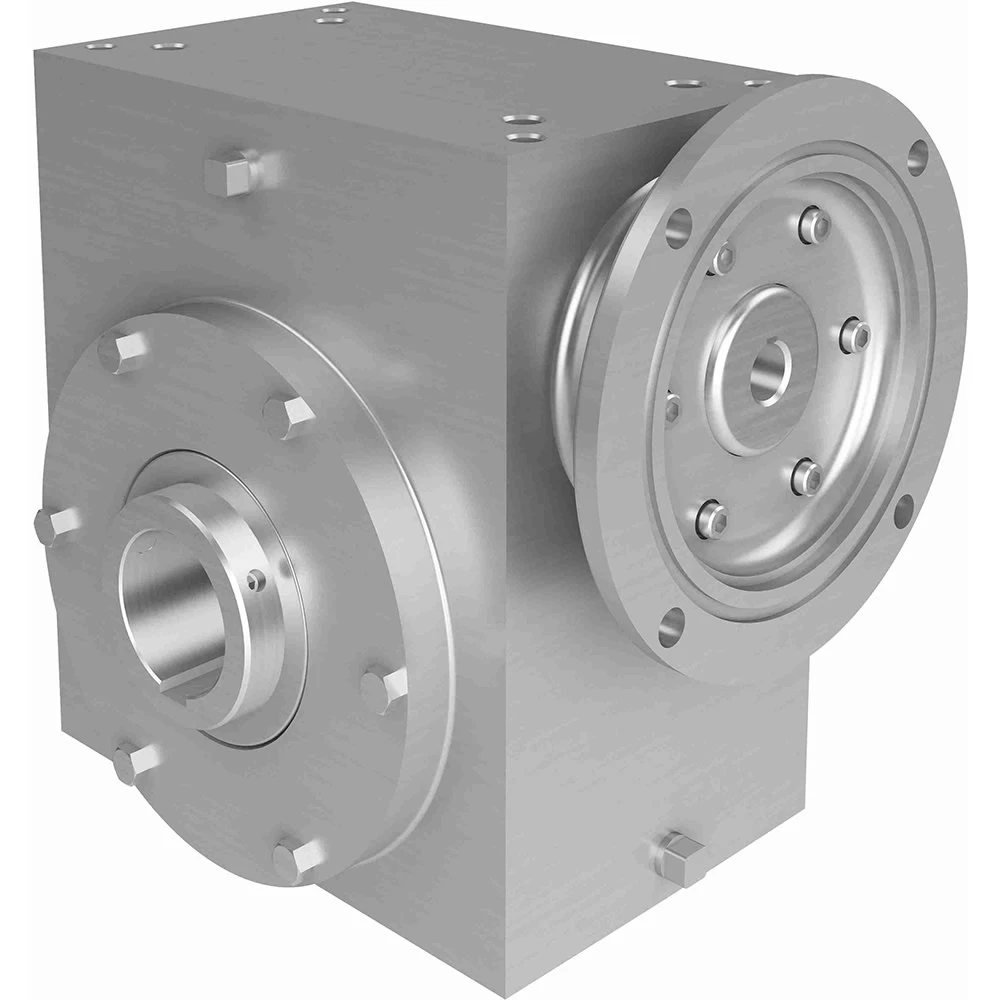

HUB CITY 0270-09458 Worm Reducer, 2.462 Hp, 1.438 Inch I.D, 0.875 Inch O.D, Stainless Steel
Item: AN8ARP
Model: 0270-09458
In Stock
Get it by Thursday, Apr 16
£5119.39/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3 1/4" |
|---|---|
| Center Distance Range | Above 3.25" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 2.462 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.438" |
| Output Rpm | 35 RPM |
|---|---|
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 50:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 3315 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 38.1 |
|---|---|
| length | 50.8 |
| width | 38.1 |
|---|---|
| weight | 35.550000 |
Related Products
| Style | Model | max. input hp | input style | ratio | center distance | output | output diameter | motor frame size | output rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-09576 | 3.619 hp | C Face Quill | 30:1 | 3 1/4" | - | - | - | 58.3 RPM | 4,311.64 | |
| B | 0270-09589 | 2.926 hp | C Face Quill | 40:1 | 3 1/4" | - | - | - | 43.75 RPM | 4,311.64 | |
| C | 0270-09664 | 1.03 hp | C Face Quill | 80:1 | 3 1/4" | - | - | - | 21.9 RPM | 4,311.64 | |
| D | 0270-09680 | - | C Face Quill | 10:1 | 3 1/4" | 175 RPM | 2.188" | 180TC | - | - |
RFQ
|
| E | 0270-09869 | 0.691 hp | C Face Quill | 100:1 | 3 1/4" | - | - | - | 17.5 RPM | 4,266.16 | |
| F | 0270-10122 | - | C Face Quill | 5:1 | 3 1/4" | 350 RPM | 1 1/2" | 180TC | - | - |
RFQ
|
| G | 0270-09893 | - | C Face Quill | 100:1 | 3 1/4" | 17.5 RPM | 1.688" | 56C | - | - |
RFQ
|
