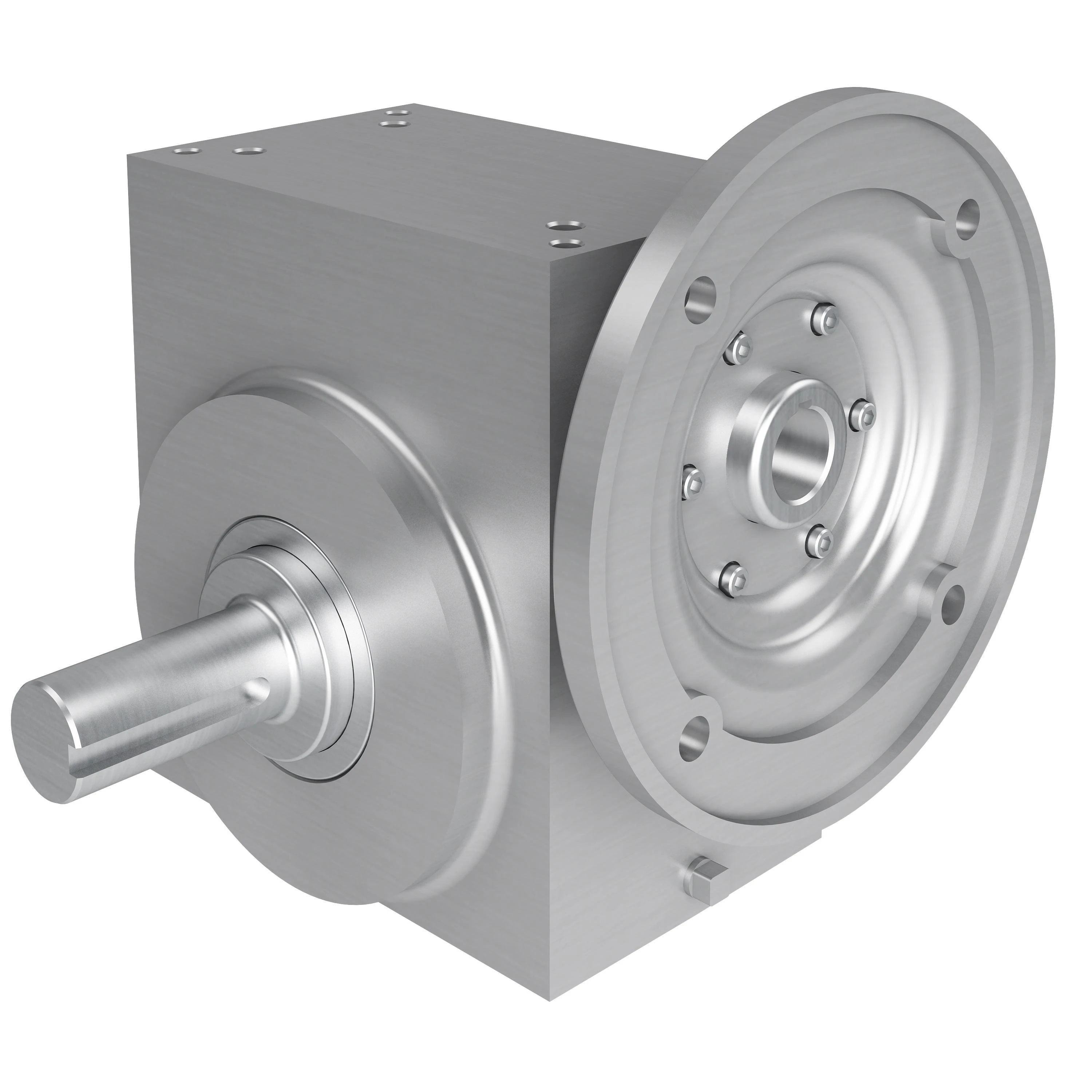

HUB CITY 0270-09236 Worm Reducer, 8.092 Hp, 1.500 Inch I.D, 1.125 Inch O.D, Stainless Steel
Item: AX7NTF
Model: 0270-09236
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3 1/4" |
|---|---|
| Center Distance Range | Above 3.25" |
| Frame Size | 180TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 7 1/2 hp to 10 hp |
| Input Dia. | 1 1/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 8.092 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Rpm | 175 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 2700 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 38.1 |
|---|---|
| length | 50.8 |
| width | 38.1 |
|---|---|
| weight | 35.550000 |
Related Products
| Style | Model | max. input hp | center distance | input style | ratio | output | motor frame size | output rpm | frame size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-09171 | 2.114 hp | 3 1/4" | C Face Quill | 60:1 | - | - | 29.2 RPM | 56C | 3,099.13 | |
| B | 0270-09183 | 2.114 hp | 3 1/4" | C Face Quill | 60:1 | - | - | 29.2 RPM | 56C | 3,099.13 | |
| C | 0270-09162 | - | 3 1/4" | C Face Quill | 5:1 | 350 RPM | 56C | - | - | - |
RFQ
|
| D | 0270-09161 | - | 3 1/4" | C Face Quill | 100:1 | 17.5 RPM | 56C | - | - | - |
RFQ
|
| C | 0270-09166 | - | 3 1/4" | C Face Quill | 20:1 | 87.5 RPM | 56C | - | - | - |
RFQ
|
| D | 0270-09197 | - | 3 1/4" | C Face Quill | 100:1 | 17.5 RPM | 140TC | - | - | - |
RFQ
|
| C | 0270-09204 | - | 3 1/4" | C Face Quill | 30:1 | 58.3 RPM | 140TC | - | - | - |
RFQ
|
