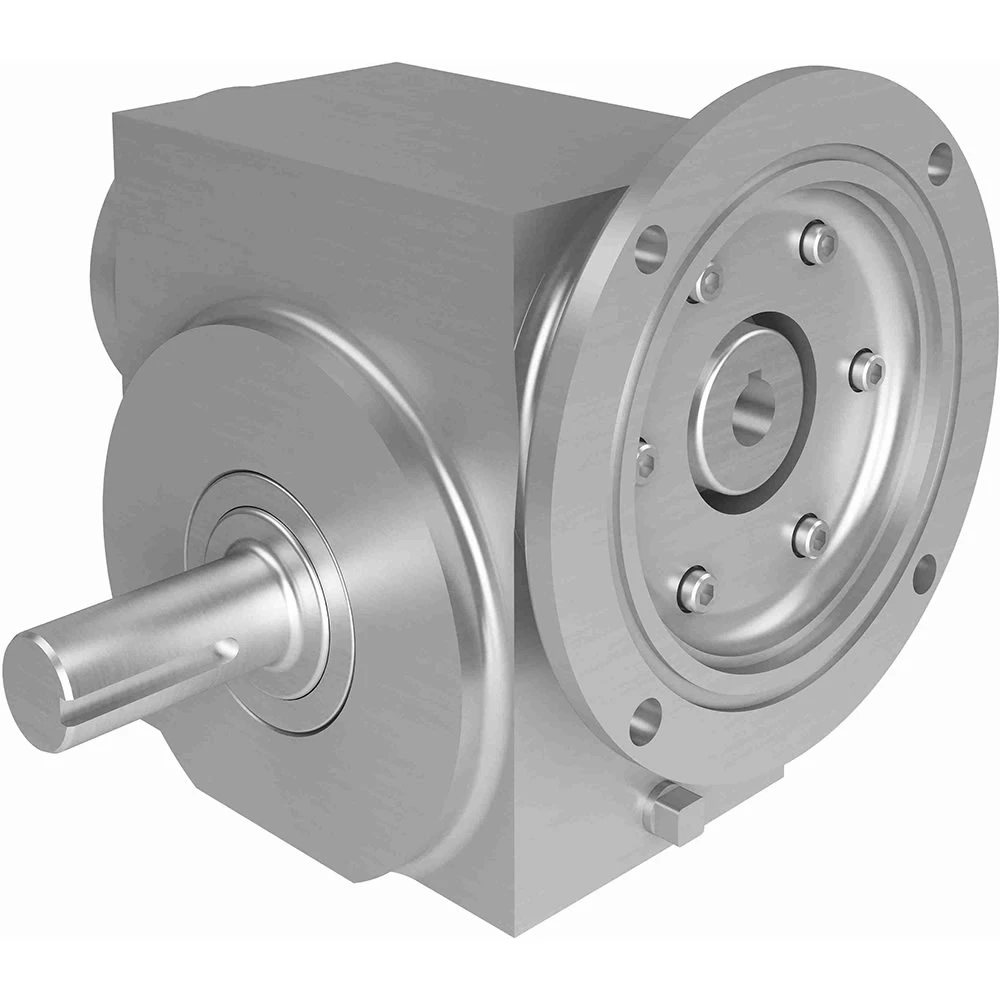

HUB CITY 0270-08618 Worm Reducer, 1.653 Hp, 1.125 Inch I.D, 0.625 Inch O.D, Stainless Steel
Item: AX8VRG
Model: 0270-08618
In Stock
Get it by Wednesday, Apr 15
£2332.2/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.38" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 1.653 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/8" |
| Output Rpm | 58.3 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Overhung Load | 1400 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 30:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 1423 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 27.94 |
|---|---|
| length | 27.94 |
| width | 22.86 |
|---|---|
| weight | 21.150000 |
Related Products
| Style | Model | max. input hp | ratio | motor frame size | output | output rpm | gear type | center distance | input style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-08619 | 1.342 hp | 40:1 | - | - | 43.75 RPM | Worm Right Angle | 2.38" | C Face Quill | 1,943.50 | |
| B | 0270-08630 | 1.653 hp | 30:1 | - | - | 58.3 RPM | Worm Right Angle | 2.38" | C Face Quill | 1,943.50 | |
| C | 0270-08631 | 1.342 hp | 40:1 | - | - | 43.75 RPM | Worm Right Angle | 2.38" | C Face Quill | 1,943.50 | |
| D | 0270-08633 | 0.967 hp | 60:1 | - | - | 29.2 RPM | Worm Right Angle | 2.38" | C Face Quill | 1,943.50 | |
| E | 0270-08689 | - | 25:1 | 180TC | 70 RPM | - | Worm Right Angle | 2.38" | C Face Quill | - |
RFQ
|
| F | 0270-08650 | - | 10:1 | 140TC | 175 RPM | - | Worm Right Angle | 2.38" | C Face Quill | - |
RFQ
|
| G | 0270-08674 | - | 10:1 | 180TC | 175 RPM | - | Worm Right Angle | 2.38" | C Face Quill | - |
RFQ
|
